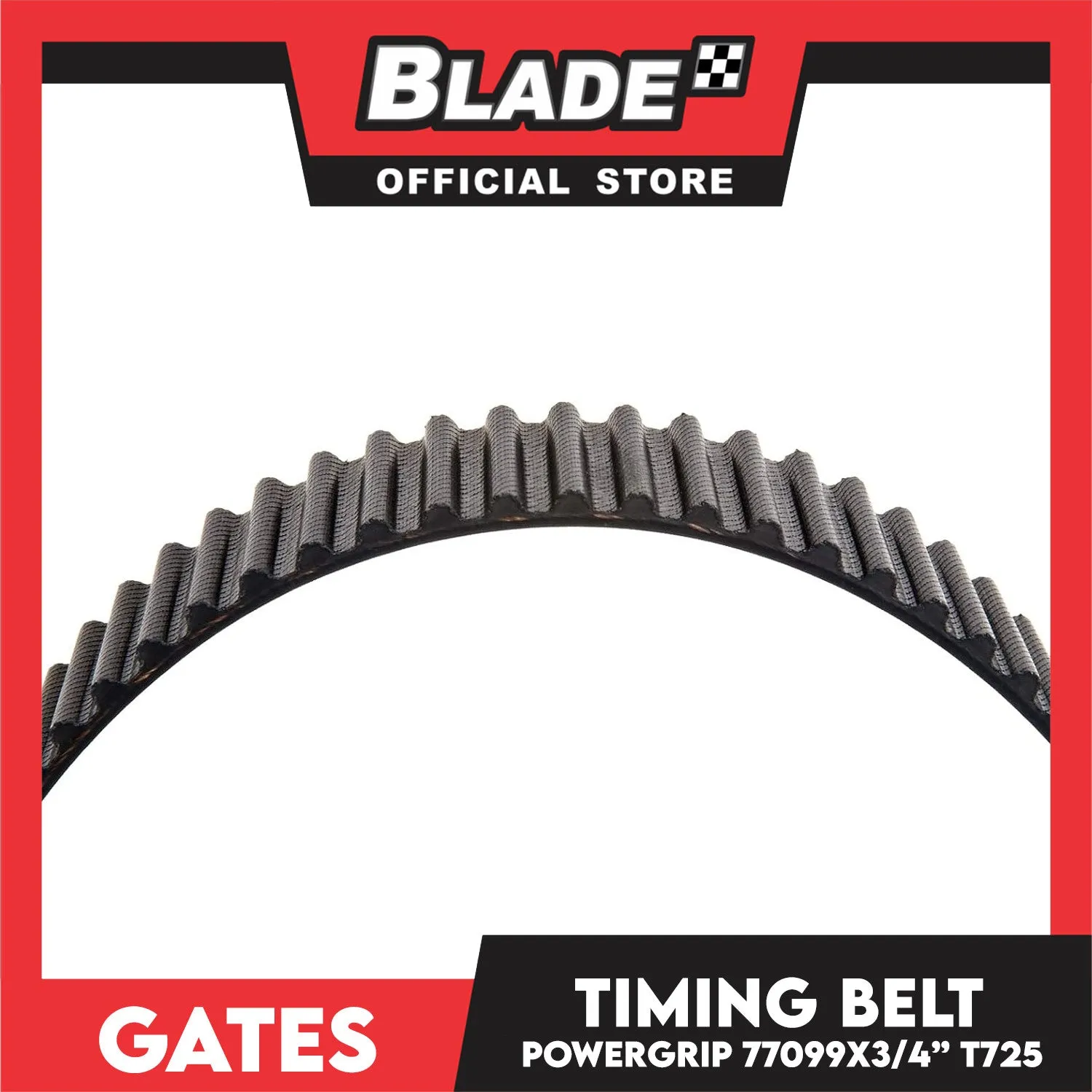

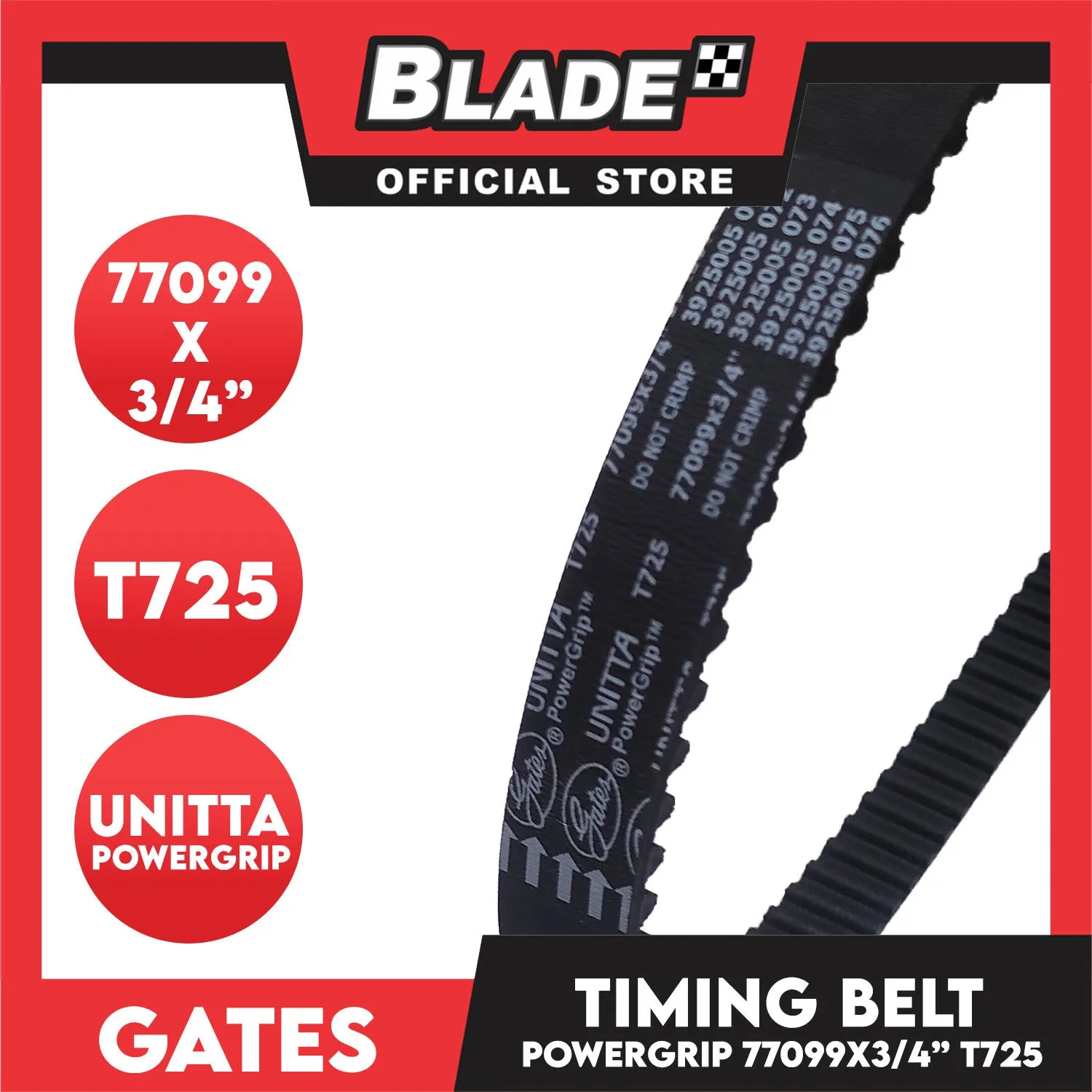

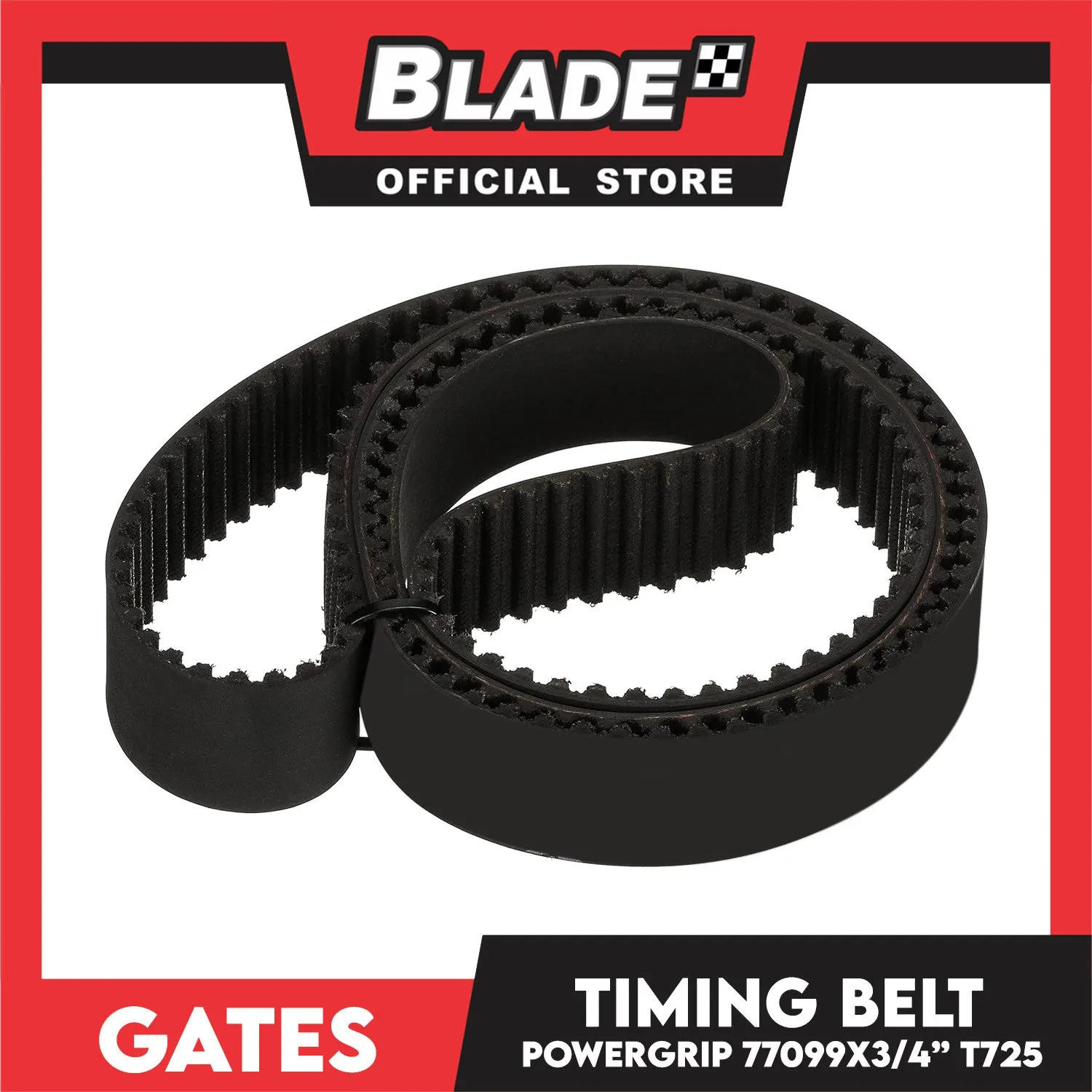

• Part No: T725
• Material: Polychloropren (neoprene)
• Colour: Black
• Number of teeth: 99
• Width (mm): 19
• Length (mm): 792
• Qty: 1pc



• PTFE-infused jackets to reduce frictional losses and tooth shear.
• High grade HNBR rubber for superior heat and contamination resistance.
• Premium tensile members providing maximum strength.
• Aramid reinforced nylon jackets and backsides increase durability and lifetime.
• Genuine warranty equal to OE replacement interval.



• Suitable with:
• HYUNDAI
• GALLOPER
•  Diesel 2.5L/77KW 2.5 TCi D D4BH JK-01 All-wheel Drive Closed Off-Road Vehicle (08/98-12/03)
•  Diesel 2.5L/65KW 2.5 TD D4BA JK-01 All-wheel Drive Closed Off-Road Vehicle (08/98-12/03)
•  Diesel 2.5L/73KW 2.5 TD intercooler D4BH JK-01 All-wheel Drive Closed Off-Road Vehicle (08/98-12/03)



• GRAND STAREX
•  Diesel 2.5L/74KW 2.5 TDCi D4BH TQ Rear-Wheel Drive Bus (09/07-on)



• H-1
•  Diesel 2.5L/73KW 2.5 D D4BH A1 Rear-Wheel Drive Platform/Chassis (06/00-10/06)
•  Diesel 2.5L/74KW 2.5 TDCi D4BH TQ Rear-Wheel Drive Van (09/07-on)



• H-1 / STAREX
•  Diesel 2.5L/74KW 2.5 TCi D4BH A1 Rear-Wheel Drive Bus (05/04-12/07)
•  Diesel 2.5L/57KW 2.5 D D4BH,D4BF A1 Rear-Wheel Drive Bus (10/97-04/04)



• H100
•  Diesel 2.6L/58KW 2.6 D D4BB HR Rear-Wheel Drive Platform/Chassis (01/04-on)
•  Diesel 2.5L/59KW 2.5 D D4BF A1 Rear-Wheel Drive Platform/Chassis (05/96-12/97)
•  Diesel 2.6L/63KW 2.6 TD D4BB Rear-Wheel Drive Platform/Chassis (05/96-12/97)
•  Diesel 2.5L/59KW 2.5 TD D4BF P Rear-Wheel Drive Bus (07/93-03/00)
•  Diesel 2.5L/57KW 2.5 D D4BA Rear-Wheel Drive Van (07/94-04/04)
•  Diesel 2.6L/57KW 2.6 D D4BB P Rear-Wheel Drive Bus (10/99-10/04)
•  Diesel 2.5L/74KW 2.5 TD 4D56-T HR Rear-Wheel Drive Platform/Chassis (11/06-on)
•  Diesel 2.5L/57KW 2.5 D D4BA P Rear-Wheel Drive Bus (12/94-03/00)



• PORTER
•  Diesel 2.6L/61KW 2.6 TD D4BB Rear-Wheel Drive Platform/Chassis (01/01-12/04)
•  Diesel 2.5L/57KW 2.5 TD D4BA Rear-Wheel Drive Platform/Chassis (07/94-04/04)
•  Diesel 2.6L/63KW 2.6 TD D4BB Rear-Wheel Drive Platform/Chassis (07/94-04/04)



• STAREX
•  Diesel 2.5L/59KW 2.5 TD 4WD D4BF A1 All-wheel Drive Bus (02/98-04/04)
•  Diesel 2.5L/59KW 2.5 TD D4BF A1 Rear-Wheel Drive Bus (06/97-04/04)
•  Diesel 2.5L/73KW 2.5 TCi D4BH A1 Rear-Wheel Drive Bus (10/97-12/07)



• Caution:
• Before any service work on the belt is begun to be sure that the motor or engine is switched off and cannot be started.



• Important:
• Check for worn tensioners and idler pulleys. This is the best time to replace these part these parts if needed.



• Belt Removal:
• Loosen adjustment or pivot bolts.
• Move adjustment unit to minimum position.
• Remove belt.



• Belt Installation:
• Place new belt loosely on pulleys. Do not pry onto pulleys.
• Tension belt according to manufacturer's instruction.
• Run drive 5 minutes and retension. Belts must be tight enough to prevent slipping when drive is fully loaded.
