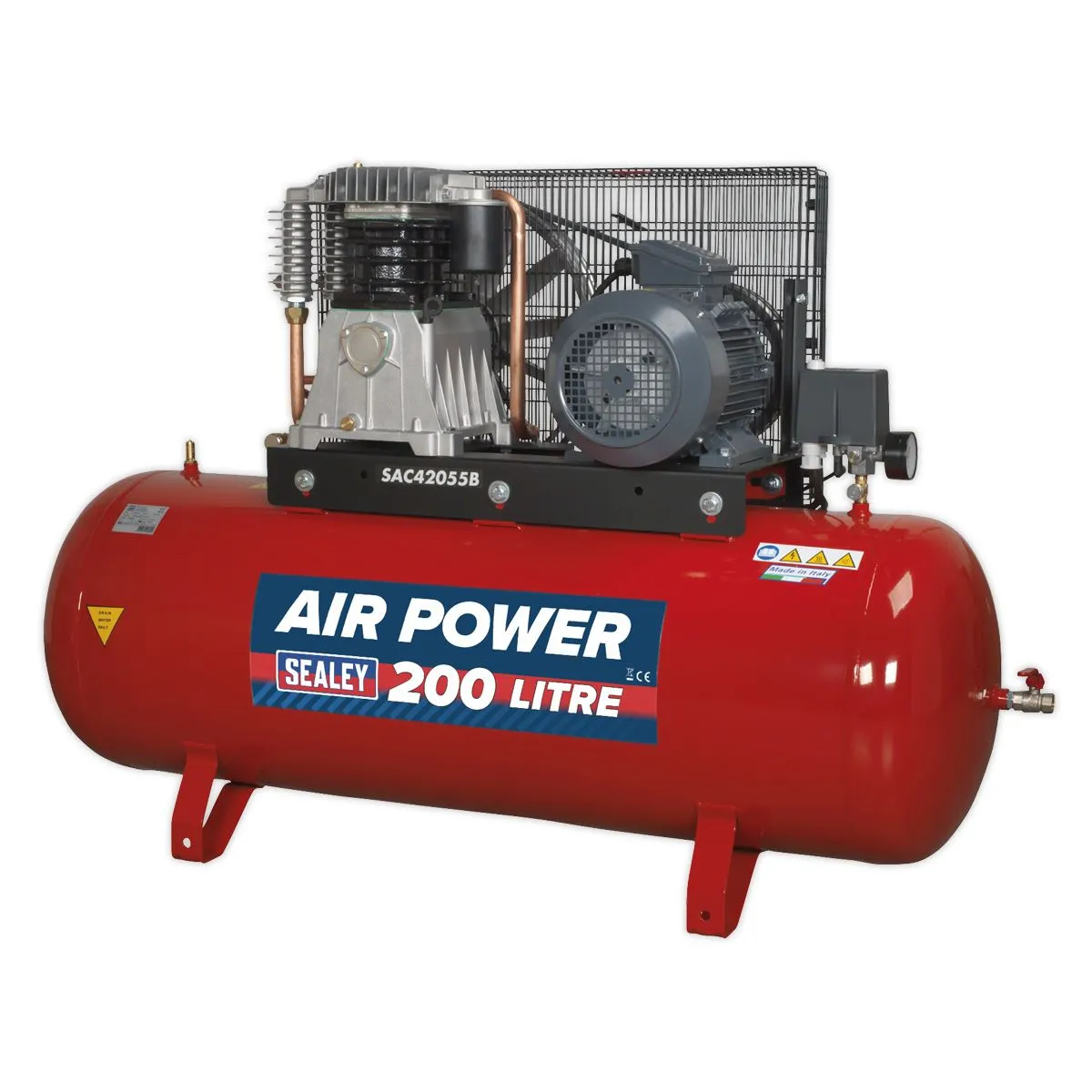

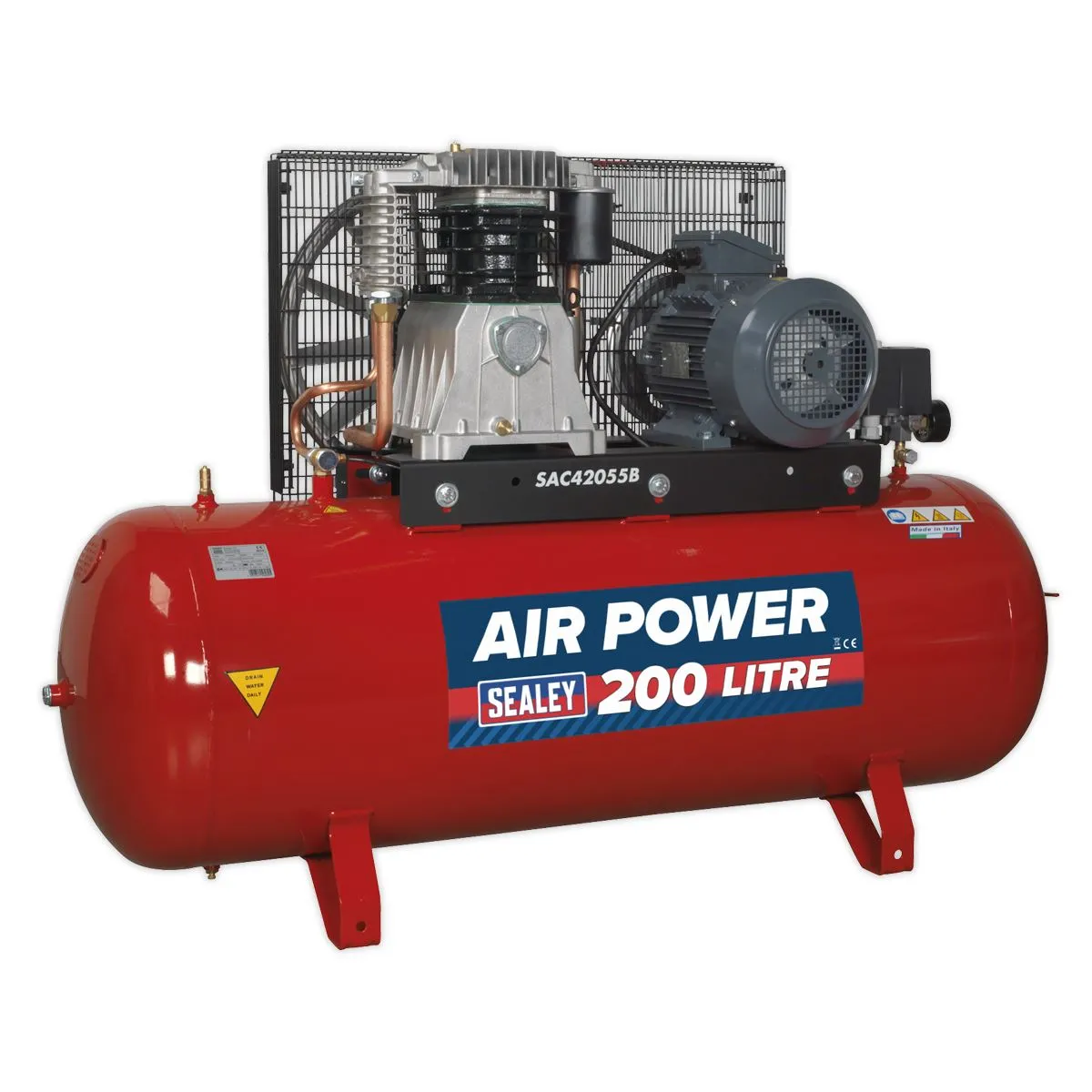

Sealey 200L Belt Drive Air Compressor with Cast Cylinders 5.5hp 3ph 2-Stage

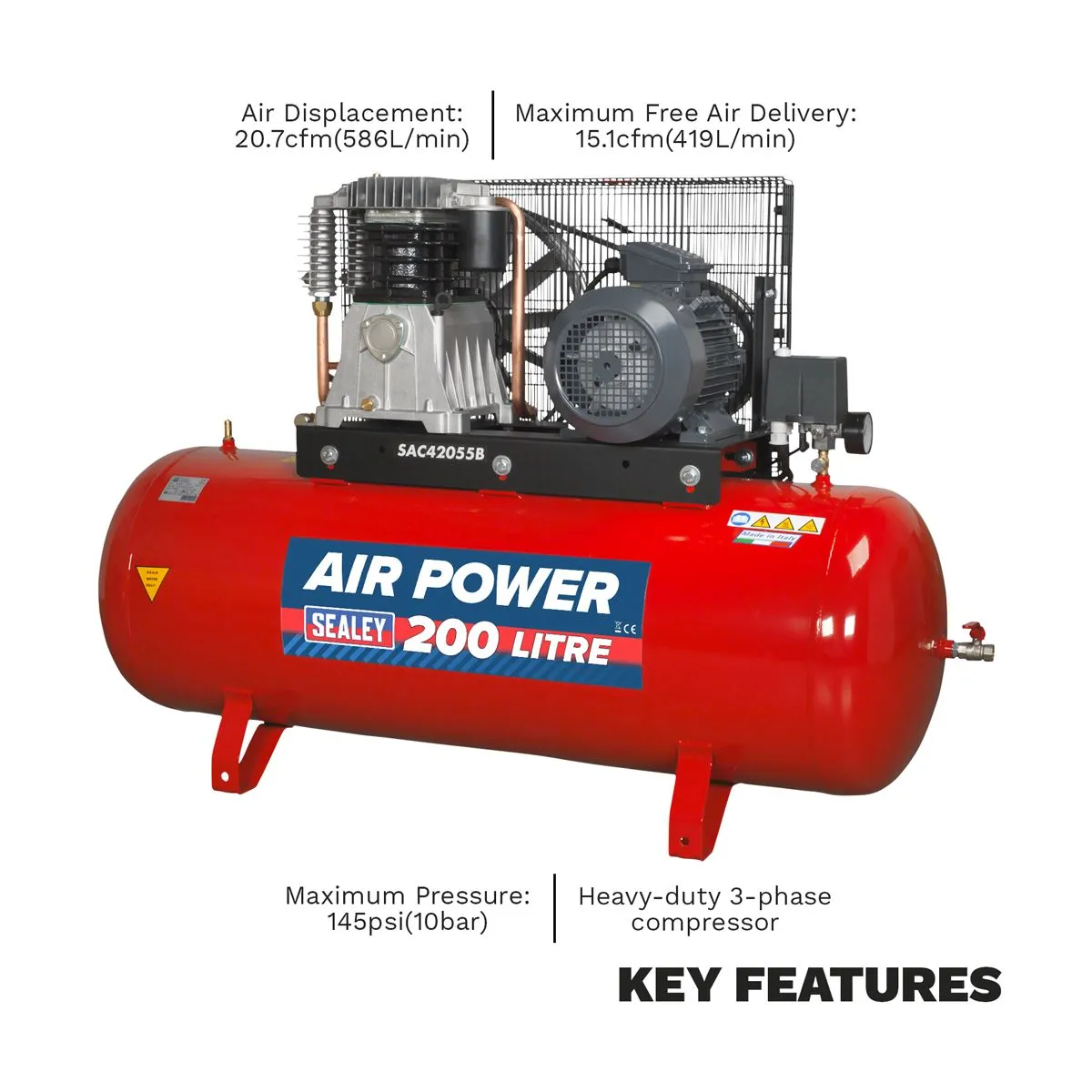

Air Displacement: 20.7cfm(586L/min).
Maximum Free Air Delivery: 15.1cfm(419L/min).
Maximum Pressure: 145psi(10bar).
Heavy-duty 3-phase compressors suitable for the professional workshop.

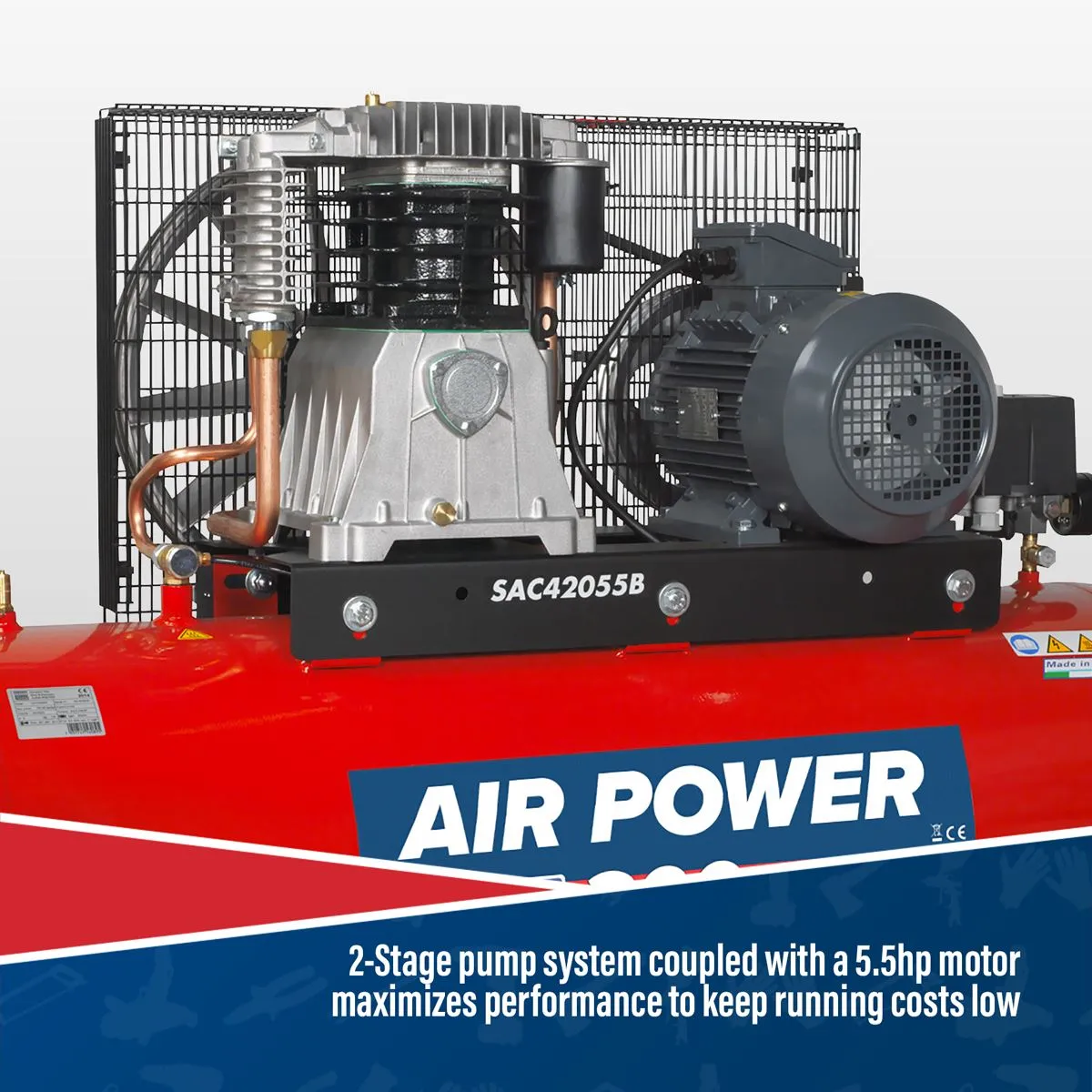

2-Stage pump system coupled with a 5.5hp motor maximizes performance to keep running costs low compared to single stage single phase model.

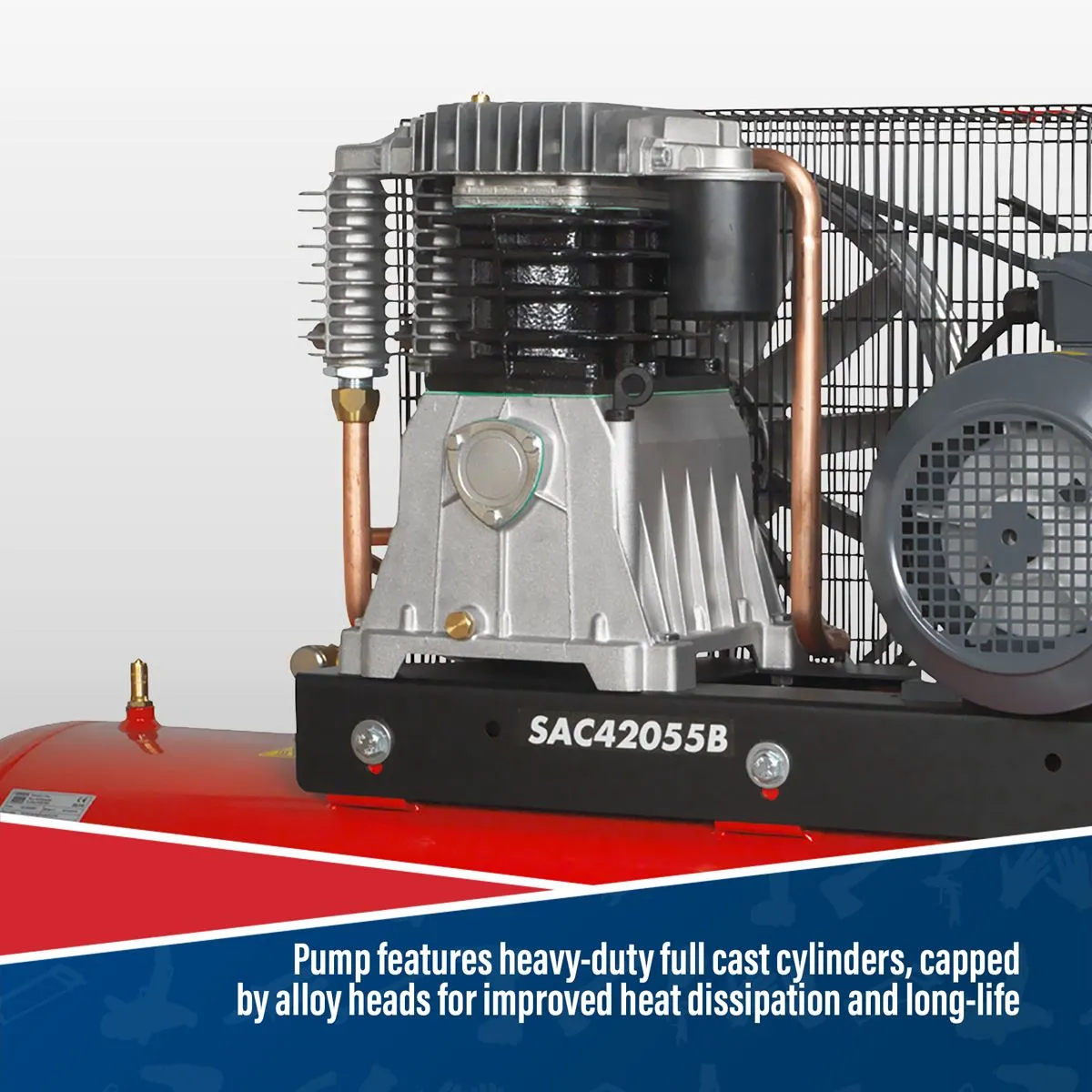

Pump features heavy-duty full cast cylinders, capped by alloy heads for improved heat dissipation and long-life.

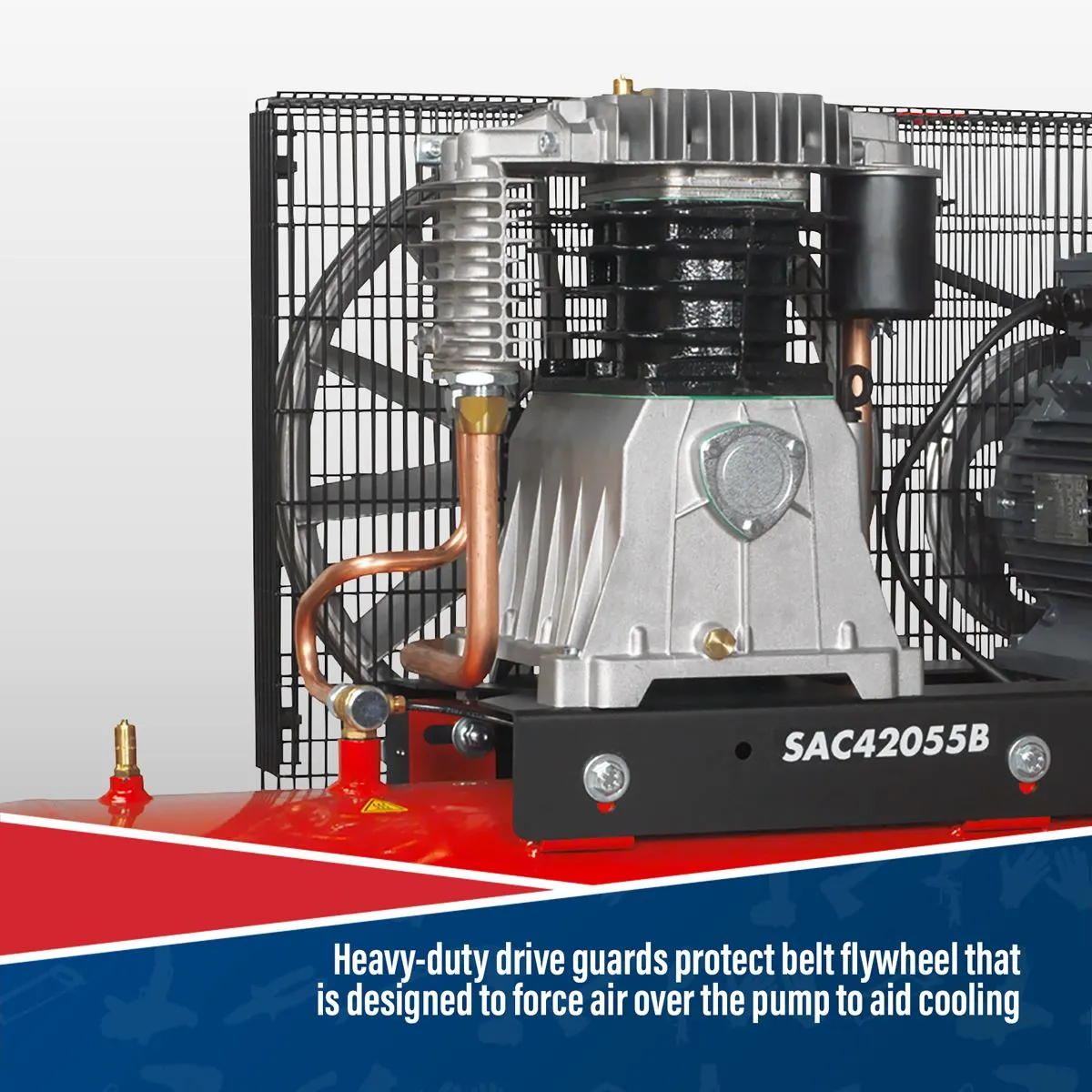

Heavy-duty drive guards protect belt and flywheel that is designed to force air over the pump to aid cooling.
Supplied with full CE certification, test certificates and operating/maintenance manual.
This item is heavy. Extra assistance must be provided at the delivery point to help its safe delivery.
Specification:
- Model No SAC42055B
- Air Displacement cfm(L/min): 20.7(586)
- Brand: Sealey
- Maximum Free Air Delivery cfm(L/min): 15.1(419)
- Maximum Pressure: 145psi(10bar)
- Minimum Rated Supply: 32A
- Motor Output: 5.5hp
- Nett Weight: 135kg
- Oil Capacity: 1.2L
- Outlet: 1/2"BSP Female Tap
- Phase: 3ph
- Receiver Capacity: 200L
- Size (W x D x H): 1440 x 440 x 965mm
- Speed: 1490rpm
- Supply: 415V/32A
Catalogue Page: Page 781
Downloadable Files:
- Instructions:
- Material Safety Data Sheet:
- Parts Diagram:
