MSM Motogadget Motoscope Mini FRAME.
"Combi Frame" Handlebar Bracket series with integrated indicator lights

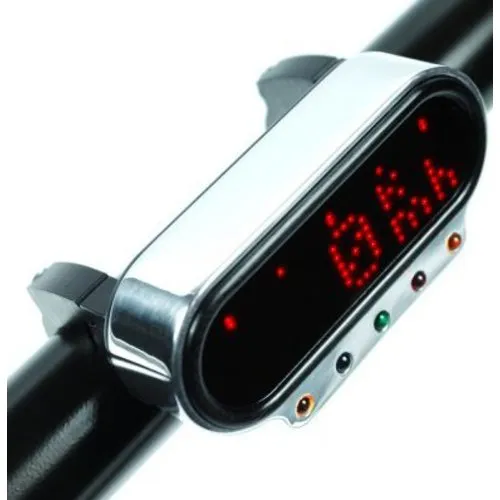

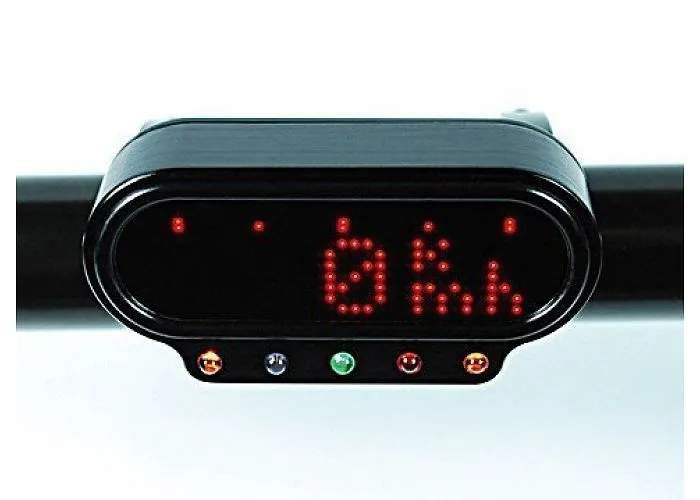

The new msm combi range of brackets from motogadget offers an attractive way of mounting the motoscope mini directly to the handlebar. The 5 indicator lights integrated in the bracket system give a very compact and elegant handlebar mounting solution.
There are two versions for 1 inch and 22 mm handlebar diameters, and also two mounting versions.
In the first, the "combi Frame" is bolted directly to the handlebar with the Bolt-On Bracket (mounting plate), and the cable is routed through the handlebar. Two M3 threaded holes and a hole for the cable have to be provided in the handlebar. This gives your handlebar an extremely clean look.
If you prefer not to drill holes in your handlebar, you can attach the "combi Frame" and mounting plate with two slender, milled handlebar clamps.

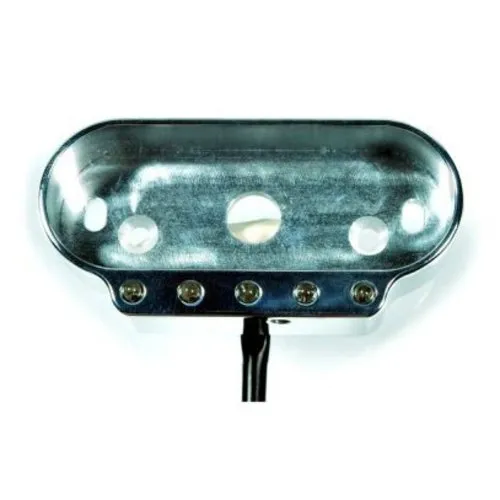

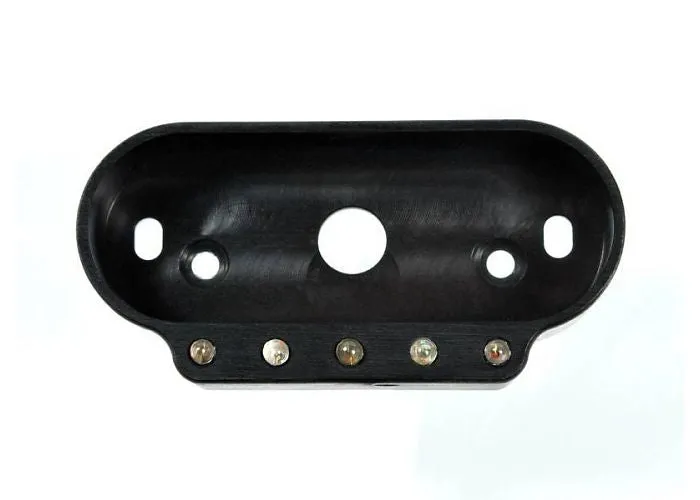

Both versions are based on the "combi Frame", which holds the motoscope mini and in which the 5 indicator LEDs are integrated.
- The "combi Frames" come in a black or polished finish, and also red, blue and gold anodised
- Dimesnsions (wxhxd) ca. 62 x 30 x 14 mm
IMPORTANT: The motoscope mini is not included with this bracket series! Please order the instrument separately
