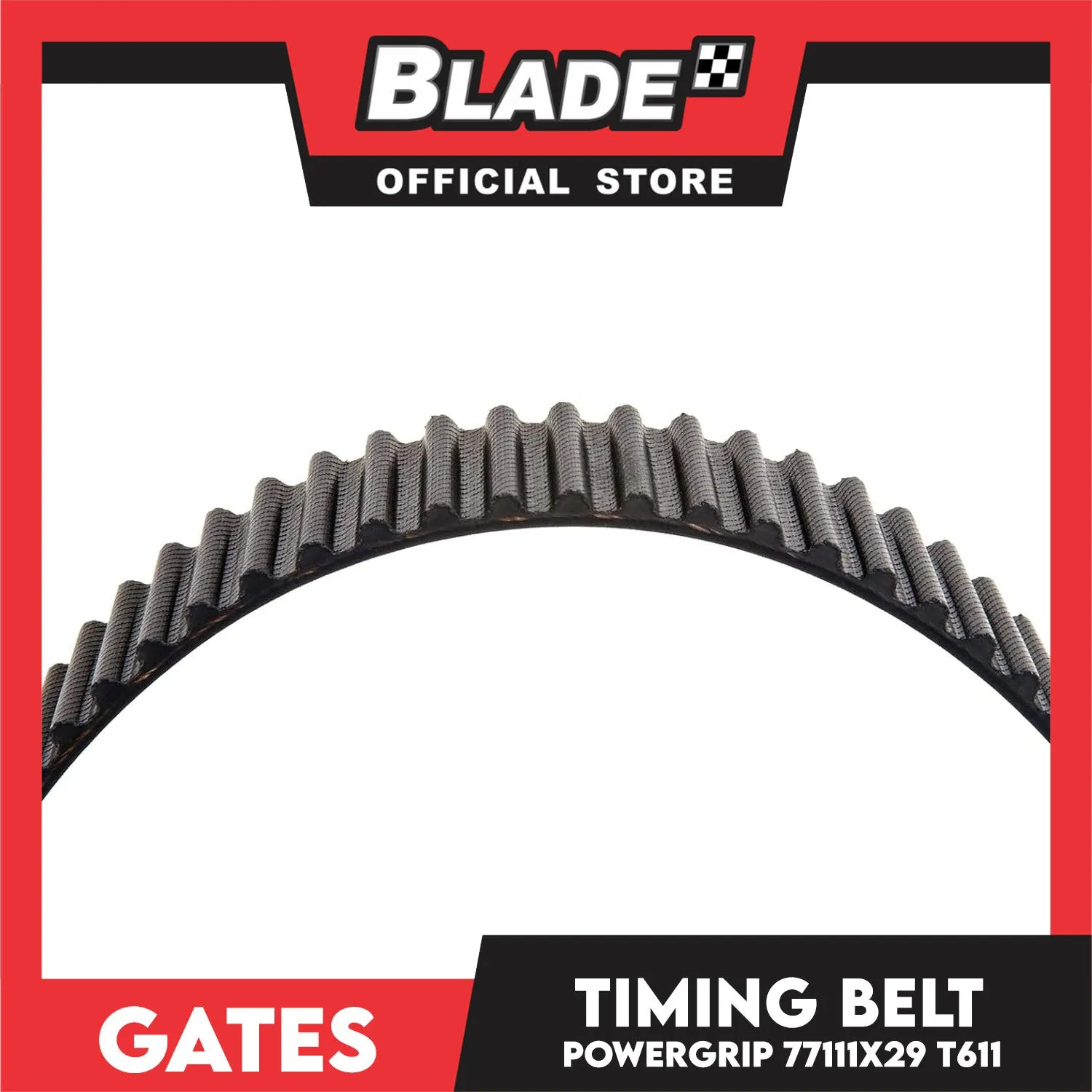

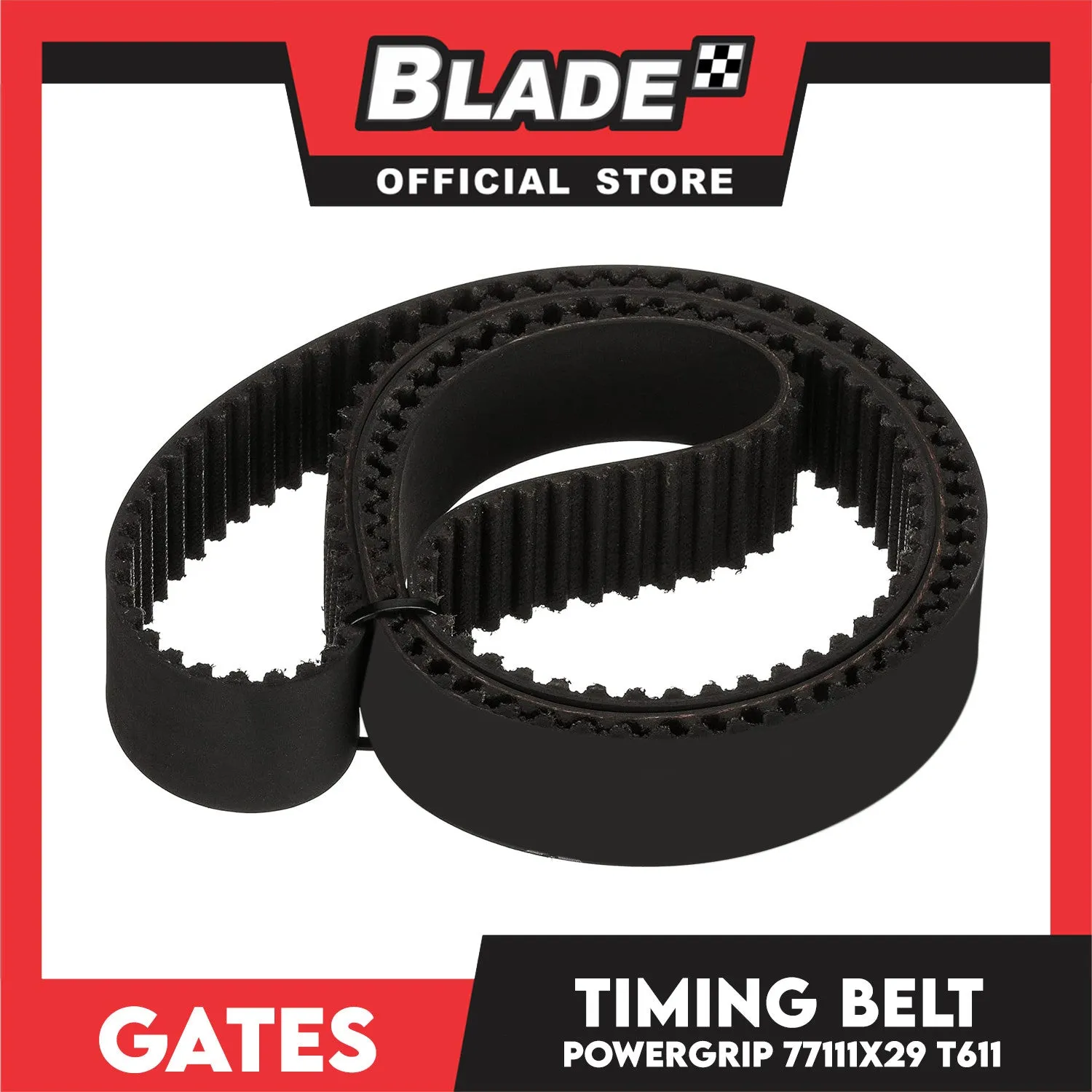

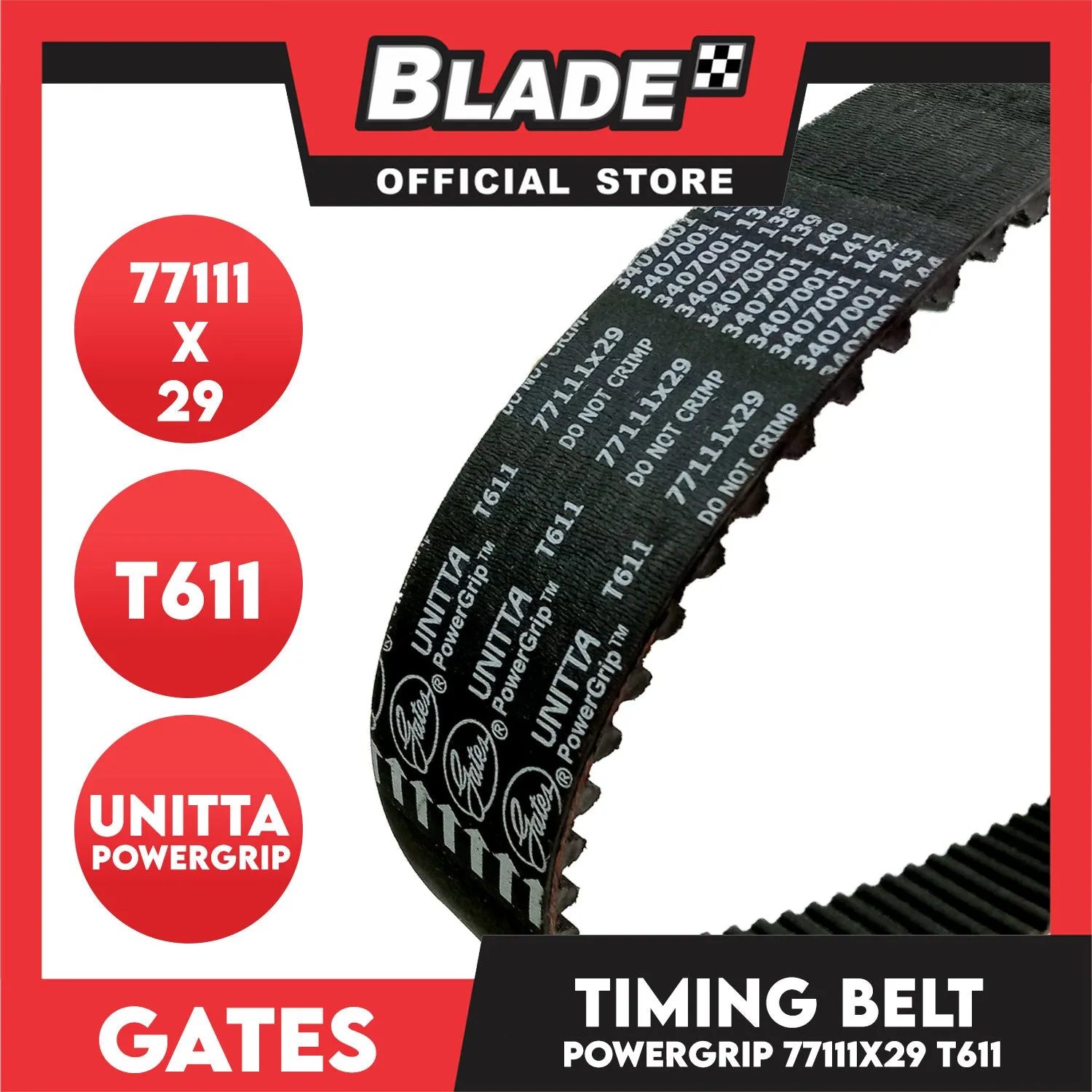

• PowerGrip
• Part No: T611
• Material: Polychloropren (neoprene)
• Colour: Black
• Number of teeth: 111
• Width (mm): 29
• Length (mm): 888
• Qty: 1pc



• Suitable with:
• MITSUBISHI LANCER
•  Petrol 1.6L/83KW 1.6 16V 4G92 (SOHC 16V) CJ_,CP_ Front-Wheel Drive Sedan (01/97-11/01)
•  Petrol 1.6L/84KW 1.6 16V (CK4A) 4G92 (SOHC 16V) CJ_,CP_ Front-Wheel Drive Sedan (09/95-08/03)
•  Petrol 1.6L/66KW 1.6 16V (CK4A) 4G92 (SOHC 16V) CJ_,CP_ Front-Wheel Drive Sedan (12/95-08/03)



• Caution:
• Before any service work on the belt is begun to be sure that the motor or engine is switched off and cannot be started.



• Important:
• Check for worn tensioners and idler pulleys. This is the best time to replace these part these parts if needed.



• Belt Removal:
• Loosen adjustment or pivot bolts.
• Move adjustment unit to minimum position.
• Remove belt.



• Belt Installation:
• Place new belt loosely on pulleys. Do not pry onto pulleys.
• Tension belt according to manufacturer's instruction.
• Run drive 5 minutes and retension. Belts must be tight enough to prevent slipping when drive is fully loaded.
