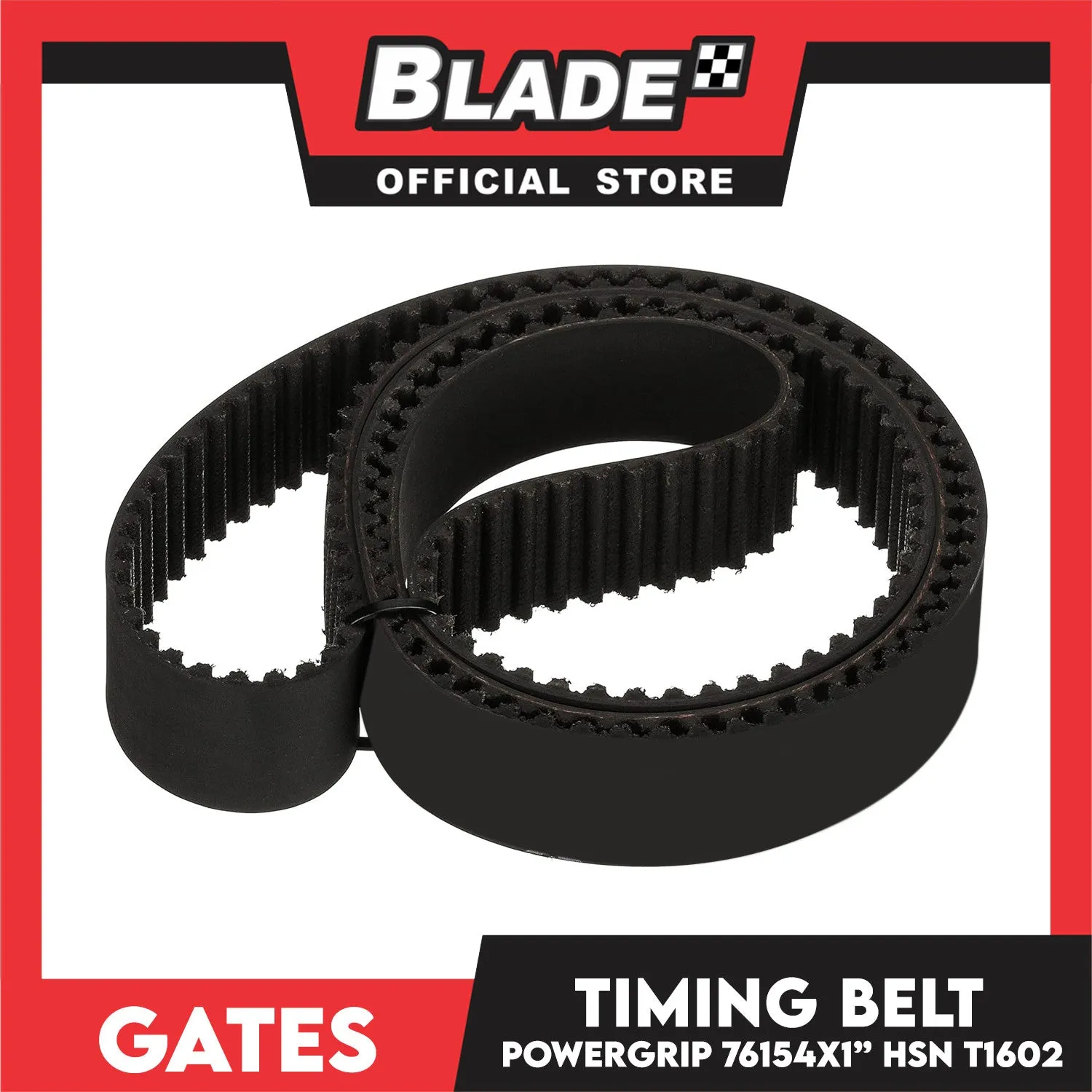

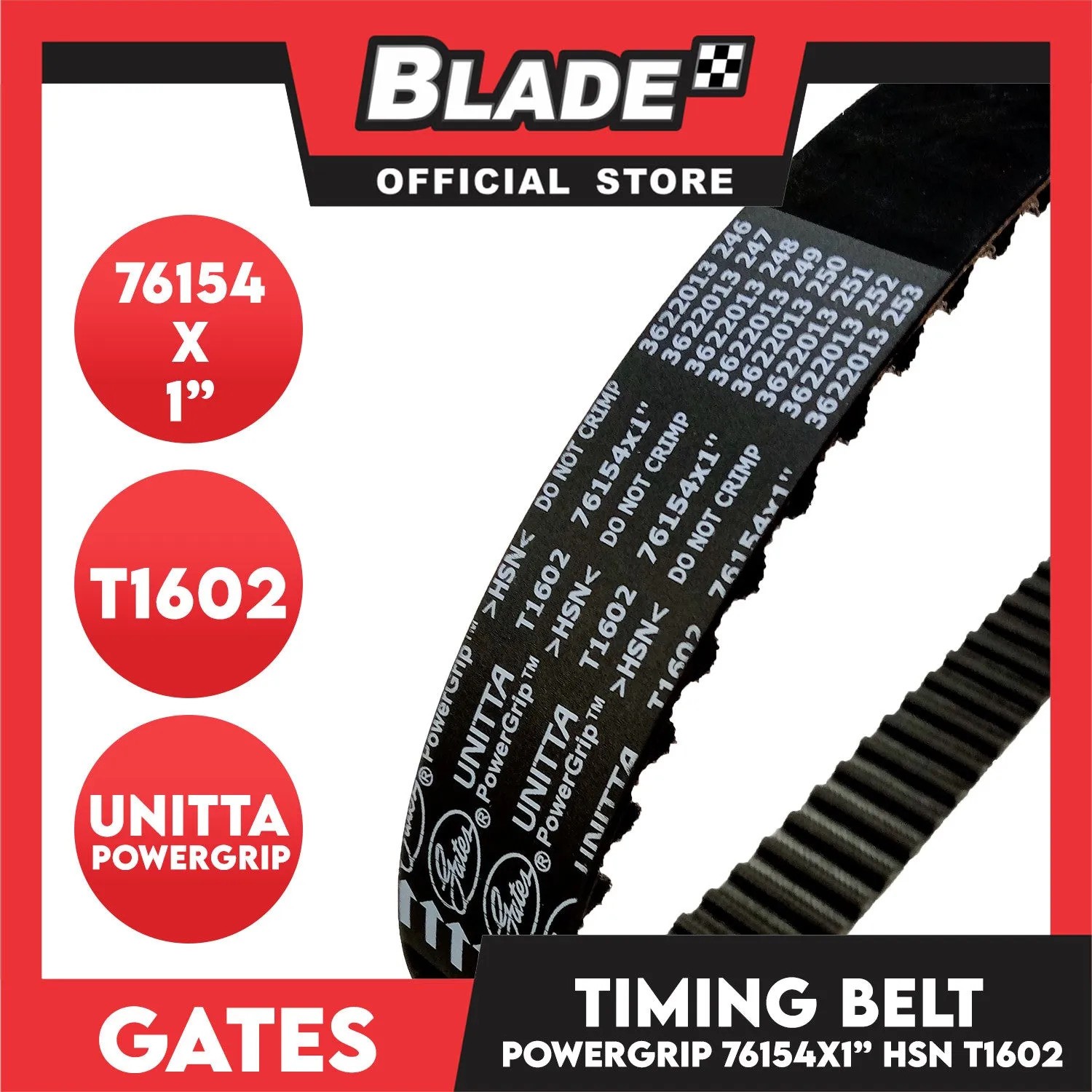

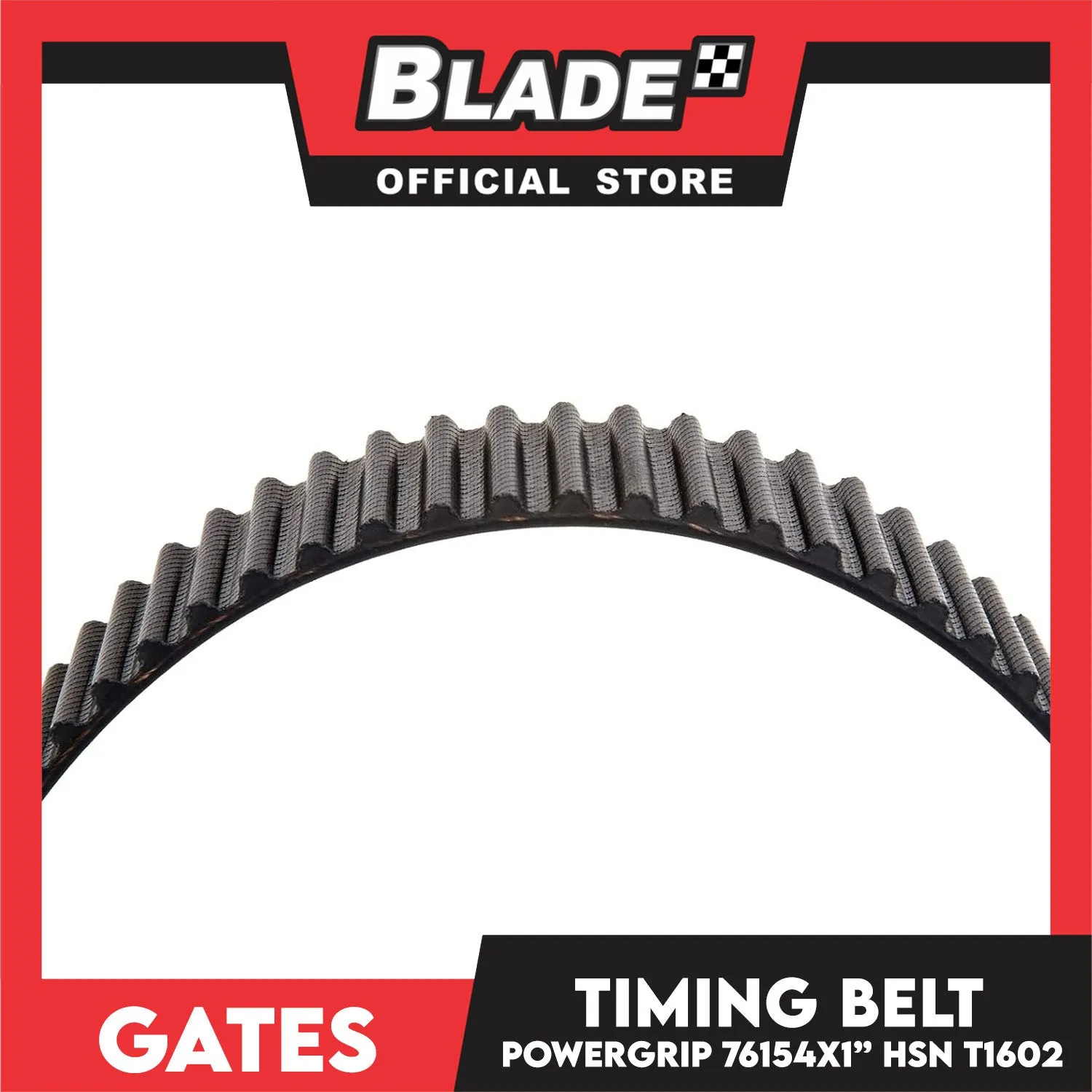

• Part No: T1602
• Material: HNBR (hydrogenated nitrile butadiene rubber)
• Colour: Black
• Number of teeth: 154
• Width (mm): 25
• Length (mm): 1467
• Qty: 1pc



• PTFE-infused jackets to reduce frictional losses and tooth shear.
• High grade HNBR rubber for superior heat and contamination resistance.
• Premium tensile members providing maximum strength.
• Aramid reinforced nylon jackets and backsides increase durability and lifetime.
• Genuine warranty equal to OE replacement interval.



• Suitable with:



• MITSUBISHI
• L200 / TRITON
•  Diesel 2.5L/131KW 2.5 DI-D 4WD (KB4T) 4D56-HP KA_T,KB_T,ML,ML,MN,MN All-wheel Drive Ute (01/08-12/15)
•  Diesel 2.5L/131KW 2.5 DI-D (KA4T) 4D56 (16V) KA_T,KB_T,ML,ML,MN,MN Rear-Wheel Drive Ute (01/10-12/15)
•  Diesel 2.5L/100KW 2.5 DI-D 4WD (KB4T) 4D56-HP KA_T,KB_T,ML,ML,MN,MN All-wheel Drive Ute (11/05-12/15)



• MONTERO SPORT
•  Diesel 2.5L/131KW 2.5 DI-D (KH4WG) 4D56-HP KG_,KH_,PB,PC Rear-Wheel Drive Closed Off-Road Vehicle (07/08-12/15)
•  Diesel 2.5L/131KW 2.5 DI-D 4WD (KH4W) 4D56-HP KG_,KH_,PB,PC All-wheel Drive Closed Off-Road Vehicle (07/08-on)
•  Diesel 2.5L/100KW 2.5 DI-D 4D56-HP KG_,KH_,PB,PC Rear-Wheel Drive Closed Off-Road Vehicle (09/08-on)
•  Diesel 2.5L/100KW 2.5 DI-D 4WD (KG4W) 4D56-HP KG_,KH_,PB,PC All-wheel Drive Closed Off-Road Vehicle (09/08-on)



• Caution:
• Before any service work on the belt is begun to be sure that the motor or engine is switched off and cannot be started.



• Important:
• Check for worn tensioners and idler pulleys. This is the best time to replace these part these parts if needed.



• Belt Removal:
• Loosen adjustment or pivot bolts.
• Move adjustment unit to minimum position.
• Remove belt.



• Belt Installation:
• Place new belt loosely on pulleys. Do not pry onto pulleys.
• Tension belt according to manufacturer's instruction.
• Run drive 5 minutes and retension. Belts must be tight enough to prevent slipping when drive is fully loaded.
