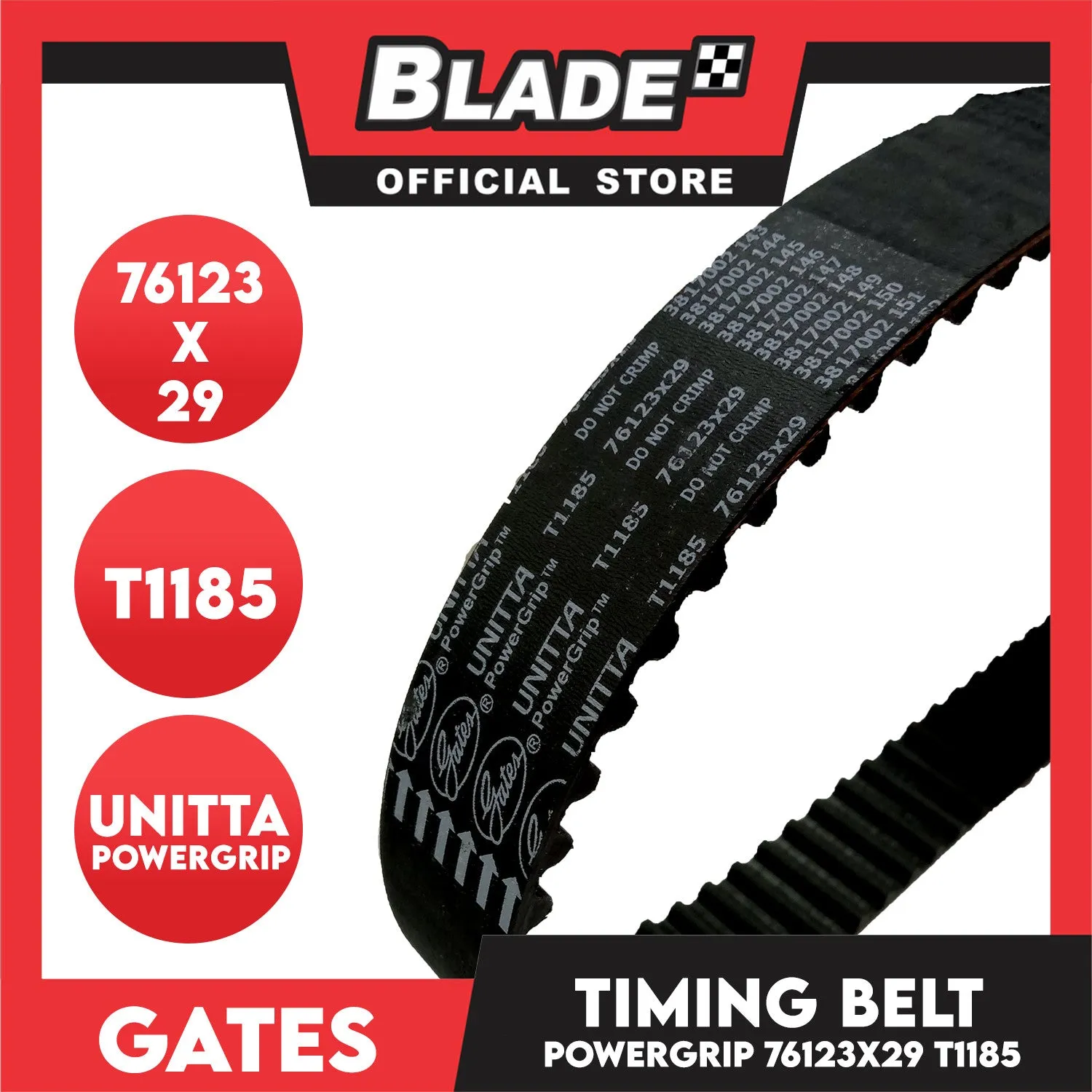

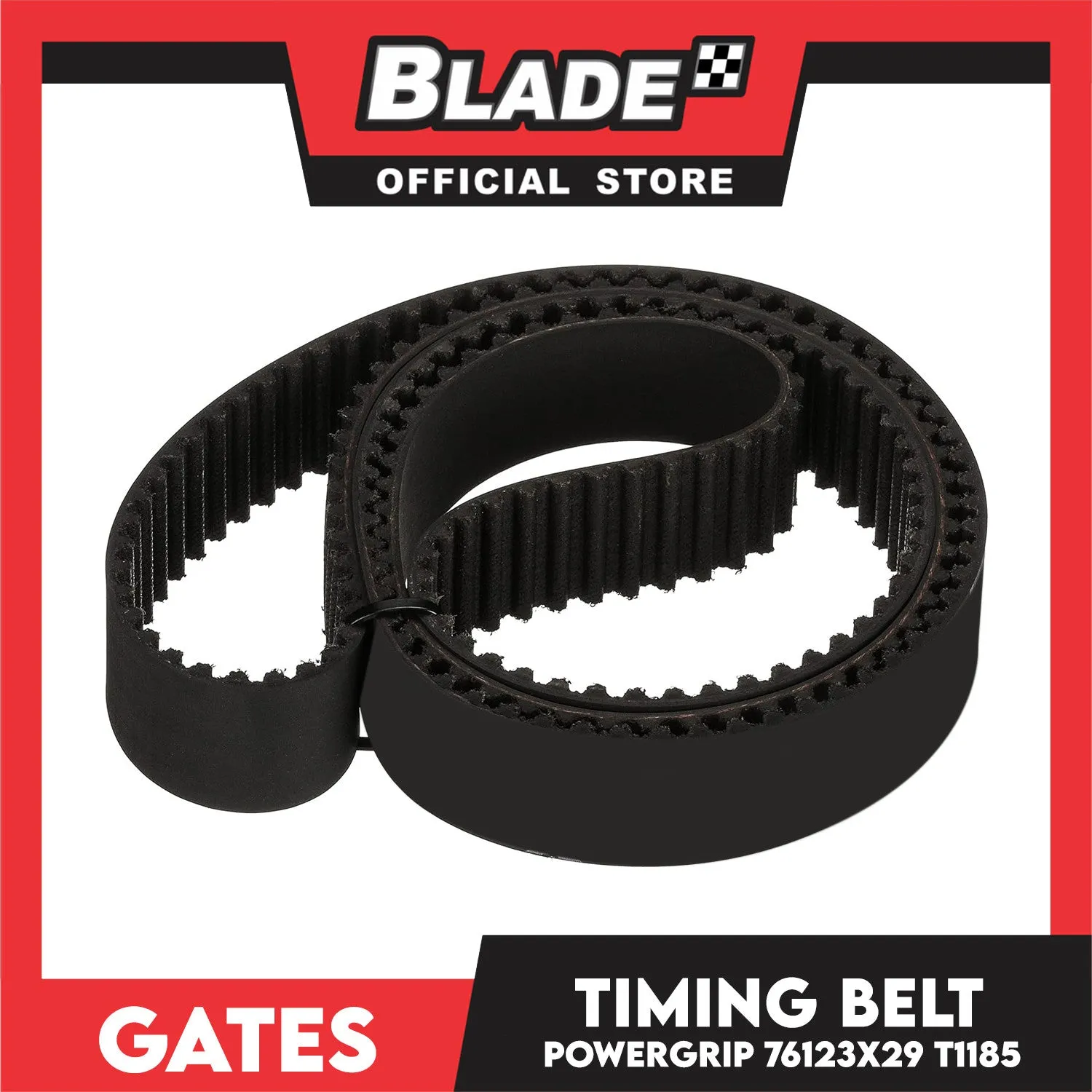

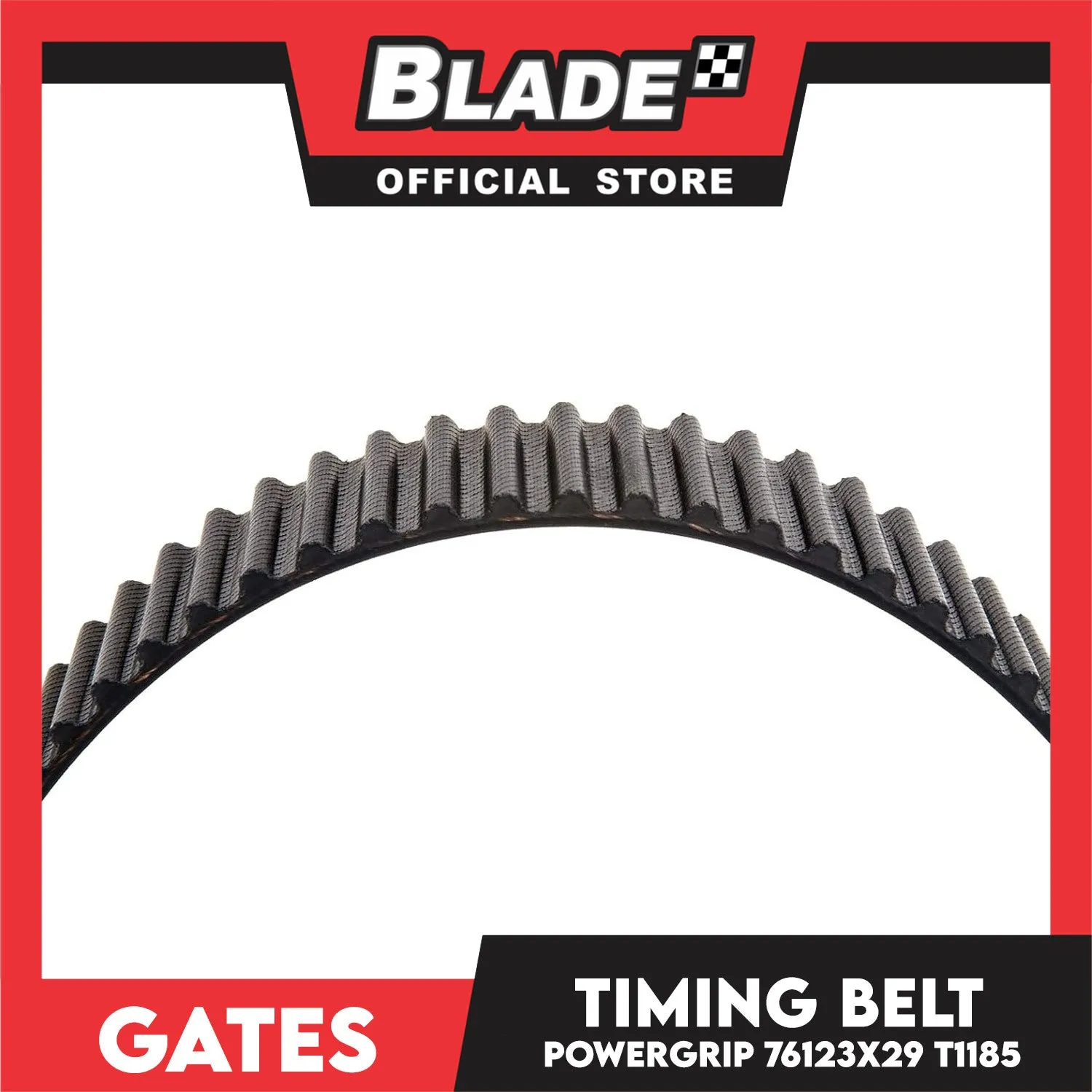

• Part No: T1185
• Material: Polychloropren (neoprene)
• Colour: Black
• Number of teeth: 123
• Width (mm): 29
• Length (mm): 1172
• Qty: 1pc



• PTFE-infused jackets to reduce frictional losses and tooth shear.
• High grade HNBR rubber for superior heat and contamination resistance.
• Premium tensile members providing maximum strength.
• Aramid reinforced nylon jackets and backsides increase durability and lifetime.
• Genuine warranty equal to OE replacement interval.



• Suitable with:
• MITSUBISHI
• ADVENTURE
•  Petrol 2L/84KW 2.0 (VB2W) 4G63 (SOHC 16V) Rear-Wheel Drive MPV (06/98-10/10)



• DELICA
•  Petrol 2L/82KW 2.0 (P03W) 4G63 (SOHC 16V) P0_W,P1_W,P2_W,P3_W,SD,SE,SF,SG,SH,SJ,WA Rear-Wheel Drive Bus (06/94-05/03)
•  Petrol 2L/82KW 2.0 4WD (P03W, P13W) 4G63 (SOHC 16V) P0_W,P1_W,P2_W,P3_W,SD,SE,SF,SG,SH,SJ,WA All-wheel Drive Bus (06/94-05/03)
•  Petrol 2L/83KW 2.0 i (P00W, P03W, P13W) 4G63 (SOHC 16V) P0_W,P1_W,P2_W,P3_W,SD,SE,SF,SG,SH,SJ,WA Rear-Wheel Drive Bus (06/94-10/98)



• GALANT
•  Petrol 2L/100KW 2.0 4G63 (SOHC 16V) E5_A,E7_A,E8_A Front-Wheel Drive Sedan (11/92-08/96)
•  Petrol 2L/101KW 2.0 GLSI (E55A) 4G63 (SOHC 16V) E5_A,E7_A,E8_A,HJ Front-Wheel Drive Hatchback (11/92-08/96)
•  Petrol 2L/101KW 2.0 GLSI 4WD (E75A) 4G63 (SOHC 16V) E5_A,E7_A,E8_A All-wheel Drive Sedan (11/92-08/96)
•  Petrol 2L/101KW 2.0 GLSI 4WD (E75A) 4G63 (SOHC 16V) E5_A,E7_A,E8_A,HJ All-wheel Drive Hatchback (11/92-08/96)



• L 300
•  Petrol 2L/86KW 2.0 4G63 (SOHC 16V) P0_V,P1_V,P2_V,SF,SG,SH,SJ,WA Rear-Wheel Drive Van (07/07-09/13)
•  Petrol 2L/84KW 2.0 (P13W) 4G63 (SOHC 16V) P0_W,P1_W,P2_W,P3_W,SD,SE,SF,SG,SH,SJ,WA Rear-Wheel Drive Bus (07/07-12/13)



• SPACE WAGON
•  Petrol 2L/98KW 2.0 (N33W) 4G63 (SOHC 16V) N3_W,N4_W,UF Front-Wheel Drive MPV (10/92-10/98)



• Caution:
• Before any service work on the belt is begun to be sure that the motor or engine is switched off and cannot be started.



• Important:
• Check for worn tensioners and idler pulleys. This is the best time to replace these part these parts if needed.



• Belt Removal:
• Loosen adjustment or pivot bolts.
• Move adjustment unit to minimum position.
• Remove belt.



• Belt Installation:
• Place new belt loosely on pulleys. Do not pry onto pulleys.
• Tension belt according to manufacturer's instruction.
• Run drive 5 minutes and retension. Belts must be tight enough to prevent slipping when drive is fully loaded.
