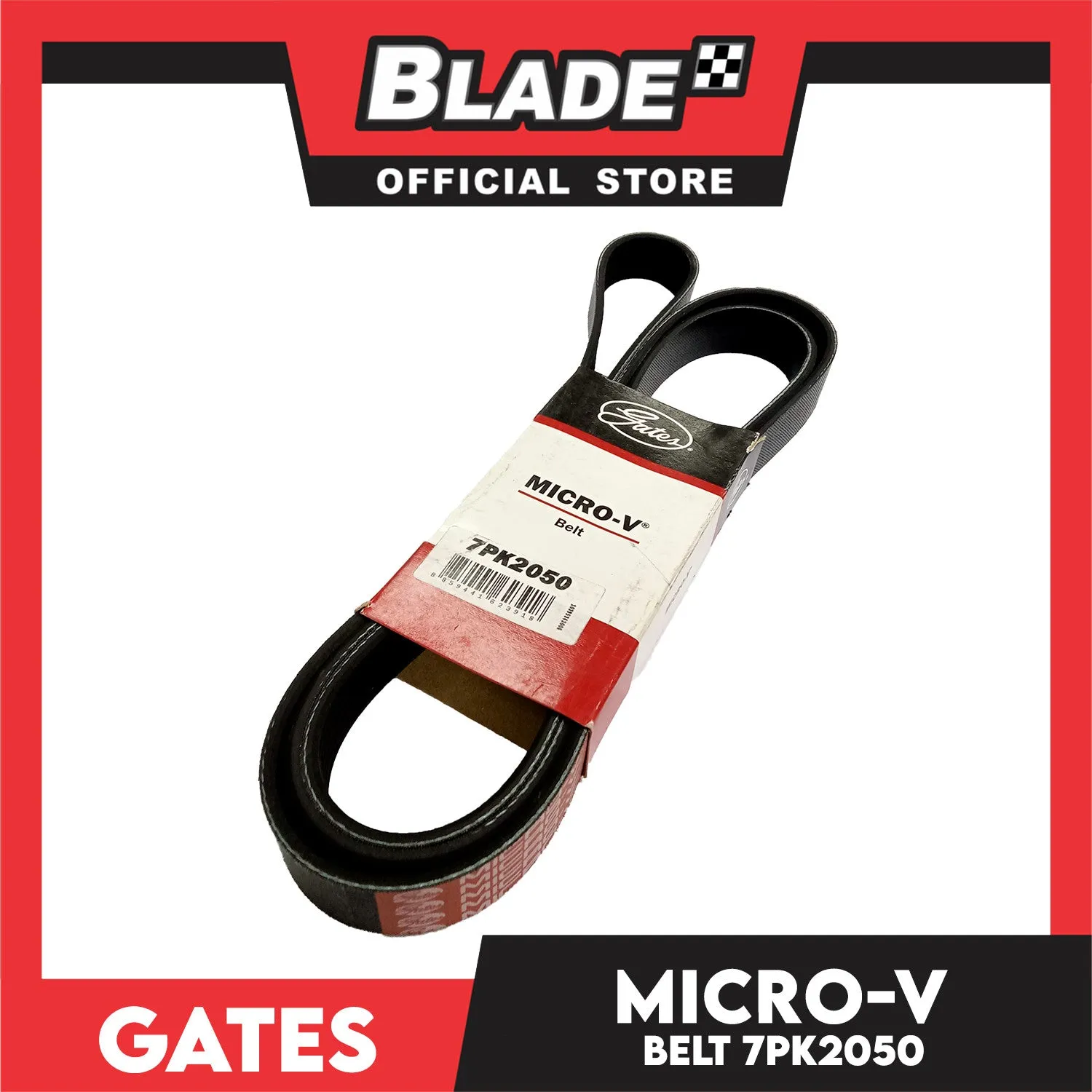

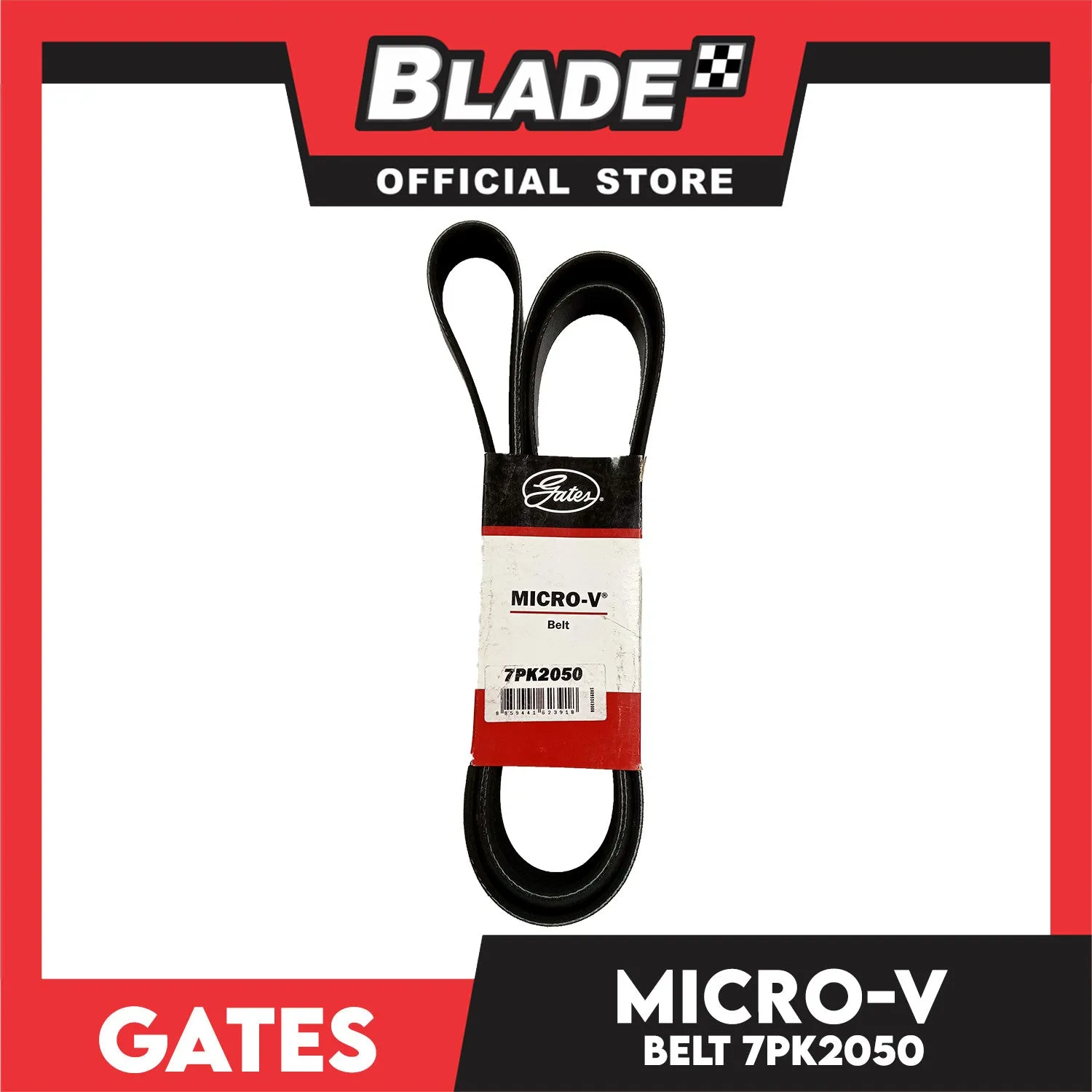

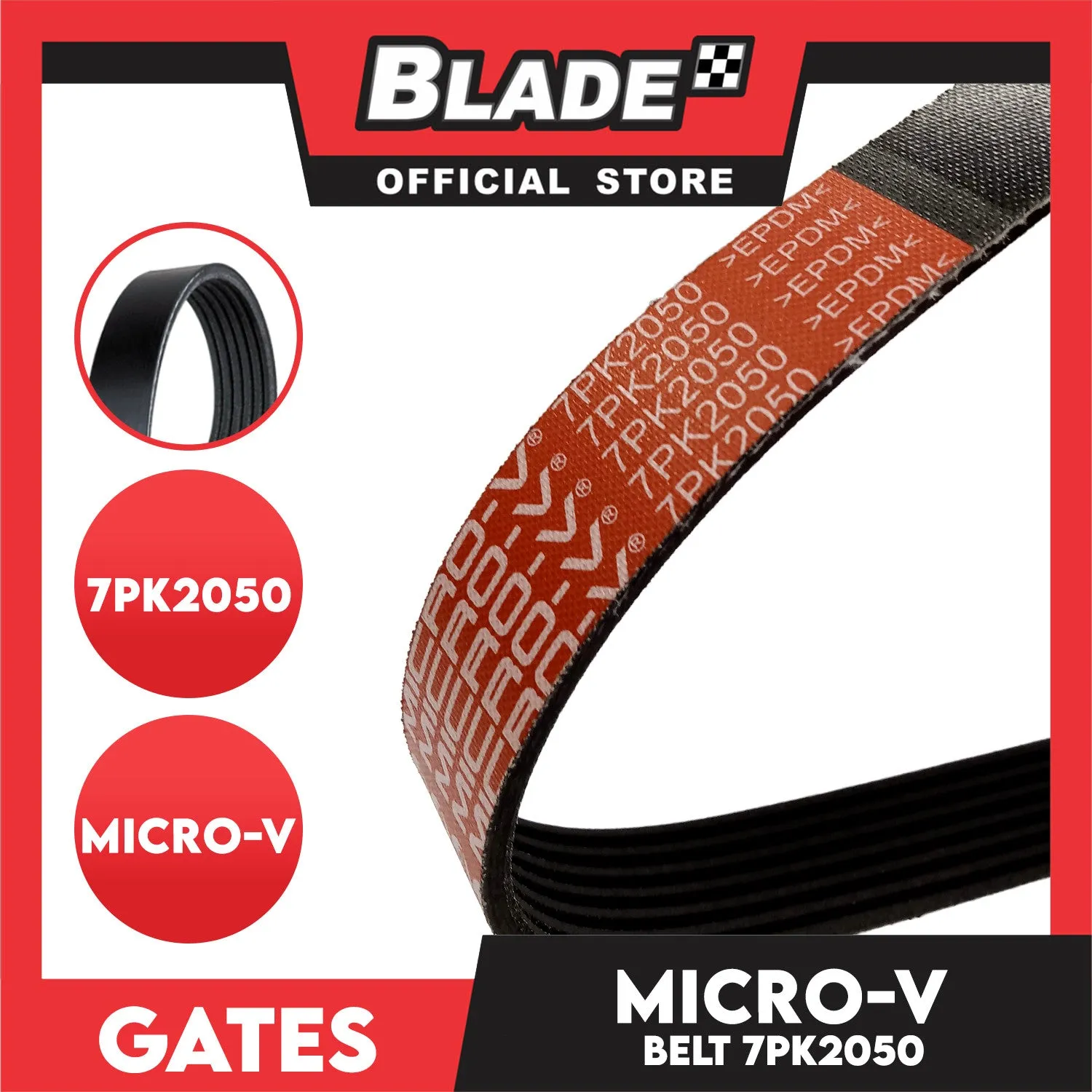

• Micro-V
• Part No: 7PK2050
• Material: EPDM (ethylene propylene diene Monomer (M-class) rubber)
• Colour: Black
• Number of ribs: 7
• Width (mm): 24
• Length (mm): 2050
• Qty: 1pc



• Lasts Longer - Lasts up to 50% longer than any retail belt on the market.
• Ultimate Dependability - Eliminates belt noise and premature failure by utilising materials like Aramid Fibre found in bullet proof vests and crack and heat resistant EPDM materials.
• Improves Component Performance – Compensates for worn and misaligned components in high kilometre vehicles through superior stability.



• Suitable with:
• TOYOTA
• FORTUNER
•  Diesel 2.4L/110KW 2.4 D 4x4 (GUN155_) 2GD-FTV _N15_,_N16_ All-wheel Drive SUV (01/16-12/21)
•  Diesel 2.4L/110KW 2.4 D (GUN165_) 2GD-FTV _N15_,_N16_ Rear-Wheel Drive SUV (01/16-on)
•  Diesel 2.4L/108KW 2.4 D (GUN165_) 2GD-FTV _N15_,_N16_ Rear-Wheel Drive SUV (01/16-on)
•  Diesel 2.8L/128KW 2.8 D 4x4 (GUN156_) 1GD-FTV _N15_,_N16_ All-wheel Drive SUV (01/16-on)
•  Diesel 2.8L/150KW 2.8 D (GUN166) 1GD-FTV _N15_,_N16_ Rear-Wheel Drive SUV (01/22-on)
•  Diesel 2.8L/150KW 2.8 D 4x4 (GUN156) 1GD-FTV _N15_,_N16_ All-wheel Drive SUV (01/22-on)
•  Diesel 2.8L/130KW 2.8 D (GUN166_) 1GD-FTV _N15_,_N16_ Rear-Wheel Drive SUV (05/15-on)
•  Diesel 2.8L/130KW 2.8 D 4x4 (GUN156) 1GD-FTV _N15_,_N16_ All-wheel Drive SUV (05/15-on)
•
• HILUX
•  Diesel 2.4L/110KW 2.4 D (GUN112_, GUN122_, GUN135_, GUN120_) 2GD-FTV _N1_ Rear-Wheel Drive Ute (03/19-on)
•  Diesel 2.4L/108KW 2.4 D (GUN112_, GUN122_, GUN135_) 2GD-FTV _N1_ Rear-Wheel Drive Ute (05/15-on)
•  Diesel 2.4L/110KW 2.4 D 4WD (GUN125_) 2GD-FTV _N1_ All-wheel Drive Ute (05/15-on)
•  Diesel 2.4L/108KW 2.4 D 4WD (GUN125_) 2GD-FTV _N1_ All-wheel Drive Ute (05/15-on)
•  Diesel 2.8L/130KW 2.8 D 4WD (GUN126_) 1GD-FTV _N1_ All-wheel Drive Ute (05/15-on)
•  Diesel 2.8L/128KW 2.8 D 4WD (GUN126_) 1GD-FTV _N1_ All-wheel Drive Ute (05/15-on)
•  Diesel 2.8L/150KW 2.8 D 4WD (GUN126) 1GD-FTV _N1_ All-wheel Drive Ute (06/20-on)



• HILUX REVO
•  Diesel 2.8L/150KW 2.8 D (GUN136) 1GD-FTV _N1_ Rear-Wheel Drive Ute (05/20-on)
•  Diesel 2.4L/110KW 2.4 D (GUN112_, GUN122_, GUN135_) 2GD-FTV _N1_ Rear-Wheel Drive Platform/Chassis (07/15-on)
•  Diesel 2.8L/125KW 2.8 D (GUN123_, GUN136_, GUN123) 1GD-FTV _N1_ Rear-Wheel Drive Ute (07/15-on)



• INNOVA
•  Diesel 2.8L/128KW 2.8 D (GUN143) 1GD-FTV _N14_ Rear-Wheel Drive MPV (11/15-on)
•  Diesel 2.8L/126KW 2.8 D (GUN143) 1GD-FTV _N14_ Rear-Wheel Drive MPV (11/15-on)



• KIJANG INNOVA / INNOVA VENTURER
•  Diesel 2.4L/110KW 2.4 (GUN142) 2GD-FTV _N14_ Rear-Wheel Drive MPV (11/15-10/2



• Caution:
• Before any service work on the belt is begun to be sure that the motor or engine is switched off and cannot be started.



• Important:
• Check for worn tensioners and idler pulleys. This is the best time to replace these part these parts if needed.
•
• Belt Removal:
• Loosen adjustment or pivot bolts.
• Move adjustment unit to minimum position.
• Remove belt.



• Belt Installation:
• Place new belt looseley on pulleys. Do not pry onto pulleys.
• Tension belt according to manufacturer's instruction.
• Run drive 5 minutes and retension. Belts must be tight enough to prevent slippingwhen drive is fully loaded.
