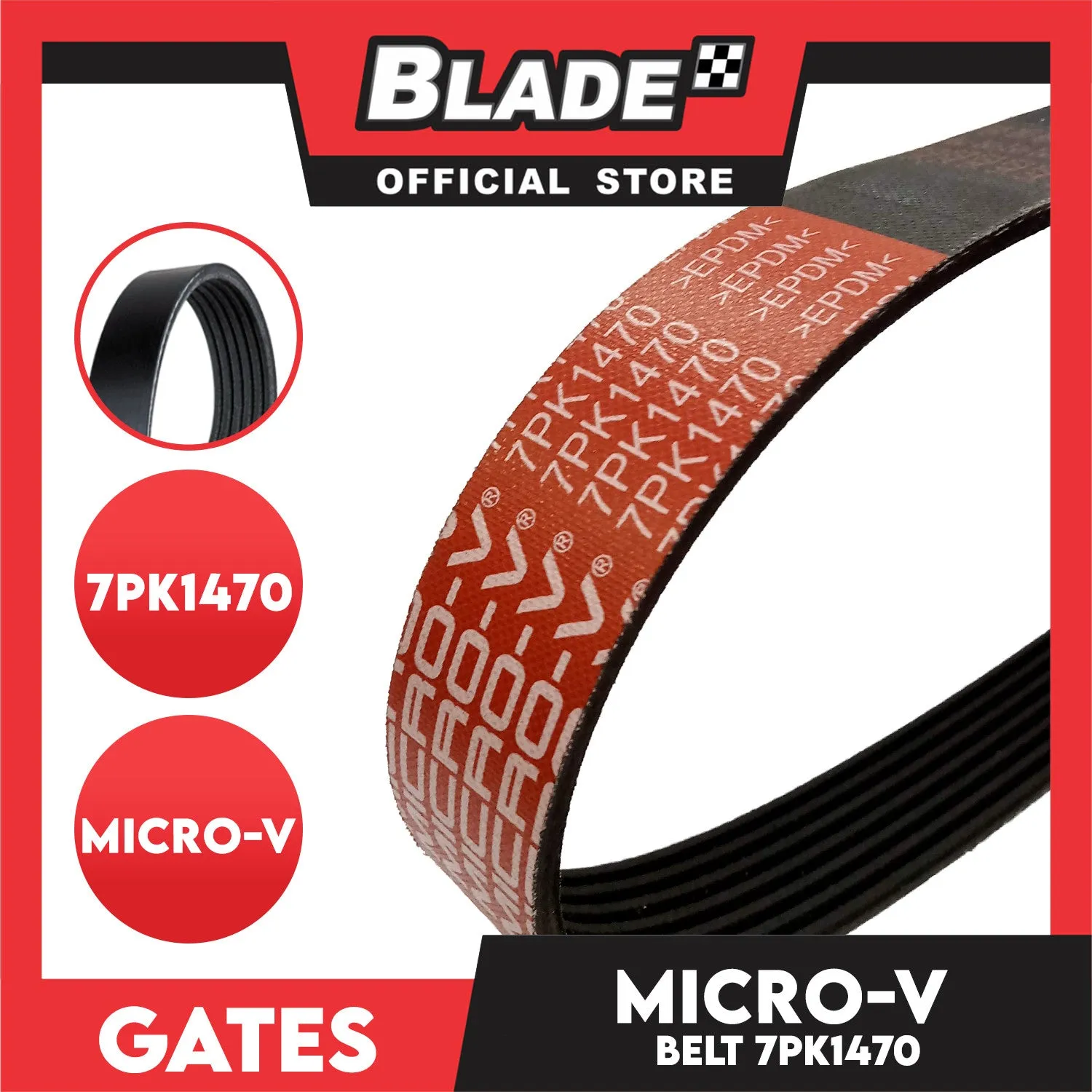

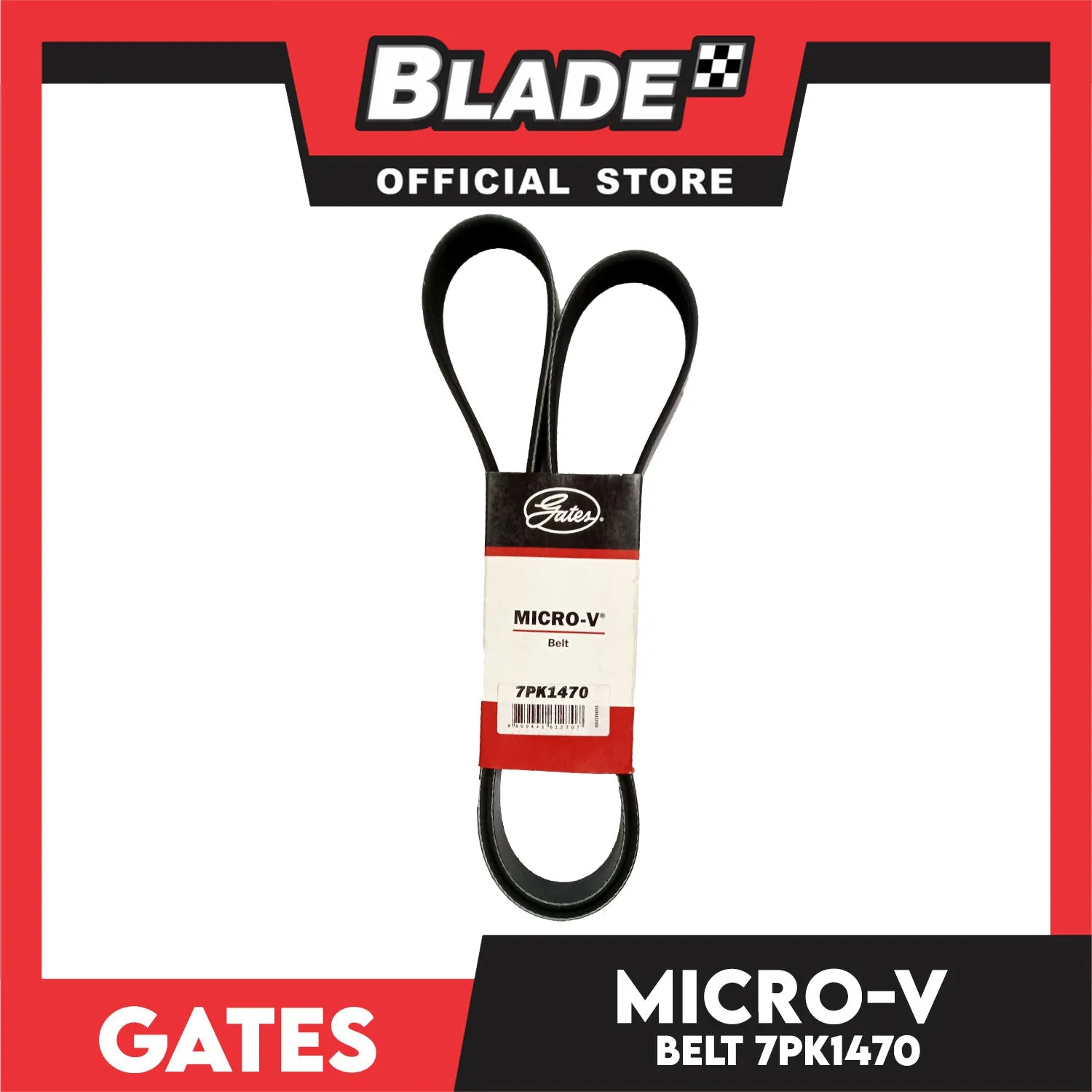

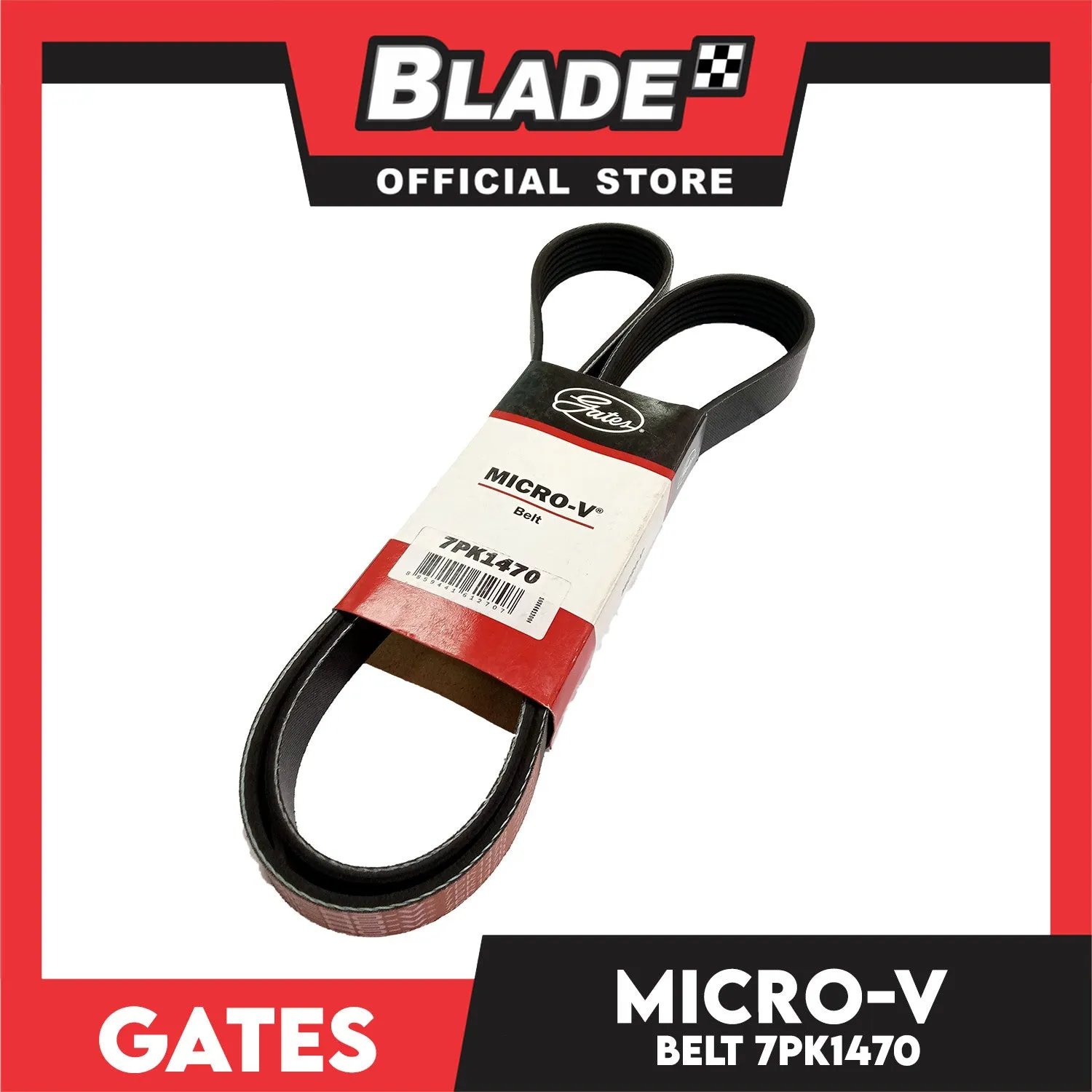

• Micro-V
• Part No: 7PK1470
• Length (mm): 1470
• No. of ribs: 7
• Qty: 1pc

• Suitable with;
• TOYOTA HIACE Diesel KDH223 3L
• TOYOTA HIACE Diesel KDH201KDH221 3L
• TOYOTA HIACE Diesel KDH200/KDH223 3L
• TOYOTA HIACE Diesel KDH200KDH220 2.5L
• TOYOTA HIACE / COMMUTER Diesel KDH223 3L
• TOYOTA HIACE / COMMUTER Diesel KDH222 2.5L

• Caution:
• Before any service work on the belt is begun to be sure that the motor or engine is switched off and cannot be started.

• Important:
• Check for worn tensioners and idler pulleys. This is the best time to replace these part these parts if needed.

Belt Removal:

1. Loosen adjustment or pivot bolts.
2. Move adjustment unit to minimum position.
3. Remove belt.

Belt Installation:

1. Place new belt looseley on pulleys. Do not pry onto pulleys.
2. Tension belt according to manufacturer's instruction.
3. Run drive 5 minutes and retension. Belts must be tight enough to prevent slippingwhen drive is fully loaded.
