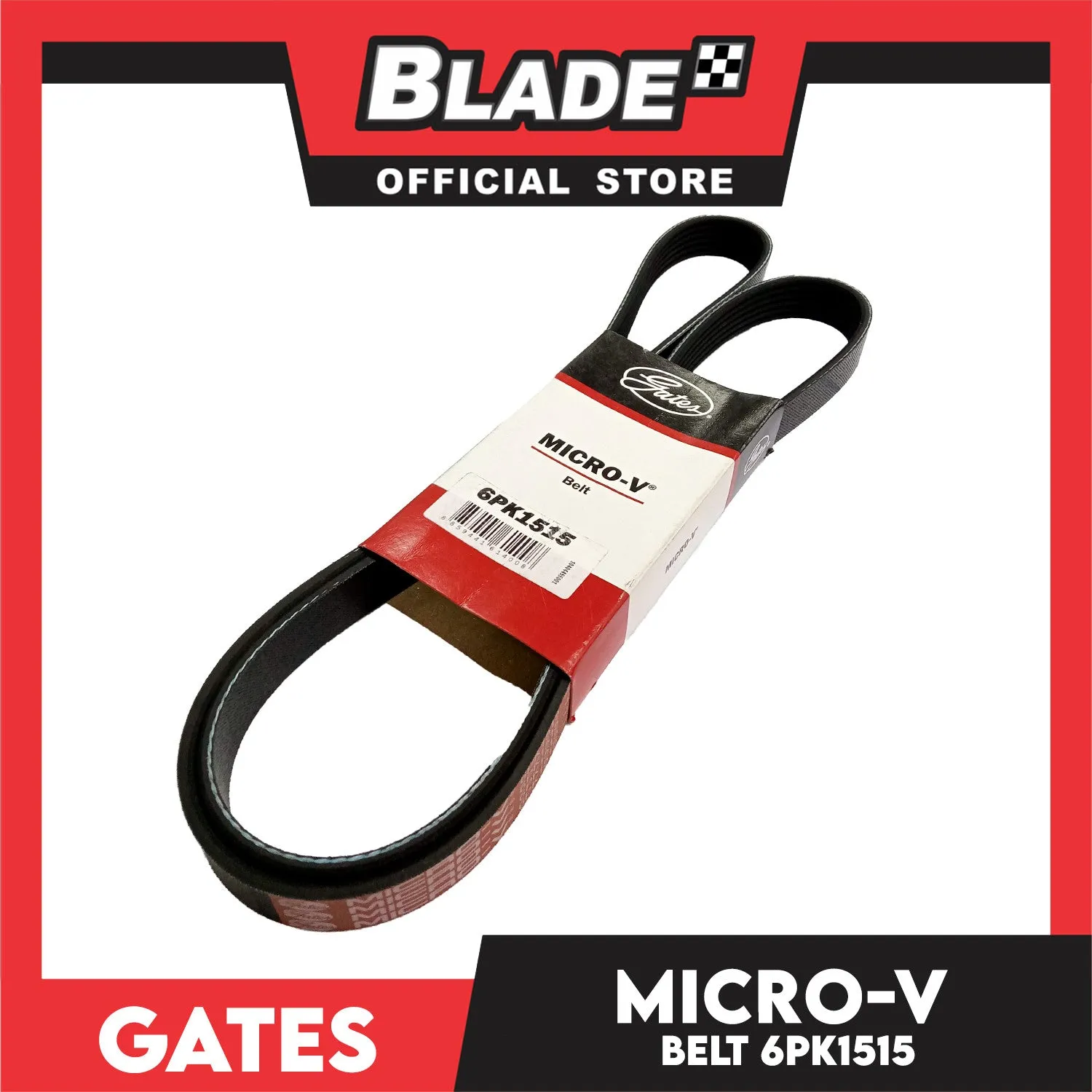

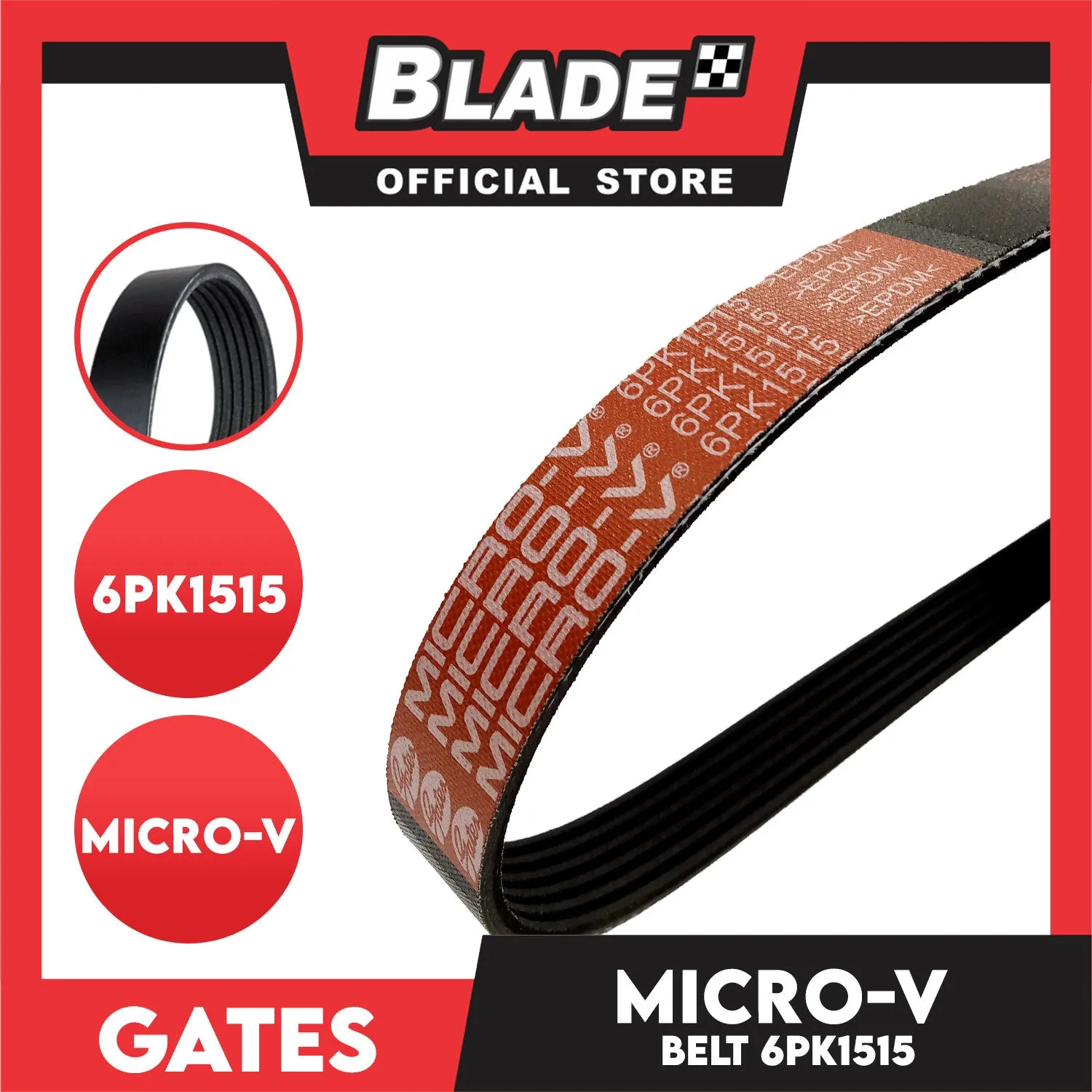

• Micro-V
• Part No: 6PK1515
• Material: EPDM (ethylene propylene diene Monomer (M-class) rubber)
• Colour: Black
• Number of ribs: 6
• Width (mm): 20
• Length (mm): 1515
• Qty: 1pc



• Lasts Longer - Lasts up to 50% longer than any retail belt on the market.
• Ultimate Dependability - Eliminates belt noise and premature failure by utilising materials like Aramid Fibre found in bullet proof vests and crack and heat resistant EPDM materials.
• Improves Component Performance – Compensates for worn and misaligned components in high kilometre vehicles through superior stability.



• Suitable with:
• MITSUBISHI
• L200 / TRITON
•  Diesel 2.5L/131KW 2.5 DI-D 4WD (KB4T) 4D56-HP KA_T,KB_T,ML,ML,MN,MN All-wheel Drive Ute (01/08-12/15)
•  Diesel 2.5L/131KW 2.5 DI-D (KA4T) 4D56 (16V) KA_T,KB_T,ML,ML,MN,MN Rear-Wheel Drive Ute (01/10-12/15)
•  Diesel 2.5L/94KW 2.5 DI-D (KA4T) 4D56-HP,4D56 (16V) KA_T,KB_T,ML,ML,MN,MN Rear-Wheel Drive Ute (04/10-12/15)
•  Diesel 2.5L/100KW 2.5 DI-D 4WD (KB4T) 4D56-HP KA_T,KB_T,ML,ML,MN,MN All-wheel Drive Ute (11/05-12/15)



• MONTERO SPORT
•  Diesel 2.5L/131KW 2.5 DI-D (KH4WG) 4D56-HP KG_,KH_,PB,PC Rear-Wheel Drive Closed Off-Road Vehicle (07/08-12/15)
•  Diesel 2.5L/131KW 2.5 DI-D 4WD (KH4W) 4D56-HP KG_,KH_,PB,PC All-wheel Drive Closed Off-Road Vehicle (07/08-on)
•  Diesel 2.5L/100KW 2.5 DI-D 4D56-HP KG_,KH_,PB,PC Rear-Wheel Drive Closed Off-Road Vehicle (09/08-on)
•  Diesel 2.5L/100KW 2.5 DI-D 4WD (KG4W) 4D56-HP KG_,KH_,PB,PC All-wheel Drive Closed Off-Road Vehicle (09/08-on)



• STRADA
•  Diesel 2.5L/94KW 2.5 DI-D (KA4T) 4D56 (16V) KA_T,KB_T,ML,ML,MN,MN Rear-Wheel Drive Platform/Chassis (08/07-12/15)
•  Diesel 2.5L/123KW 2.5 DI-D 4WD (KB4T) 4D56-HP KA_T,KB_T,ML,ML,MN,MN All-wheel Drive Ute (10/07-12/15)
•  Diesel 2.5L/100KW 2.5 DI-D (KA4T) 4D56-HP KA_T,KB_T,ML,ML,MN,MN Rear-Wheel Drive Ute (11/05-12/15)



• STRADA TRITON
•  Diesel 2.5L/66KW 2.5 D (KA4T) 4D56-TD KA_T,KB_T,ML,ML,MN,MN Rear-Wheel Drive Ute (08/11-12/15)



• TRITON
•  Diesel 2.5L/103KW 2.5 DI-D 4WD (KB4T) 4D56-HP KA_T,KB_T,ML,ML,MN,MN All-wheel Drive Ute (04/10-12/15)
•  Diesel 2.5L/55KW 2.5 D KA_T,KB_T,ML,ML,MN,MN Rear-Wheel Drive Ute (06/08-12/15)



• Caution:
• Before any service work on the belt is begun to be sure that the motor or engine is switched off and cannot be started.



• Important:
• Check for worn tensioners and idler pulleys. This is the best time to replace these part these parts if needed.



• Belt Removal:
• Loosen adjustment or pivot bolts.
• Move adjustment unit to minimum position.
• Remove belt.



• Belt Installation:
• Place new belt loosely on pulleys. Do not pry onto pulleys.
• Tension belt according to manufacturer's instruction.
• Run drive 5 minutes and retension. Belts must be tight enough to prevent slipping when drive is fully loaded.
