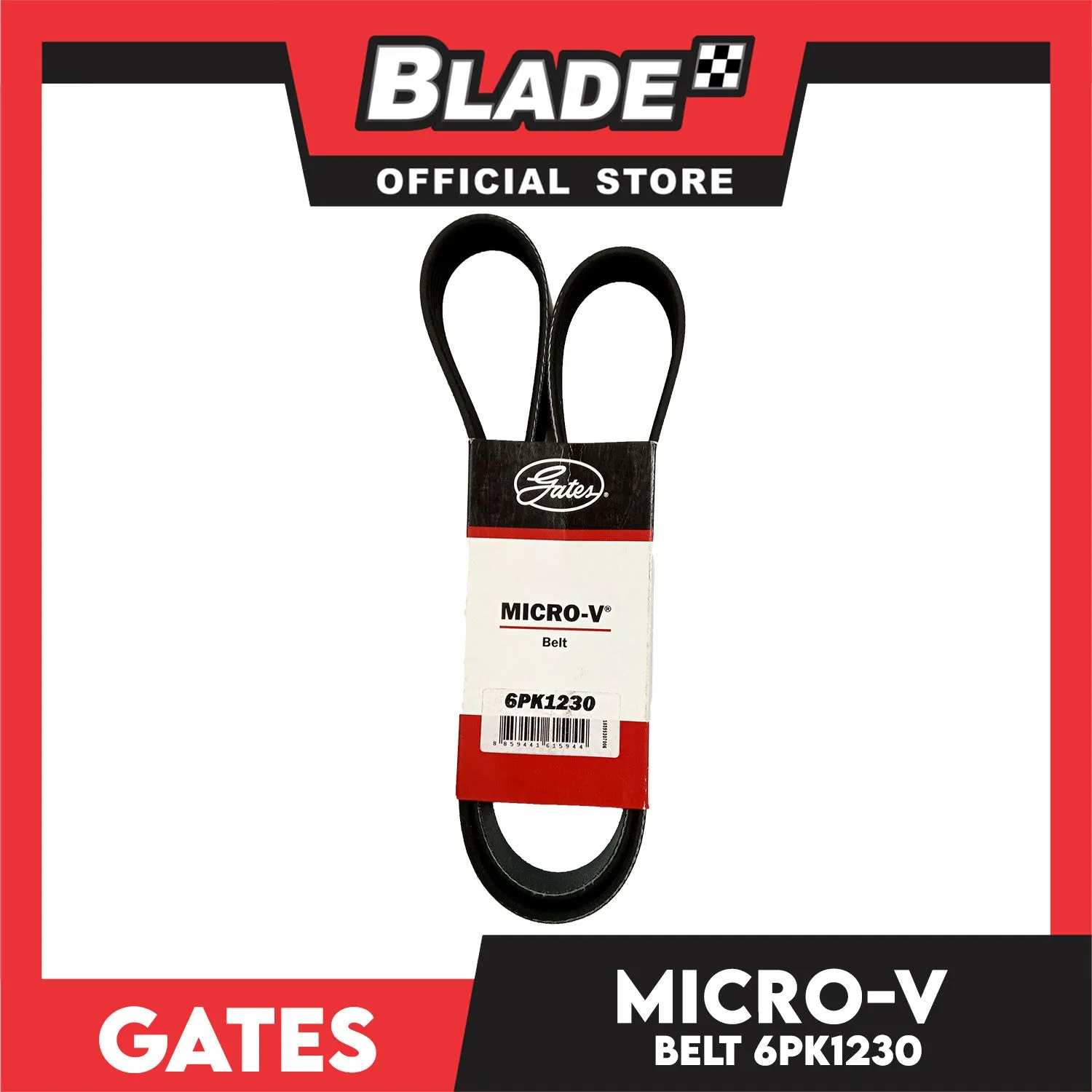

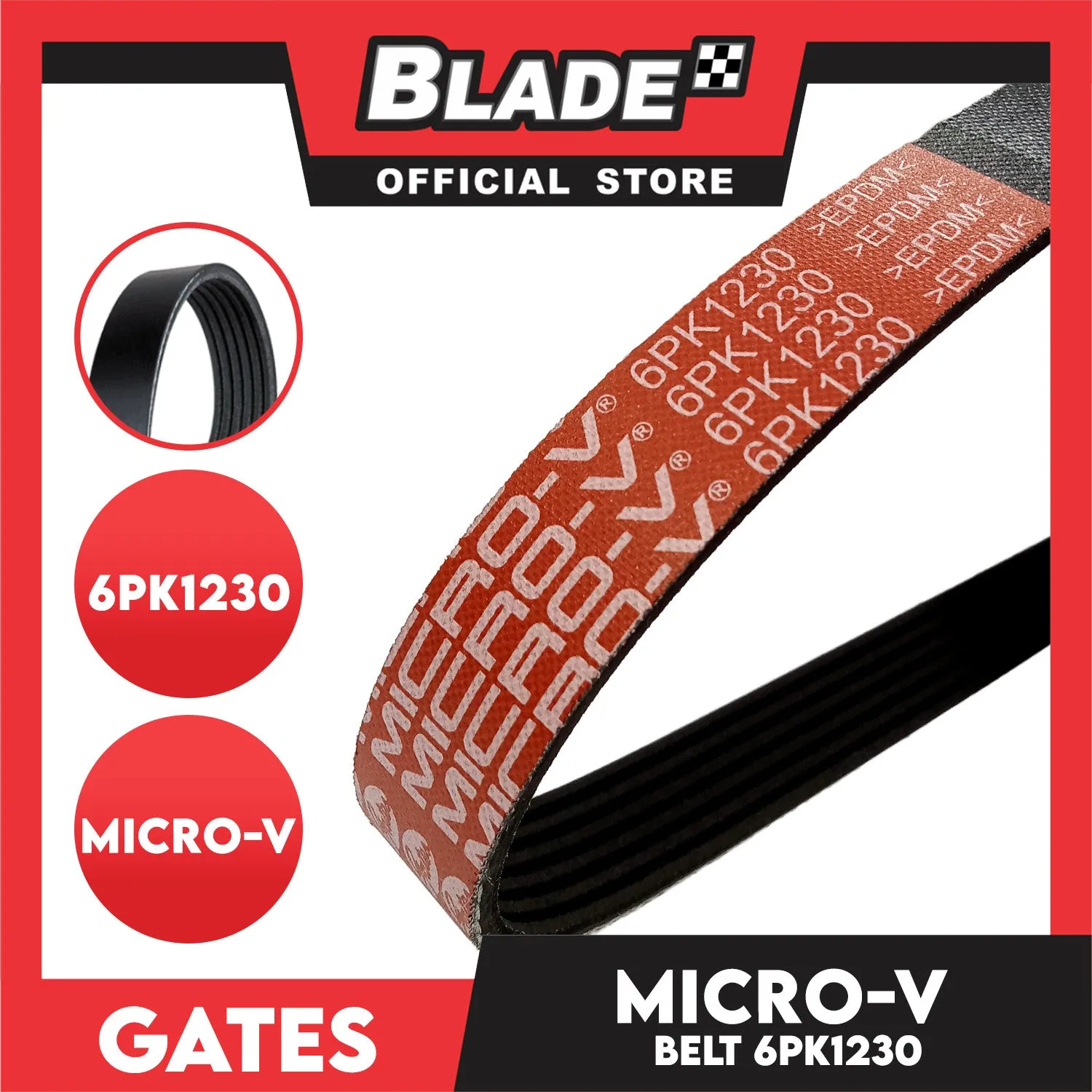

• Micro-V
• Part No: 6PK1230
• Material: EPDM (ethylene propylene diene Monomer (M-class) rubber)
• Colour: Black
• Number of ribs: 6
• Width (mm): 20
• Length (mm): 1230
• Qty: 1pc



• Lasts Longer - Lasts up to 50% longer than any retail belt on the market.
• Ultimate Dependability - Eliminates belt noise and premature failure by utilising materials like Aramid Fibre found in bullet proof vests and crack and heat resistant EPDM materials.
• Improves Component Performance – Compensates for worn and misaligned components in high kilometre vehicles through superior stability.



• Suitable with:



• TOYOTA
• ALTIS
•  Petrol 1.6L/91KW 1.6 Dual VVTi (ZRE141, ZRE151) 1ZR-FE _E14_,_E14_,_E14_,_E14_,_E14_,_E15_ Front-Wheel Drive Sedan (01/07-07/14)
•  Petrol 1.6L/90KW 1.6 VVTi (ZRE141_, ZRE151_) 1ZR-FE _E14_,_E14_,_E14_,_E14_,_E14_,_E15_ Front-Wheel Drive Sedan (07/10-05/14)
•  Petrol 2L/107KW 2.0 (ZRE143) 3ZR-FE _E14_,_E14_,_E14_,_E14_,_E14_,_E15_ Front-Wheel Drive Sedan (07/10-06/13)
•  Petrol 1.8L/103KW 1.8 VVTi (ZRE142) 2ZR-FBE,2ZR-FE _E14_,_E14_,_E14_,_E14_,_E14_,_E15_ Front-Wheel Drive Sedan (08/10-06/13)
•  Petrol 1.8L/100KW 1.8 (ZRE142, ZRE152) 2ZR-FE _E14_,_E14_,_E14_,_E14_,_E14_,_E15_ Front-Wheel Drive Sedan (10/06-07/14)



• COROLLA
•  Petrol 2L/107KW 2.0 VVT-i (ZRE173) 3ZR-FE _E18_,ZRE1_ Front-Wheel Drive Sedan (01/14-06/19)
•  Petrol 1.6L/97KW 1.6 VVTi (ZRE210) 1ZR-FAE,1ZR-FE _E21_ Front-Wheel Drive Sedan (01/19-on)
•  Petrol 1.6L/90KW 1.6 VVTi (ZRE210) 1ZR-FAE,1ZR-FE _E21_ Front-Wheel Drive Sedan (01/19-on)
•  Petrol 1.6L/90KW 1.6 (ZRE171, ZRE181) 1ZR-FE _E18_,ZRE1_ Front-Wheel Drive Sedan (06/13-12/18)
•  Petrol 1.8L/111KW 1.8 (ZRE142) 2ZR-FE _E14_,_E14_,_E14_,_E14_,_E14_,_E15_ Front-Wheel Drive Sedan (08/10-11/13)
•  Petrol 2L/116KW 2.0 VVTi (ZRE143) 3ZR-FE _E14_,_E14_,_E14_,_E14_,_E14_,_E15_ Front-Wheel Drive Sedan (08/10-11/13)



• COROLLA ALTIS
•  Petrol 1.8L/103KW 1.8 Dual VVTi (ZRE172, ZRE182) 2ZR-FBE,2ZR-FE _E18_,ZRE1_ Front-Wheel Drive Sedan (01/14-12/18)
•  Petrol 1.6L/90KW 1.6 BiFuel (ZRE171) 1ZR-FE _E18_,ZRE1_ Front-Wheel Drive Sedan (06/13-12/18)
•  Petrol 2L/105KW 2.0 VVT-i (ZRE173_) 3ZR-FE _E18_,ZRE1_ Front-Wheel Drive Sedan (10/13-12/18)
•  Petrol 1.8L/111KW 1.8 VVT-i (ZRE172) 2ZR-FE _E18_,ZRE1_ Front-Wheel Drive Sedan (12/13-12/18)



• WISH
•  Petrol 1.8L/98KW 1.8 4WD (ZGE25_) 2ZR-FAE _E2_ All-wheel Drive MPV (04/09-03/12)
•  Petrol 1.8L/106KW 1.8 (ZGE20_) 2ZR-FAE _E2_ Front-Wheel Drive MPV (04/09-10/19)
•  Petrol 2L/116KW 2.0 (ZGE21_, ZGE22_) 3ZR-FAE _E2_ Front-Wheel Drive MPV (04/09-10/19)
•  Petrol 2L/107KW 2.0 (ZGE21_, ZGE22_) 3ZR-FAE,3ZR-FE _E2_ Front-Wheel Drive MPV (04/09-on)
•  Petrol 2L/104KW 2.0 (ZGE21R) 3ZR-FE _E2_ Front-Wheel Drive MPV (11/09-on)



• Caution:
• Before any service work on the belt is begun to be sure that the motor or engine is switched off and cannot be started.



• Important:
• Check for worn tensioners and idler pulleys. This is the best time to replace these part these parts if needed.



• Belt Removal:
• Loosen adjustment or pivot bolts.
• Move adjustment unit to minimum position.
• Remove belt.



• Belt Installation:
• Place new belt loosely on pulleys. Do not pry onto pulleys.
• Tension belt according to manufacturer's instruction.
• Run drive 5 minutes and retension. Belts must be tight enough to prevent slipping when drive is fully loaded.
