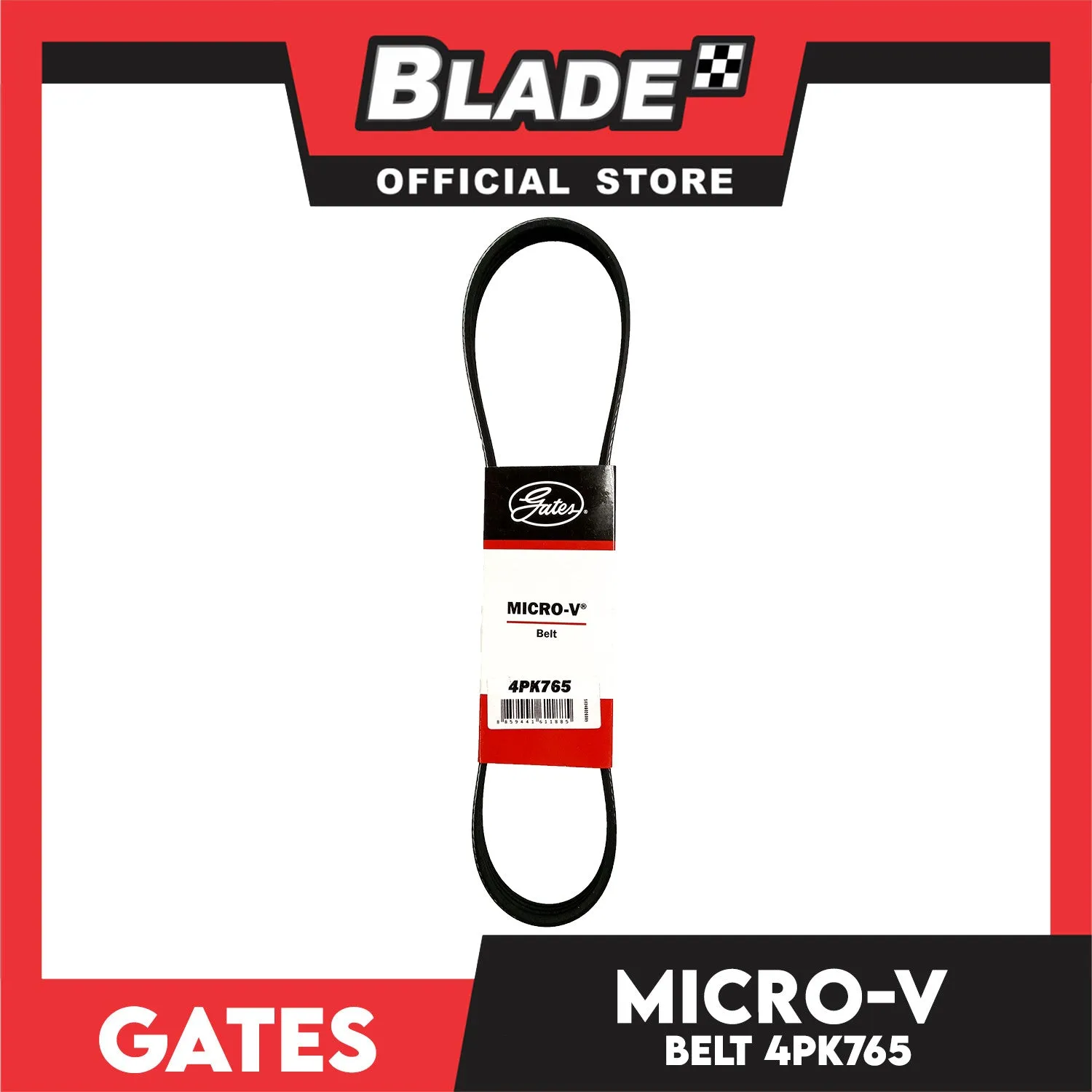

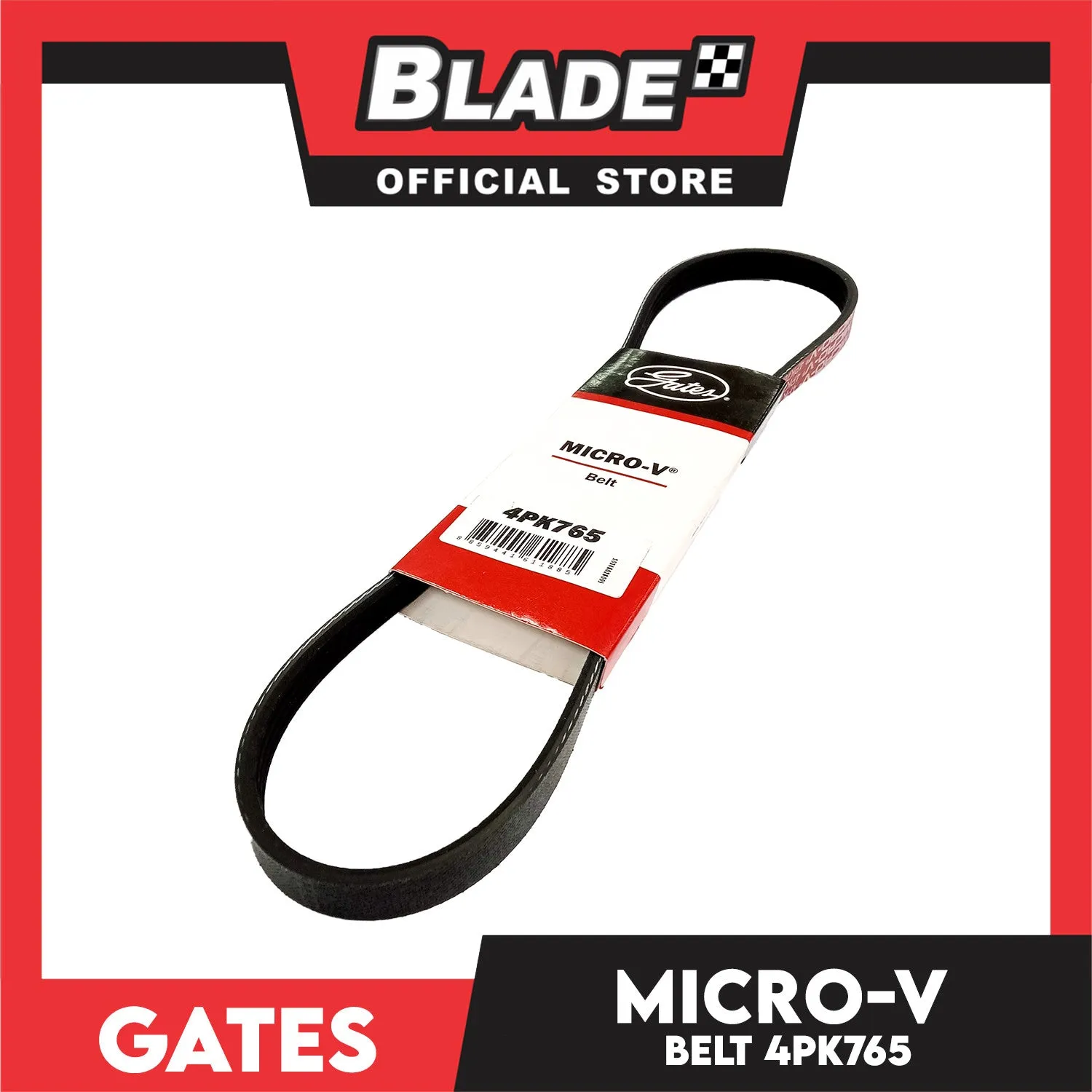

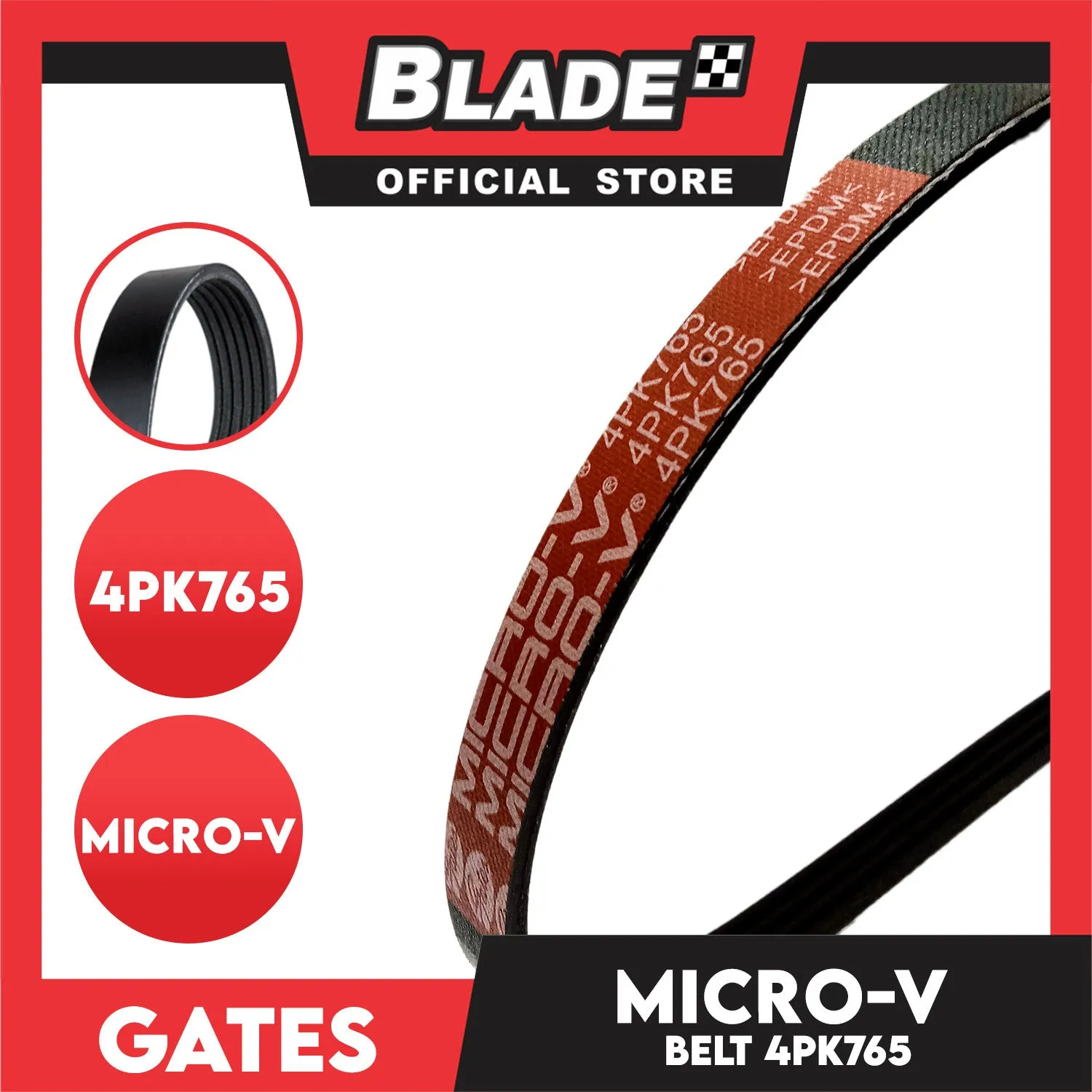

• Micro-V
• Part No: 4PK765
• Material: EPDM (ethylene propylene diene Monomer (M-class) rubber)
• Colour: Black
• Number of ribs: 4
• Width (mm): 14
• Length (mm): 765



• Lasts Longer - Lasts up to 50% longer than any retail belt on the market.
• Ultimate Dependability - Eliminates belt noise and premature failure by utilising materials like Aramid Fibre found in bullet proof vests and crack and heat resistant EPDM materials.
• Improves Component Performance – Compensates for worn and misaligned components in high kilometre vehicles through superior stability.



• Suitable with:
• HONDA CIVIC
•  Petrol 1.6L/136KW 1.6 VTEC Type R (EK9) B16B EJ,EK Front-Wheel Drive Hatchback (08/97-09/00)



• SUZUKI
• ERTIGA
•  Petrol 1.4L/70KW 1.4 VVT K14B AVI_ Front-Wheel Drive MPV (04/12-12/18)
•  Petrol 1.4L/72KW 1.4 VVT (AVI414) K14B AVI_ Front-Wheel Drive MPV (10/15-12/18)



• EVERY
•  Petrol 0.7L/36KW 0.7 K6A DA64_ Rear-Wheel Drive Bus (01/07-12/09)
•
• SOLIO
•  Petrol 1.2L/67KW 1.2 K12B MA15_ Front-Wheel Drive MPV (06/11-11/15)
•
• SPLASH
•  Petrol 1.2L/63KW 1.2 K12M EX Front-Wheel Drive Hatchback (05/09-on)



• SWIFT
•  Petrol 1.2L/67KW 1.2 (AZH 412, AZG 412, ZC72S) K12B FZ,NZ Front-Wheel Drive Hat



• Caution:
• Before any service work on the belt is begun to be sure that the motor or engine is switched off and cannot be started.



• Important:
• Check for worn tensioners and idler pulleys. This is the best time to replace these part these parts if needed.



• Belt Removal:
• Loosen adjustment or pivot bolts.
• Move adjustment unit to minimum position.
• Remove belt.



• Belt Installation:
• Place new belt loosely on pulleys. Do not pry onto pulleys.
• Tension belt according to manufacturer's instruction.
• Run drive 5 minutes and retension. Belts must be tight enough to prevent slipping when drive is fully loaded.
