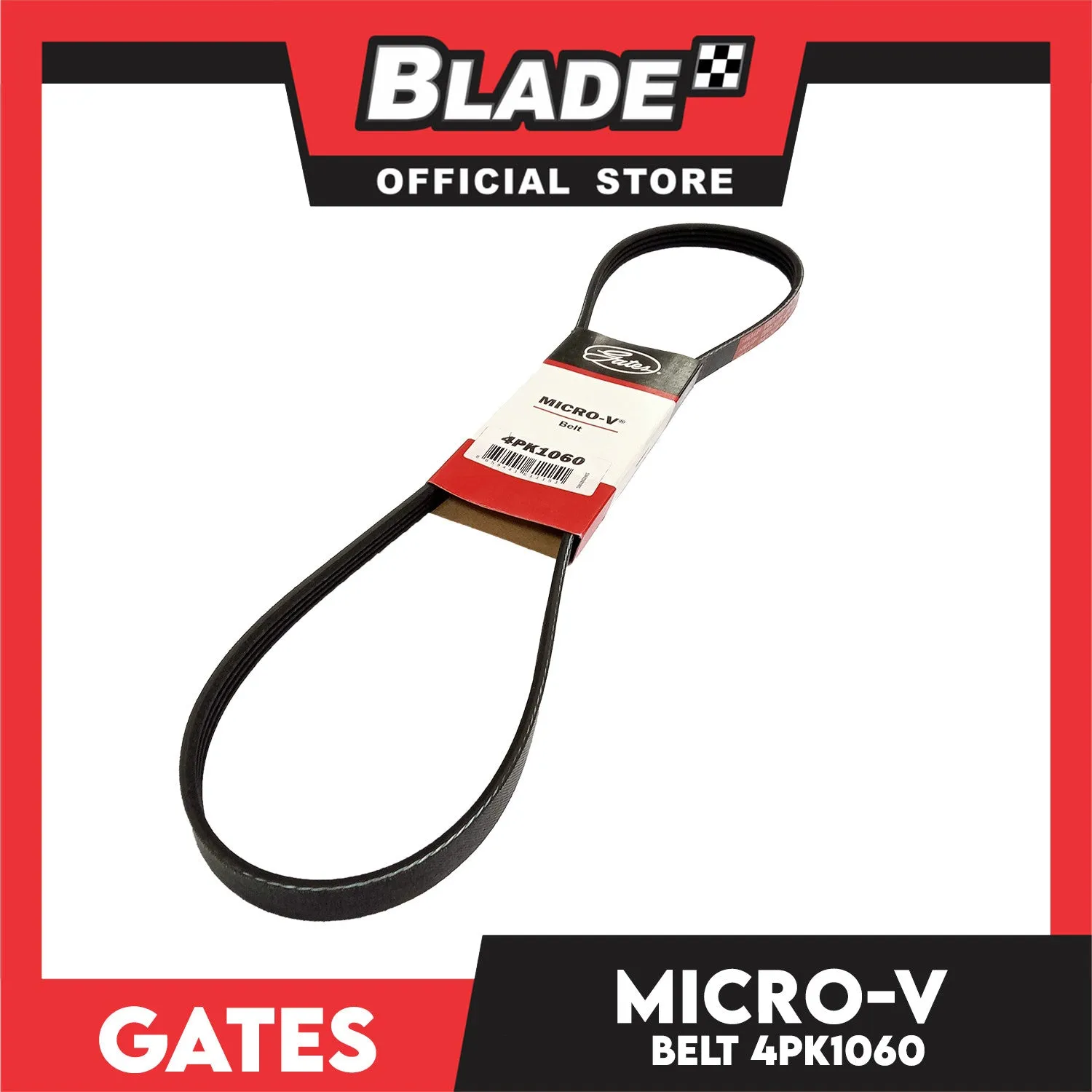

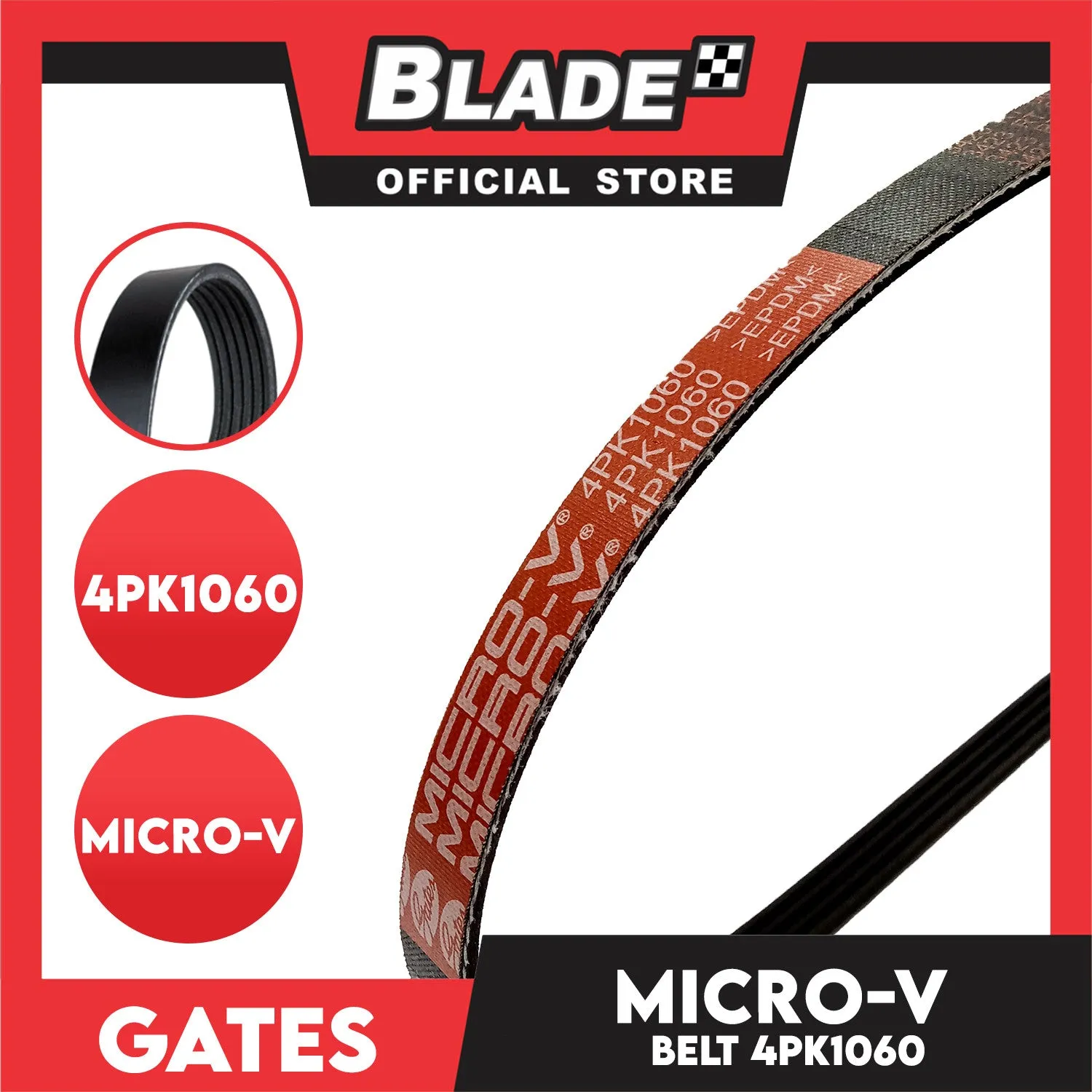

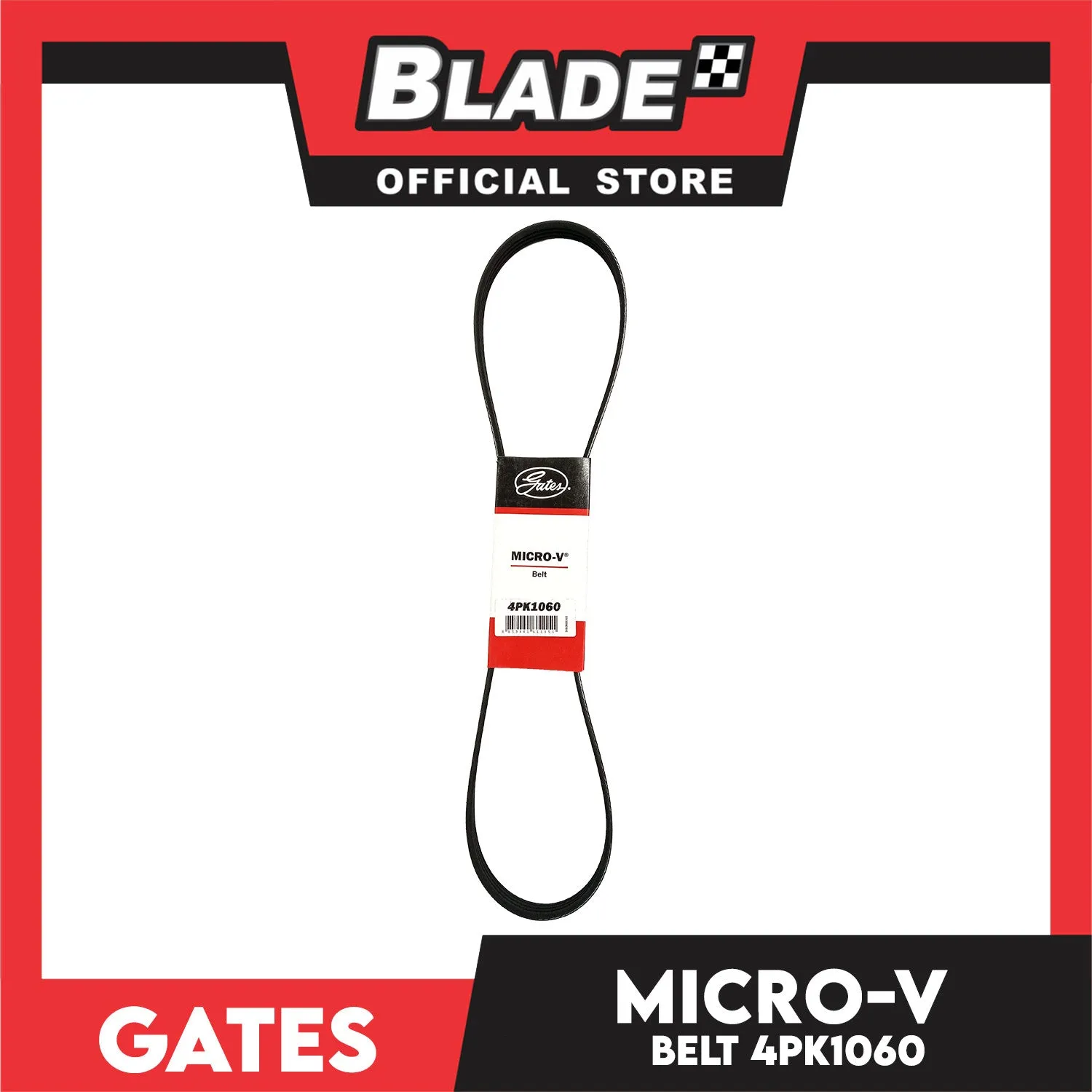

• Micro-V
• Part No: 4PK1060
• Material: EPDM (ethylene propylene diene Monomer (M-class) rubber)
• Colour: Black
• Number of ribs: 4
• Width (mm): 14
• Length (mm): 1060
• Qty: 1pc



• Lasts Longer - Lasts up to 50% longer than any retail belt on the market.
• Ultimate Dependability - Eliminates belt noise and premature failure by utilising materials like Aramid Fibre found in bullet proof vests and crack and heat resistant EPDM materials.
• Improves Component Performance – Compensates for worn and misaligned components in high kilometre vehicles through superior stability.



• Suitable with:
• CHEVROLET
• CORVETTE
•  Petrol 7L/377KW Z06 7.0 LS7 C6 Rear-Wheel Drive Coupe (03/06-on)



• HONDA
• ACCORD
•  Petrol 2.3L/113KW 2.3 (CL3, S86) F23Z5,F23A1 CF,CG,CH,CK Front-Wheel Drive Sedan (01/01-06/03)
•  Petrol 2.2L/108KW 2.2 Vti (SV4, CD5) F22B1,F22B4 CC,CD Front-Wheel Drive Sedan (01/94-12/97)
•  Petrol 2L/110KW 2.0 Vtec (CF9, CF0, CF1, CF2) F20B2 CF,CG,CH,CK Front-Wheel Drive Sedan (01/99-12/02)
•  Petrol 2.3L/110KW 2.3 (CG5, CF9, CF0, CF1, CF2) F23A1 CF,CG,CH,CK Front-Wheel Drive Sedan (01/99-12/02)
•  Petrol 2.2L/110KW 2.2 i VTEC (CE9) F22Z2 CD,CE,CF_ Front-Wheel Drive Sedan (02/96-10/98)
•  Petrol 2.3L/113KW 2.3 VTi (CG3) F23A3 CG Front-Wheel Drive Coupe (02/98-10/02)
•  Petrol 2L/85KW 2.0 i (CD4) F20Z2 CC,CD Front-Wheel Drive Sedan (03/93-01/96)
•  Petrol 2L/96KW 2.0 i S (CD4) F20Z1 CC,CD Front-Wheel Drive Sedan (06/93-12/97)
•  Petrol 2.2L/103KW 2.2 EXi (CD5) F22B3 CC,CD Front-Wheel Drive Sedan (10/93-12/97)
•  Petrol 1.8L/100KW 1.8 i (CG8) F18B2 CF,CG,CH,CK Front-Wheel Drive Sedan (10/98-12/02)



• ODYSSEY
•  Petrol 2.2L/102KW 2.2 4x4 (RA2) F22B9 RA All-wheel Drive MPV (06/94-09/97)
•  Petrol 2.3L/110KW 2.3 (RA6) F23A RA_,RA6,RL1 Front-Wheel Drive MPV (07/02-09/03)
•  Petrol 2.3L/110KW 2.3 (RA3) F23A7 RA_ Front-Wheel Drive MPV (10/97-12/99)



• HYUNDAI
• GRAND STAREX
•  Diesel 2.5L/74KW 2.5 TDCi D4BH TQ Rear-Wheel Drive Bus (09/07-on)



• H-1
•  Diesel 2.5L/73KW 2.5 D D4BH A1 Rear-Wheel Drive Platform/Chassis (06/00-10/06)
•  Diesel 2.5L/74KW 2.5 TDCi D4BH TQ Rear-Wheel Drive Van (09/07-on)



• H-1 / STAREX
•  Diesel 2.5L/74KW 2.5 TCi D4BH A1 Rear-Wheel Drive Bus (05/04-12/07)
•
• H100
•  Diesel 2.6L/58KW 2.6 D D4BB HR Rear-Wheel Drive Platform/Chassis (01/04-on)
•  Diesel 2.5L/74KW 2.5 TD 4D56-T HR Rear-Wheel Drive Platform/Chassis (11/06-on)



• STAREX
•  Diesel 2.5L/59KW 2.5 TD 4WD D4BF A1 All-wheel Drive Bus (02/98-04/04)
•  Diesel 2.5L/59KW 2.5 TD D4BF A1 Rear-Wheel Drive Bus (06/97-04/04)
•  Diesel 2.5L/73KW 2.5 TCi D4BH A1 Rear-Wheel Drive Bus (10/97-12/07)



• KIA
• PREGIO
•  Diesel 2.5L/69KW 2.5 TCi D D4BH TB Rear-Wheel Drive Van (09/02-on)Caution:
• Before any service work on the belt is begun to be sure that the motor or engine is switched off and cannot be started.



• Important:
• Check for worn tensioners and idler pulleys. This is the best time to replace these part these parts if needed.



• Belt Removal:
• Loosen adjustment or pivot bolts.
• Move adjustment unit to minimum position.
• Remove belt.



• Belt Installation:
• Place new belt loosely on pulleys. Do not pry onto pulleys.
• Tension belt according to manufacturer's instruction.
• Run drive 5 minutes and retension. Belts must be tight enough to prevent slipping when drive is fully loaded.
