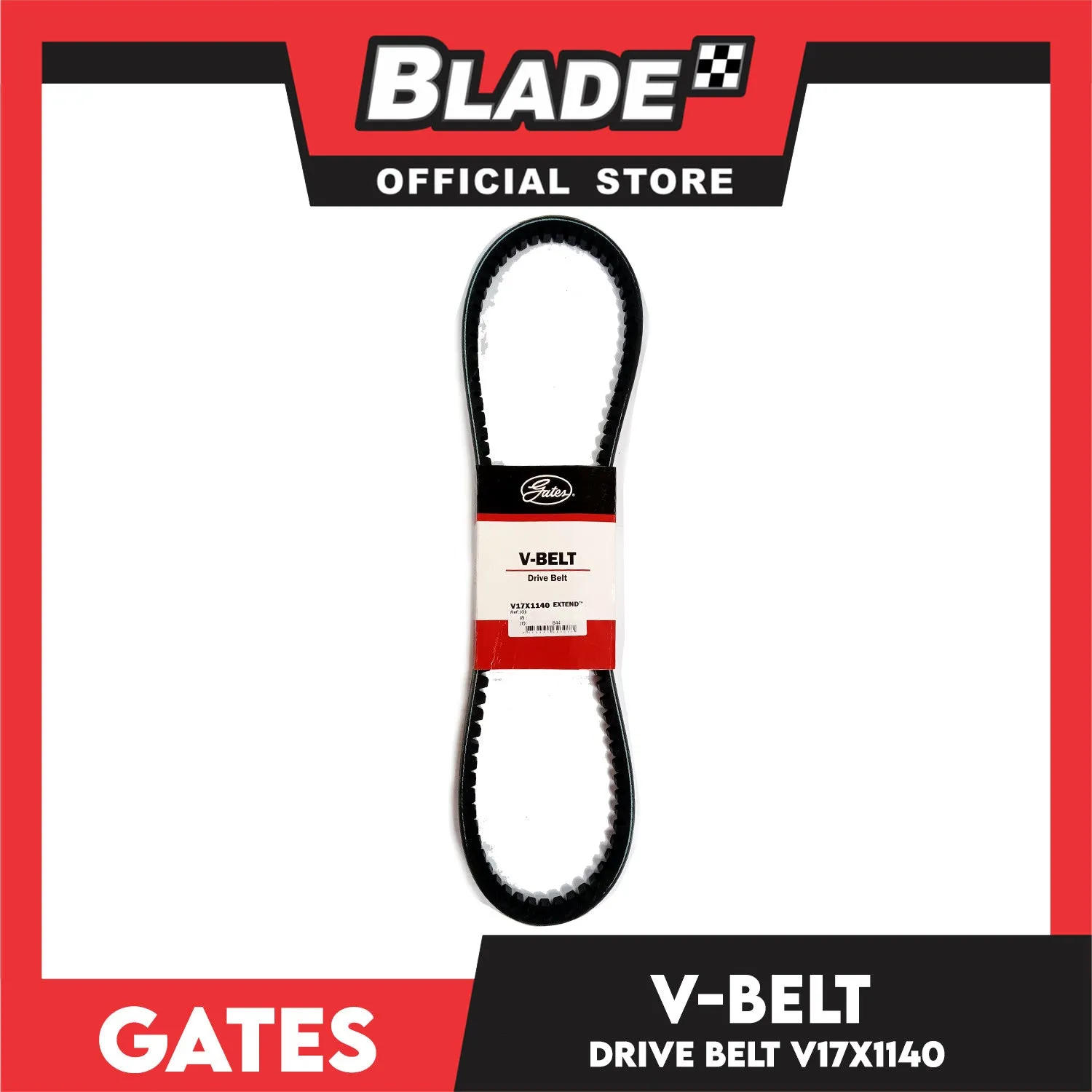

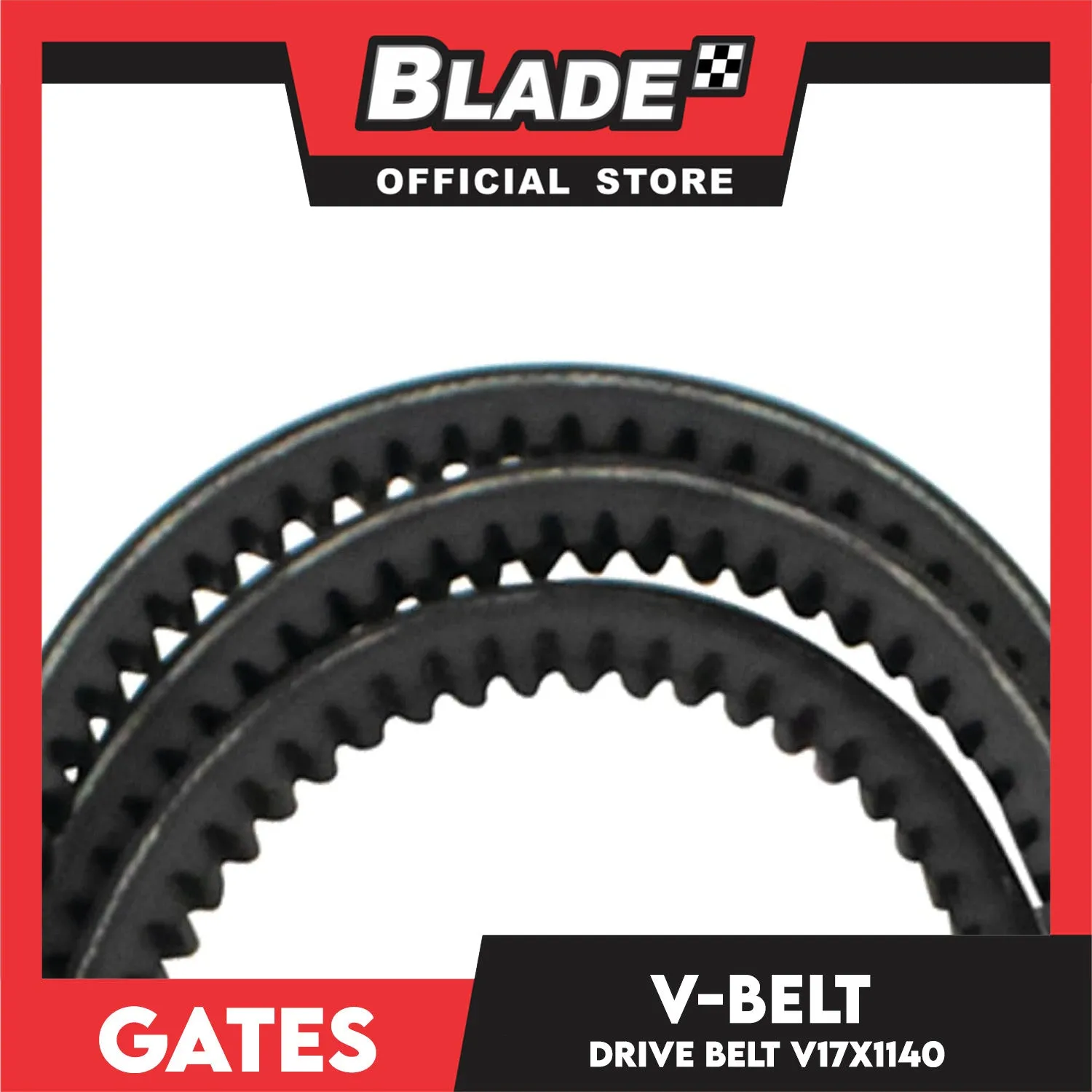

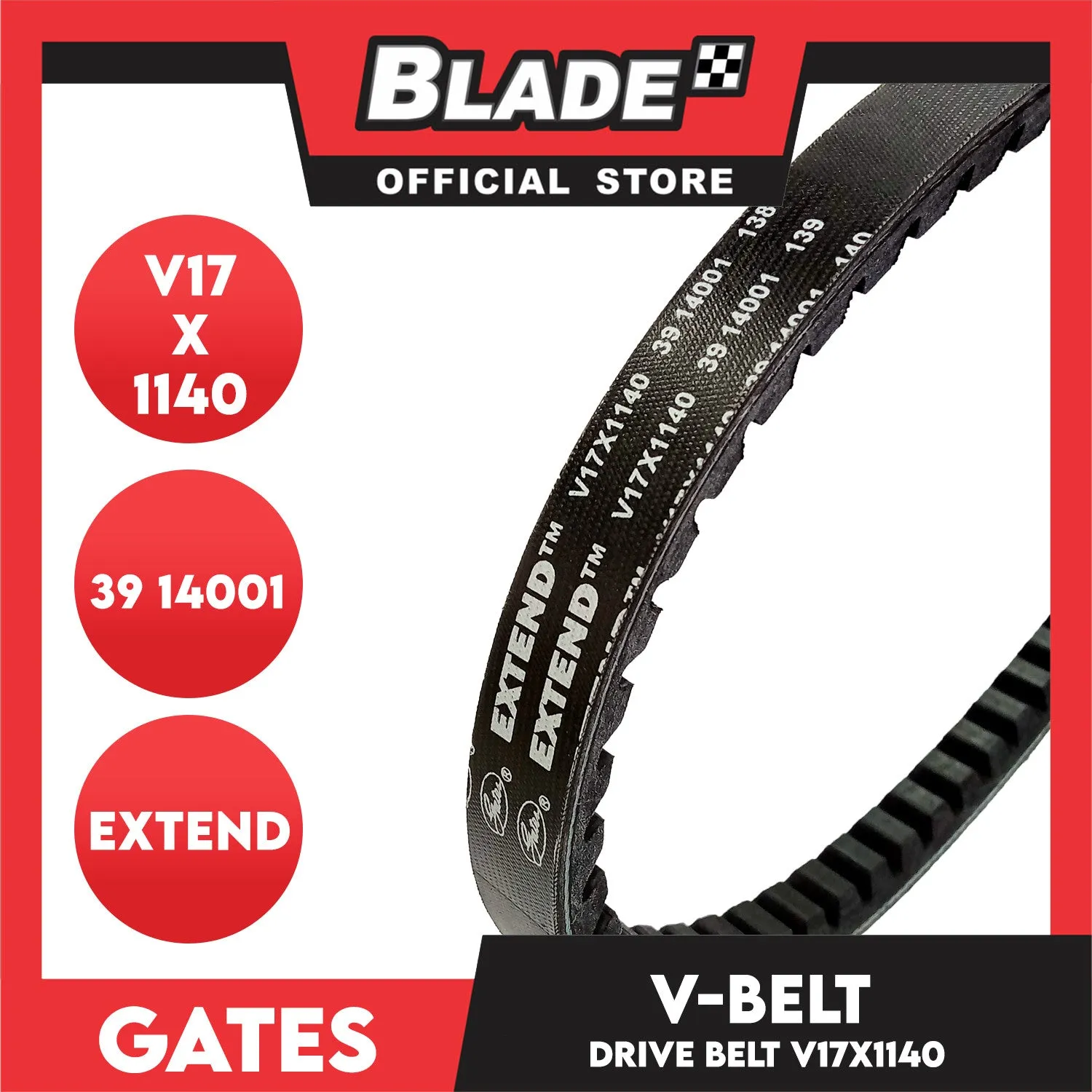

• V-Belt Extend
• Part No: V17X1140
• Material: Polychloropren (neoprene)
• Colour: Black
• Width (mm): 17
• Length (mm): 1140
• Outer Length (mm): 1148
• Rotation angle (°): 36
• Qty: 1pc



• Fibre loaded rubber material provides excellent heat and wear resistance.
• Molded notch construction provides reduced bending stresses around small pulleys.
• Form grinding provides a smooth contact point between the belt surface and the pulleys.



• Caution:
• Before any service work on the belt is begun to be sure that the motor or engine is switched off and cannot be started.



• Important:
• Check for worn tensioners and idler pulleys. This is the best time to replace these part these parts if needed.



• Belt Removal:
• Loosen adjustment or pivot bolts.
• Move adjustment unit to minimum position.
• Remove belt.



• Belt Installation:
• Place new belt looseley on pulleys. Do not pry onto pulleys.
• Tension belt according to manufacturer's instruction.
• Run drive 5 minutes and retension. Belts must be tight enough to prevent slipping when drive is fully loaded.
