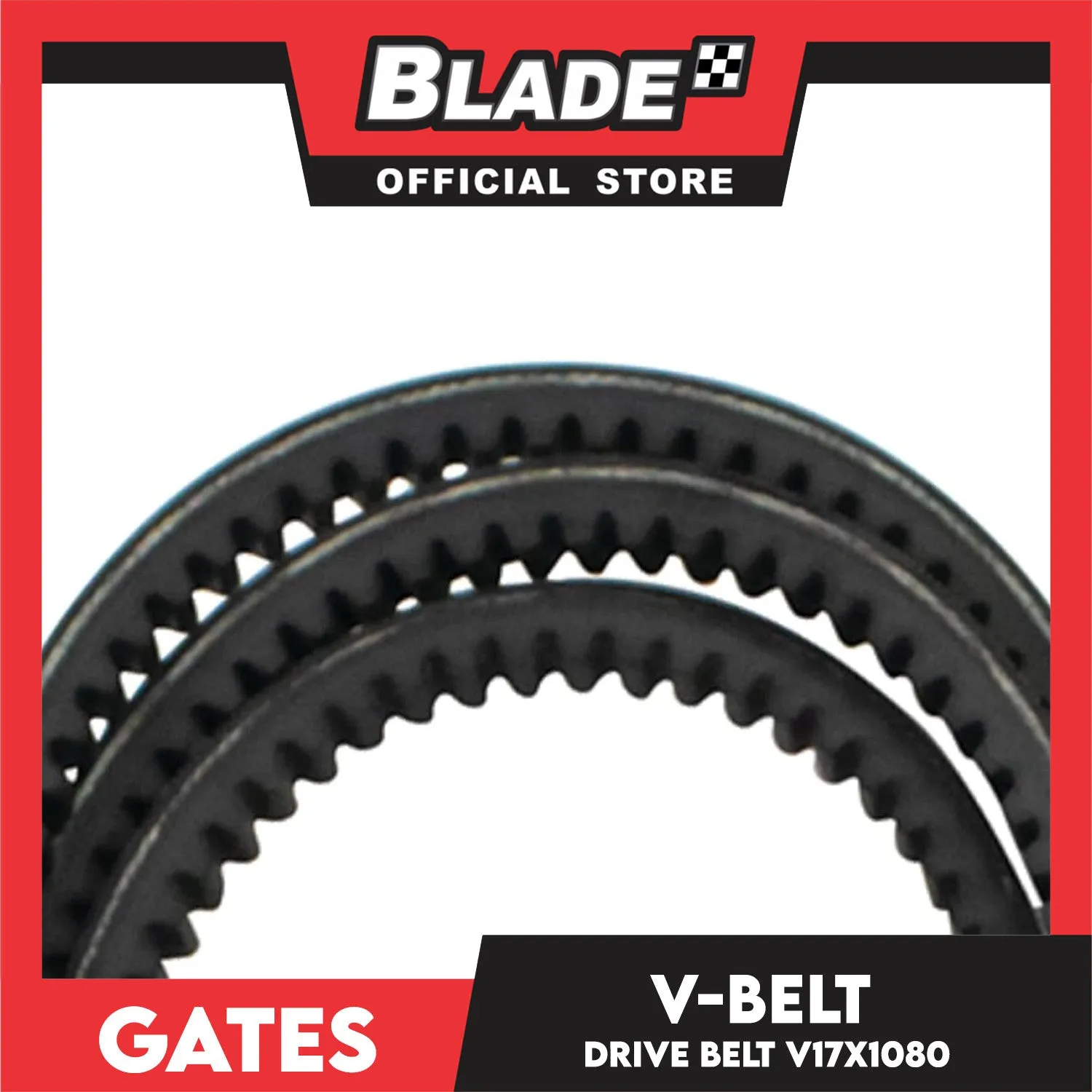

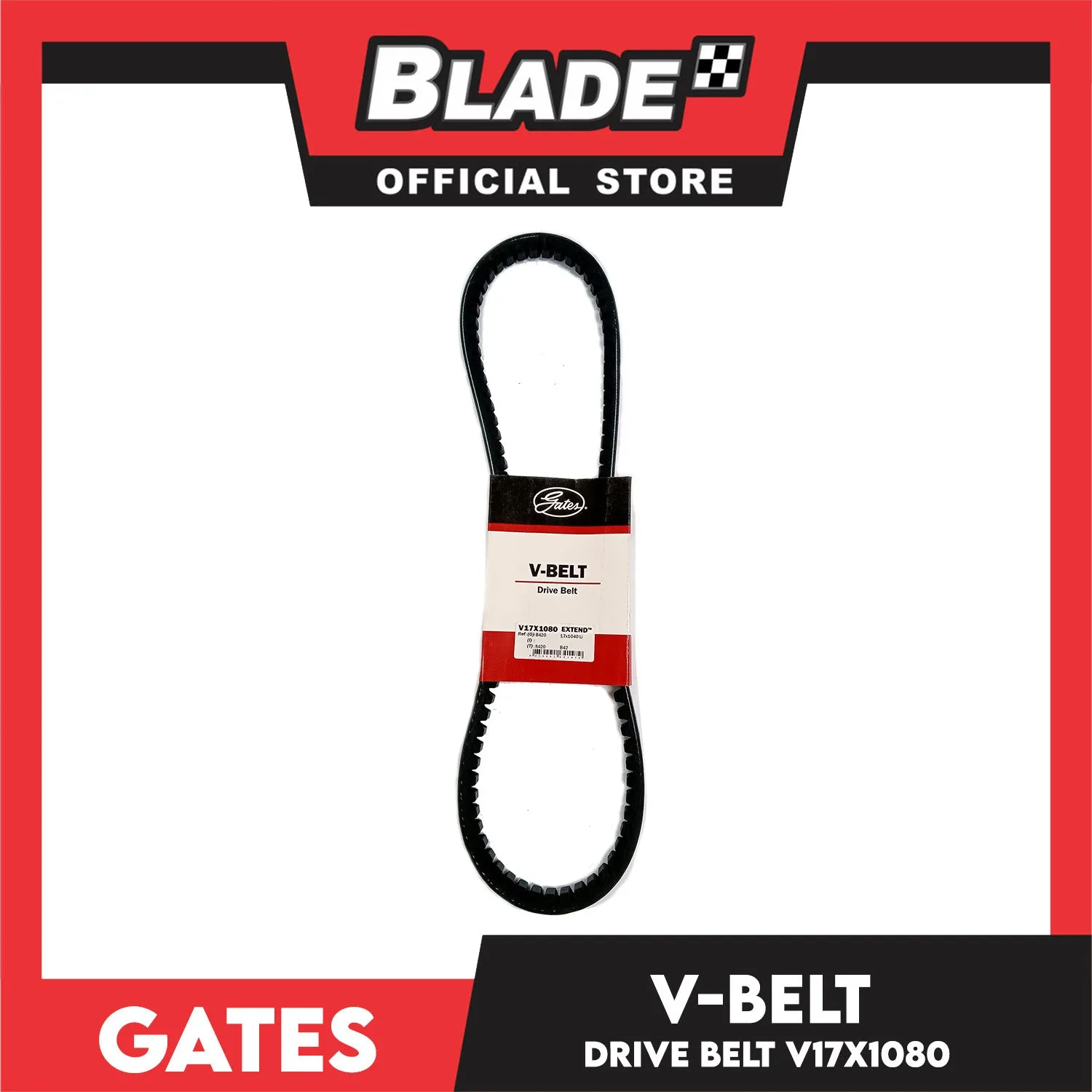

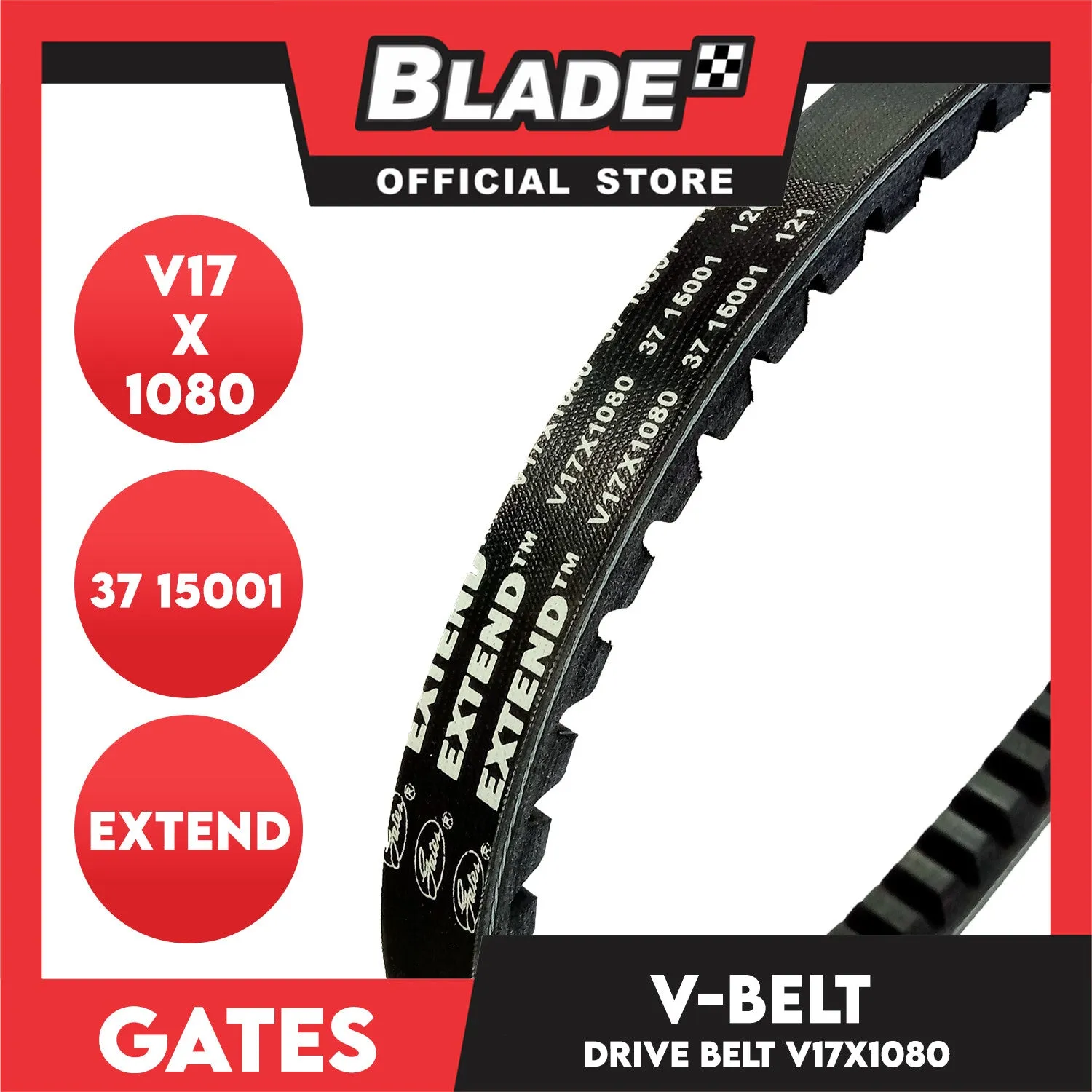

• V-Belt Extend
• Part No: V17X1080
• Material: Polychloropren (neoprene)
• Colour: Black
• Width (mm): 17
• Length (mm): 1080
• Outer Length (mm): 1088
• Rotation angle (°): 36
• Qty: 1pc



• Fibre loaded rubber material provides excellent heat and wear resistance.
• Molded notch construction provides reduced bending stresses around small pulleys.
• Form grinding provides a smooth contact point between the belt surface and the pulleys.



• Suitable with:
• MITSUBISHI
• CYCLONE
•  Diesel 2.5L/51KW 2.5 D (K14T) 4D56 (8V) K0_T,K1_T,K2_T,K3_T,ME,ME,MF,MF,MG,MG,MH,MH,MJ,MJ Rear-Wheel Drive Ute (11/86-10/96)
•  Diesel 2.5L/64KW 2.5 TD 4WD (K34T) 4D56-T K0_T,K1_T,K2_T,K3_T,ME,ME,MF,MF,MG,MG,MH,MH,MJ,MJ All-wheel Drive Ute (11/92-08/96)
•  Diesel 2.5L/51KW 2.5 D 4WD (K24T) 4D56 (8V) K0_T,K1_T,K2_T,K3_T,ME,ME,MF,MF,MG,MG,MH,MH,MJ,MJ All-wheel Drive Ute (12/87-05/93)
•
• DELICA
•  Diesel 2.5L/55KW 2.5 D (P05V, P15V) 4D56 (8V) P0_V,P1_V,P2_V,SF,SG,SH,SJ,WA Rear-Wheel Drive Van (09/91-09/03)
•  Diesel 2.5L/51KW 2.5 D (P05V, P05W, P15V) 4D56 (8V) P0_V,P1_V,P2_V,SF,SG,SH,SJ,WA Rear-Wheel Drive Van (11/86-02/06)
•  Diesel 2.5L/51KW 2.5 D (P05W, P15W, P25W) 4D56 (8V) P0_W,P1_W,P2_W,P3_W,SD,SE,SF,SG,SH,SJ,WA Rear-Wheel Drive Bus (11/86-05/04)



• L300 (
•  Diesel 2.5L/64KW 2.5 TD 4D56-T P0_V,P1_V,P2_V,SF,SG,SH,SJ,WA Rear-Wheel Drive Van (02/87-08/97)
•  Diesel 2.5L/52KW 2.5 (L039P) 4D56 (8V) L03_P Rear-Wheel Drive Platform/Chassis (01/05-06/07)
•  Diesel 2.5L/51KW 2.5 D (L039P) 4D56 (8V) L03_P Rear-Wheel Drive Platform/Chassis (11/86-04/94)



• PAJERO
•  Diesel 2.5L/73KW 2.5 TDiC (V44W, V24W) 4D56-T NH,NJ,NK,NL,V2_W,V3_W,V4_W,V5_W All-wheel Drive Closed Off-Road Vehicle (03/91-08/99)
•  Diesel 2.5L/64KW 2.5 TD (L044G, L049G) 4D56-T L04_G,L14_G,NA,NB,NC,ND,NE,NF,NG All-wheel Drive Closed Off-Road Vehicle (04/87-12/91)
•  Diesel 2.5L/73KW 2.5 TD 4WD (V24C, V24W) 4D56-TD V2_W,V4_W All-wheel Drive Open Off-Road Vehicle (12/90-04/00)
•  Diesel 2.5L/62KW 2.5 TDiC 4WD (V34W) 4D56 (8V) NH,NJ,NK,NL,V2_W,V3_W,V4_W,V5_W All-wheel Drive Closed Off-Road Vehicle (12/90-06/93)
•  Diesel 2.5L/73KW 2.5 TD 4WD (V24C, V24W) 4D56-TD NH,NJ,NK,NL,V2_W,V3_W,V4_W,V5_W All-wheel Drive Closed Off-Road Vehicle (12/90-10/99)



• Caution:
• Before any service work on the belt is begun to be sure that the motor or engine is switched off and cannot be started.



• Important:
• Check for worn tensioners and idler pulleys. This is the best time to replace these part these parts if needed.



• Belt Removal:

1. Loosen adjustment or pivot bolts.
2. Move adjustment unit to minimum position.
3. Remove belt.



• Belt Installation:

1. Place new belt looseley on pulleys. Do not pry onto pulleys.
2. Tension belt according to manufacturer's instruction.
3. Run drive 5 minutes and retension. Belts must be tight enough to prevent slippingwhen drive is fully loaded.
