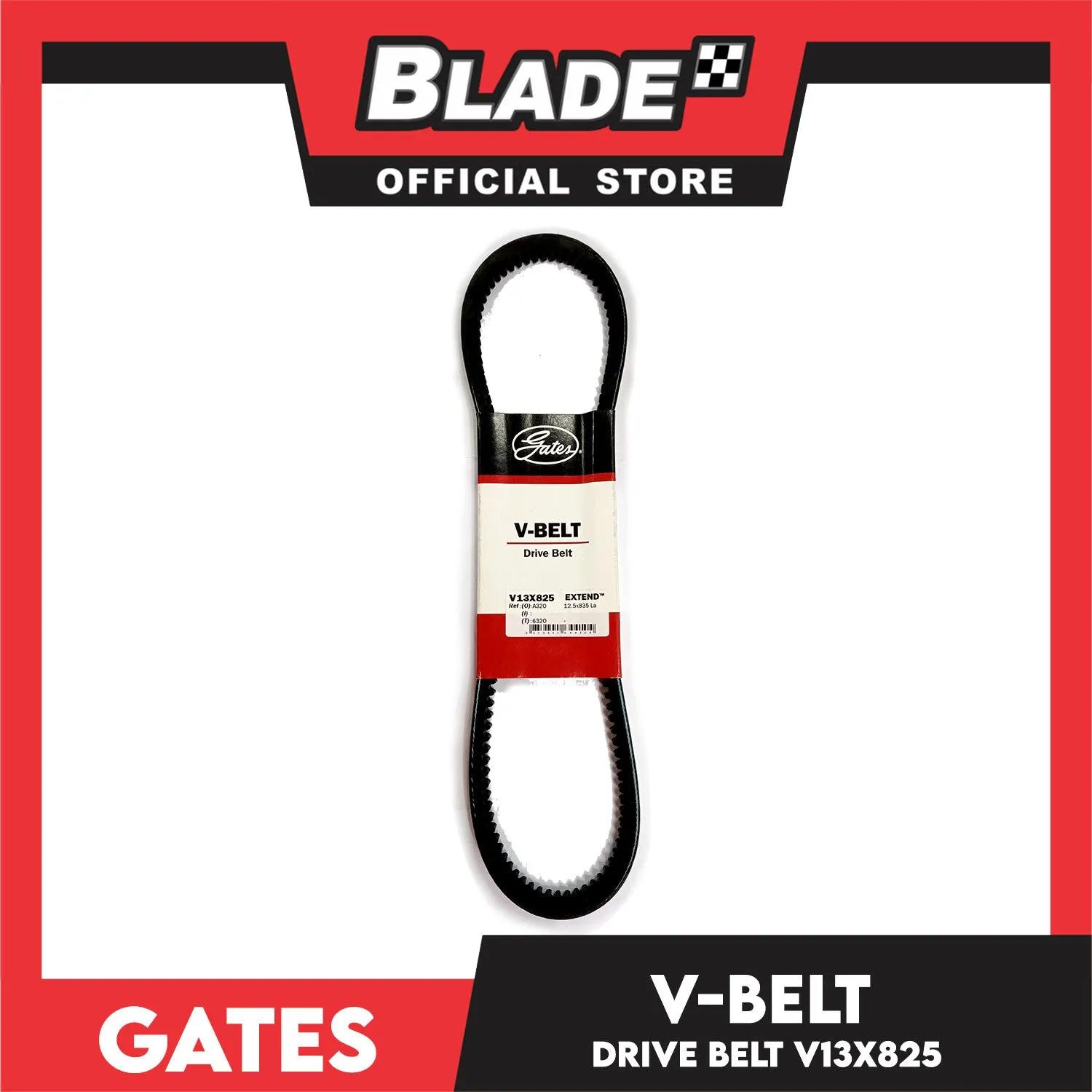

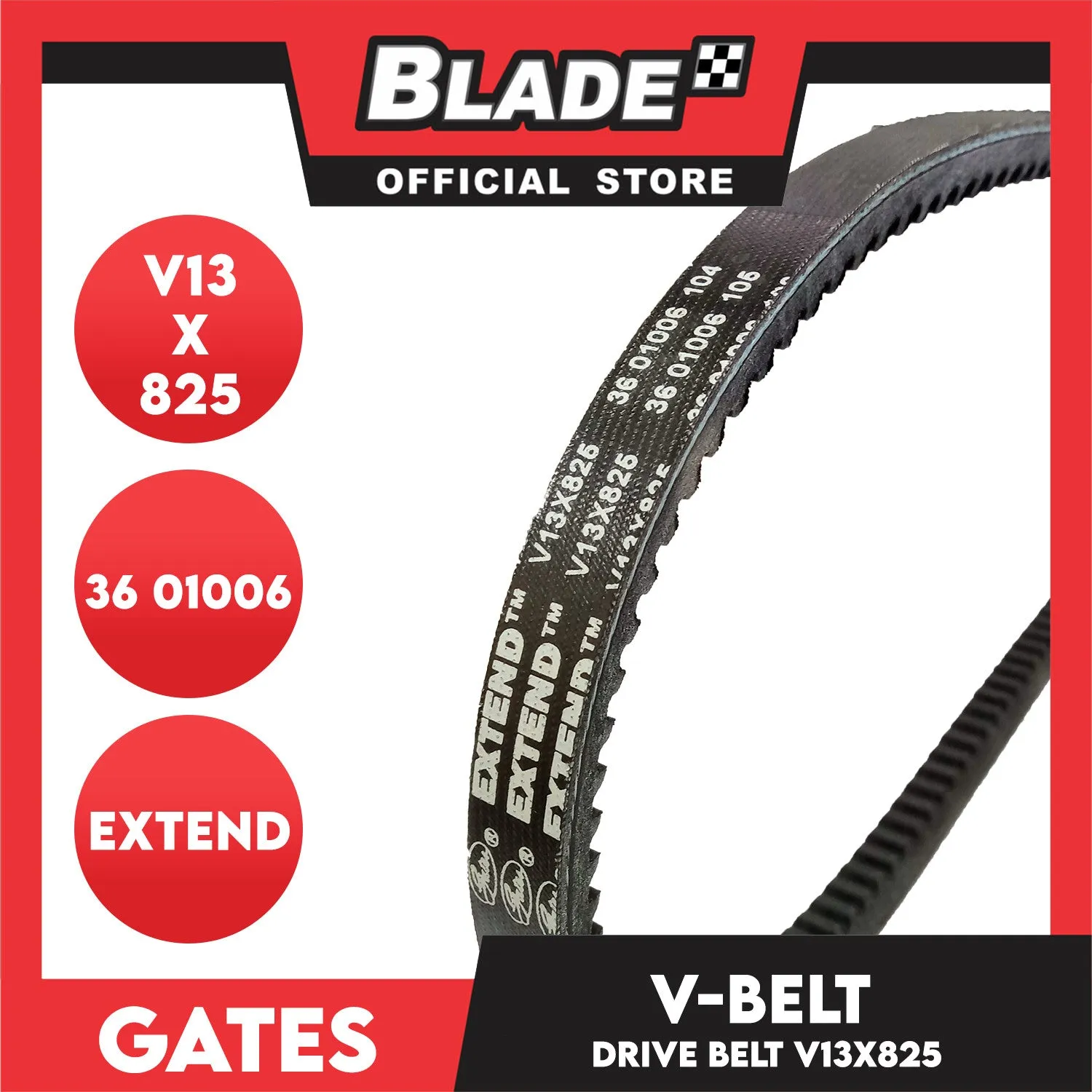

- V-Belt Extend
- Part No: V13X825
- Material: Polychloropren (neoprene)
- Colour: Black
- Width (mm): 13
- Length (mm): 825
- Outer Length (mm): 831
- Rotation angle (°): 36
- Qty: 1pc
- Fibre loaded rubber material provides excellent heat and wear resistance.

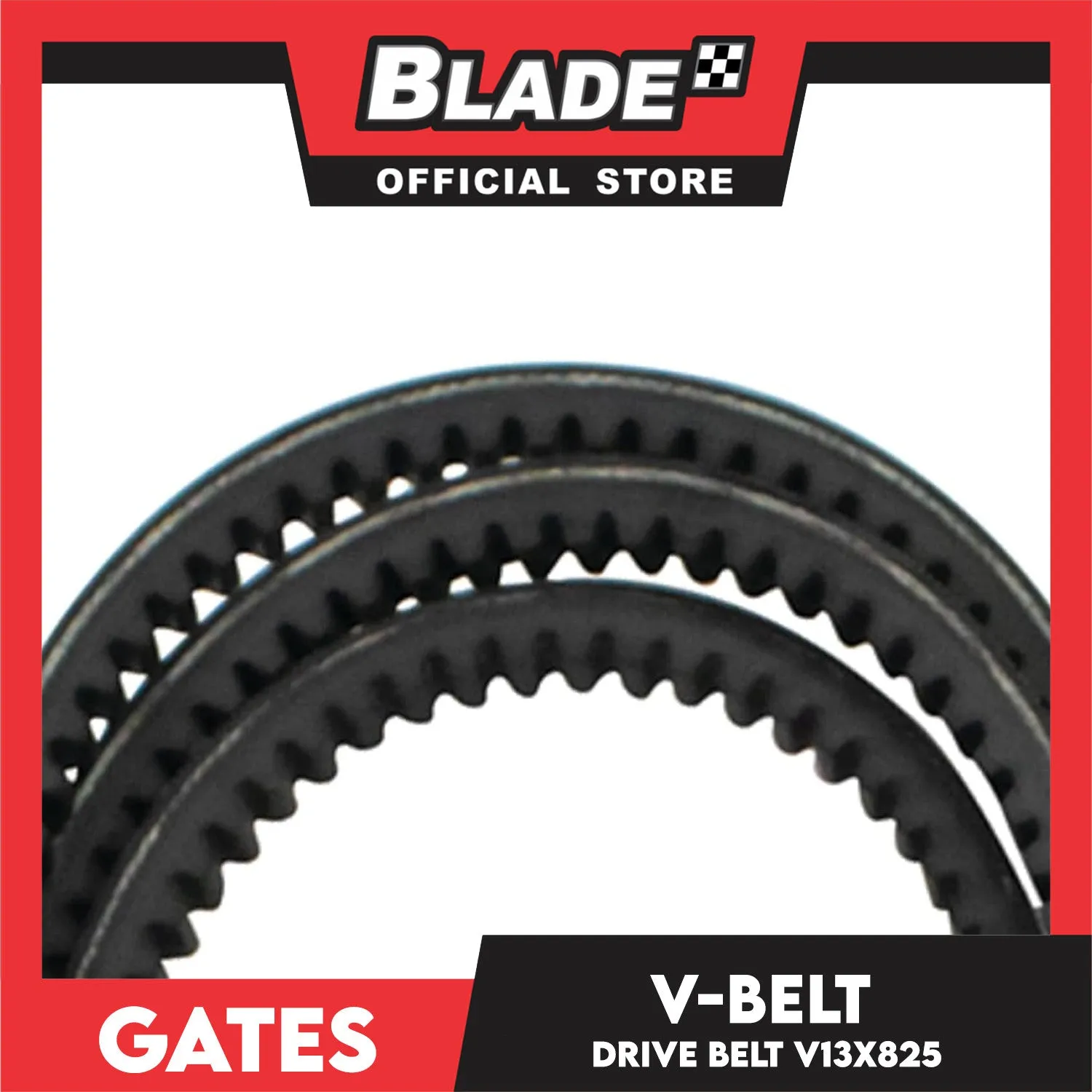

- Molded notch construction provides reduced bending stresses around small pulleys.
- Form grinding provides a smooth contact point between the belt surface and the pulleys.
- Suitable with:
- TOYOTA
- KIJANG
- Petrol 2L/71KW 2.0 (RZF71, RZF81, RZF82) 1RZ-E _F7_,_F8_ Rear-Wheel Drive MPV (10/00-12/04)
- Petrol 1.8L/59KW 1.8 (KF70, KF80) 7K _F7_,_F8_ Rear-Wheel Drive MPV (12/96-05/04)
- Petrol 1.8L/58KW 1.8 (KF60) 7K _F6_ Rear-Wheel Drive Platform/Chassis (12/96-11/06)
- REVO
- Petrol 2L/77KW 2.0 (RZF81, RZF82) 1RZ-E _F7_,_F8_ Rear-Wheel Drive MPV (02/01-12/04)
- Caution:
- Before any service work on the belt is begun to be sure that the motor or engine is switched off and cannot be started.
- Important:
- Check for worn tensioners and idler pulleys. This is the best time to replace these part these parts if needed.
- Belt Removal:
- Loosen adjustment or pivot bolts.
- Move adjustment unit to minimum position.
- Remove belt.
- Belt Installation:
- Place new belt looseley on pulleys. Do not pry onto pulleys.
- Tension belt according to manufacturer's instruction.
- Run drive 5 minutes and retension. Belts must be tight enough to prevent slippingwhen drive is fully loaded.
