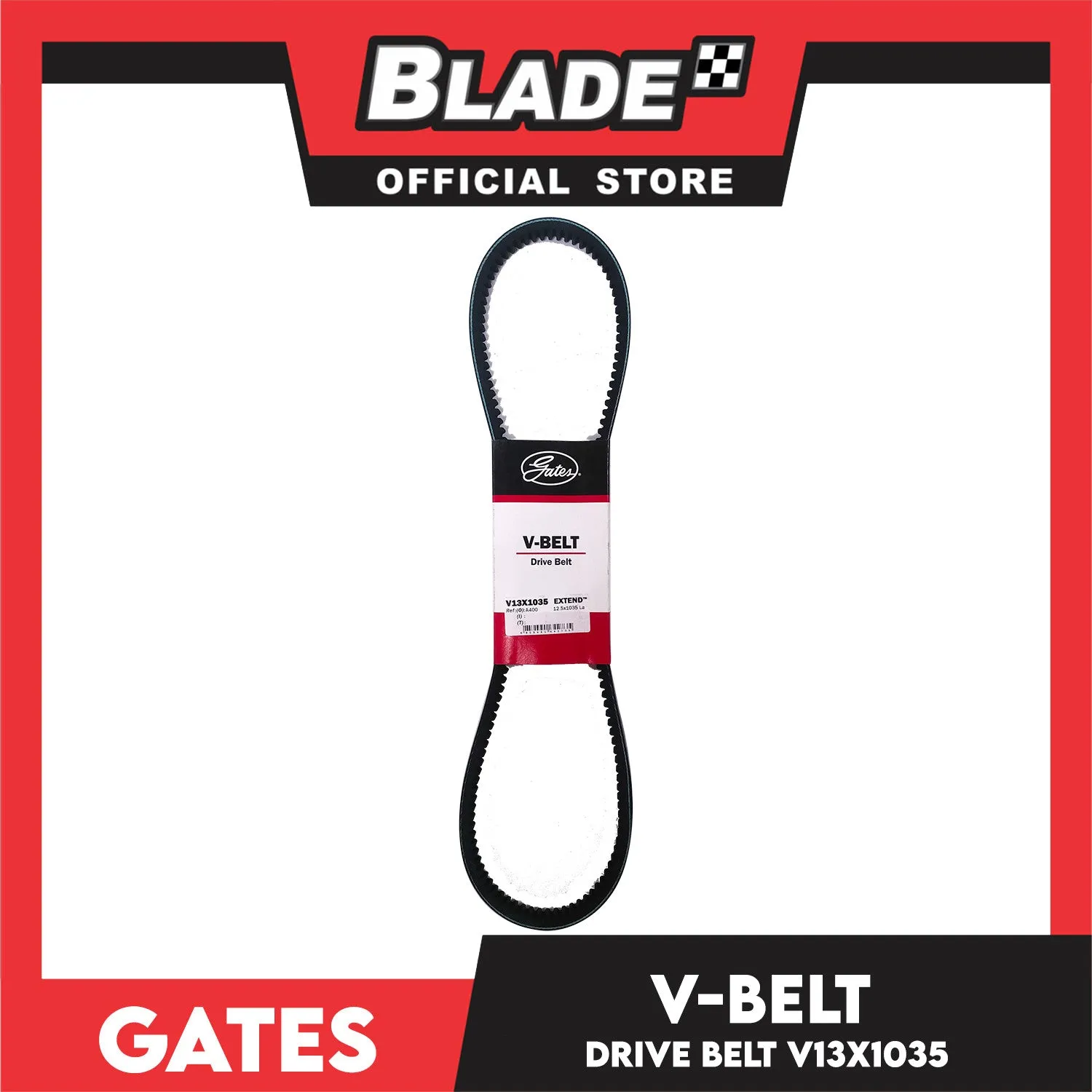

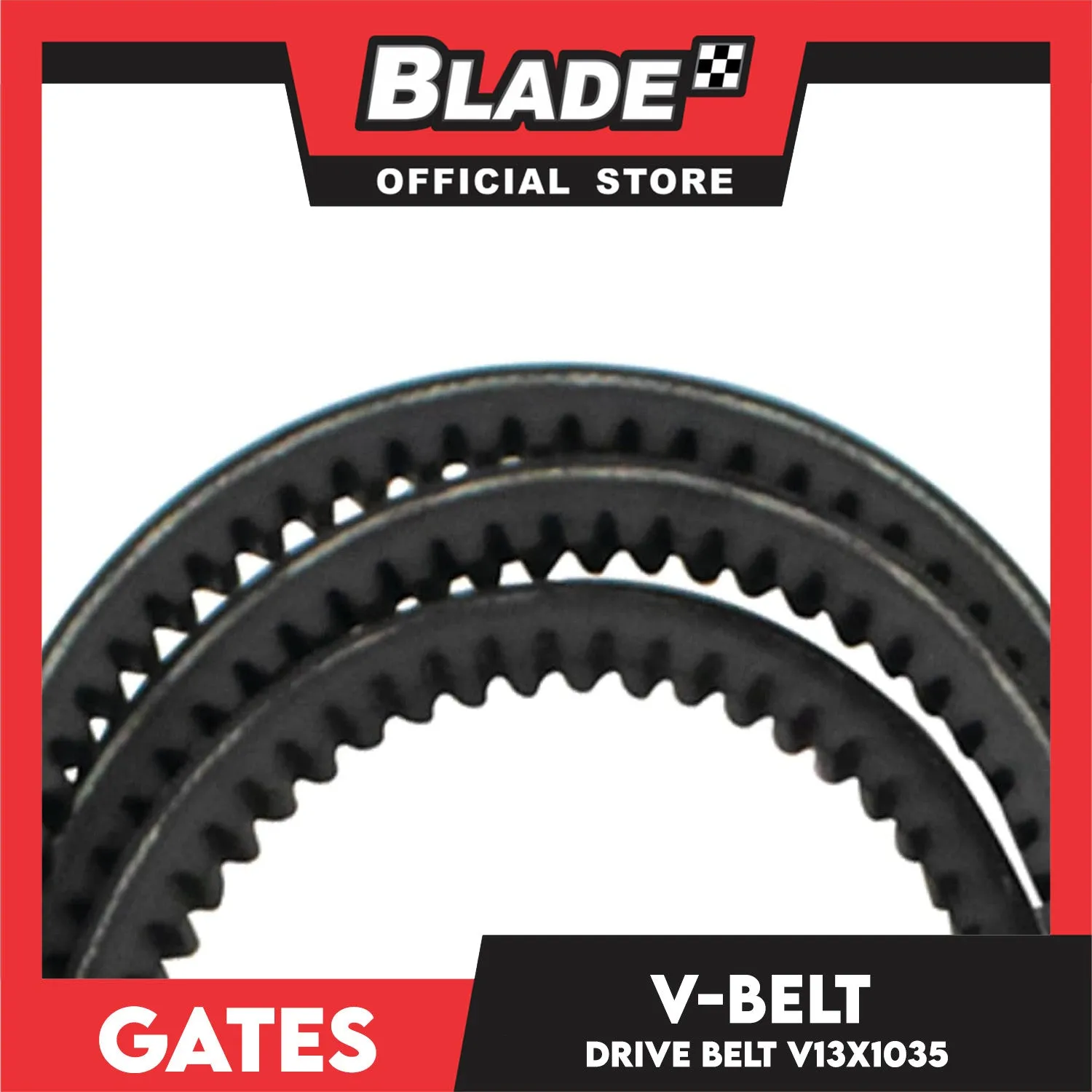

- V-Belt Extend

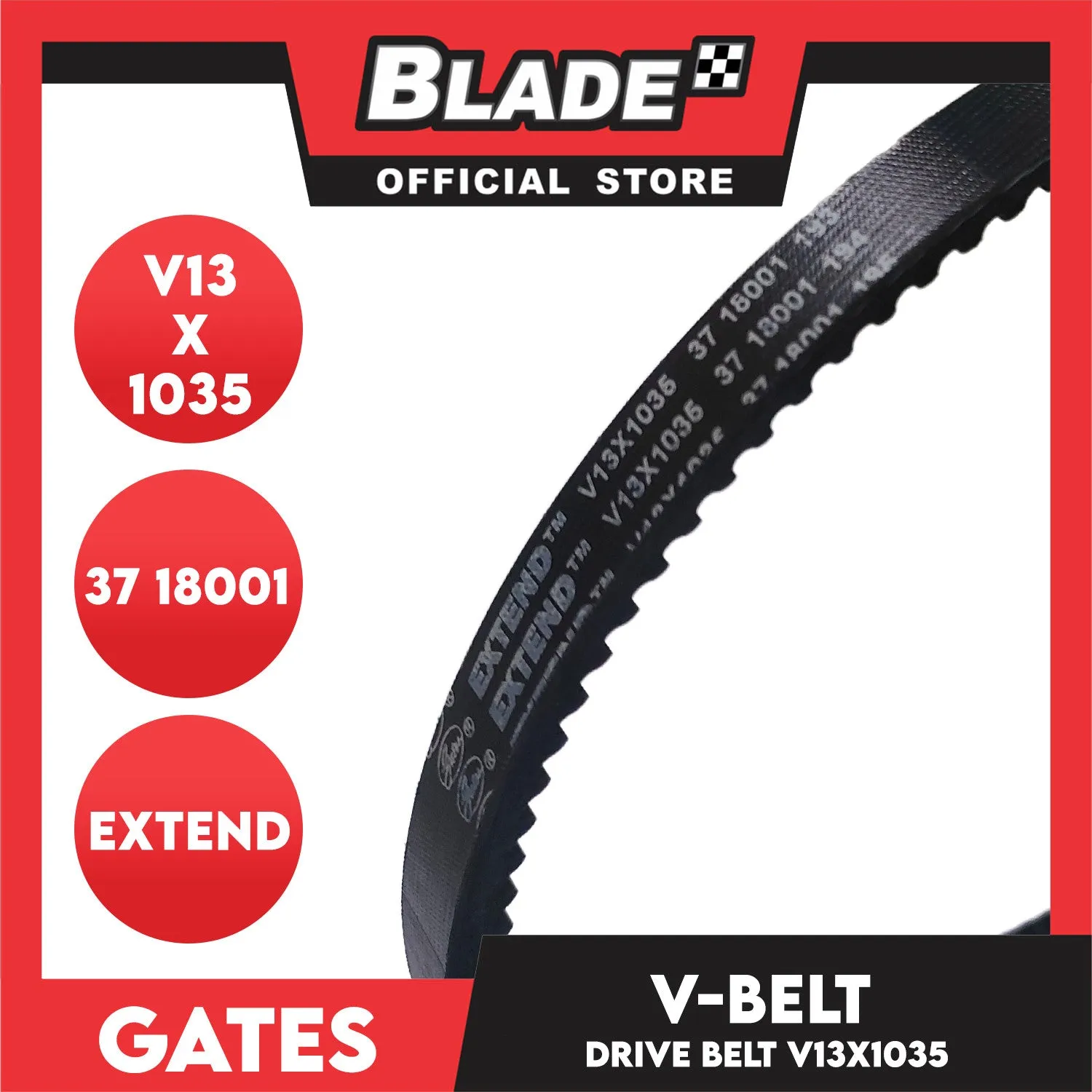

- Part No: V13X1035
- Material: Polychloropren (neoprene)
- Colour: Black
- Width (mm): 13
- Length (mm): 1035
- Outer Length (mm): 1043
- Rotation angle (°): 36
- Qty: 1pc
- Fibre loaded rubber material provides excellent heat and wear resistance.
- Molded notch construction provides reduced bending stresses around small pulleys.
- Form grinding provides a smooth contact point between the belt surface and the pulleys.
- Suitable with:
- TOYOTA
- KIJANG
- Petrol 1.8L/61KW 1.8 (KF72, KF80, KF82) 7K-E _F7_,_F8_ Rear-Wheel Drive MPV (01/00-05/04)
- Petrol 1.8L/58KW 1.8 (KF42, KF52) 7K _F4_,_F5_ Rear-Wheel Drive Bus (12/95-12/96)
- REVO
- Petrol 1.8L/69KW 1.8 (KF80, KF82) 7K-E _F7_,_F8_ Rear-Wheel Drive MPV (10/98-12/04)
- Caution:
- Before any service work on the belt is begun to be sure that the motor or engine is switched off and cannot be started.
- Important:
- Check for worn tensioners and idler pulleys. This is the best time to replace these part these parts if needed.
- Belt Removal:
- Loosen adjustment or pivot bolts.
- Move adjustment unit to minimum position.
- Remove belt.
- Belt Installation:
- Place new belt looseley on pulleys. Do not pry onto pulleys.
- Tension belt according to manufacturer's instruction.
- Run drive 5 minutes and retension. Belts must be tight enough to prevent slippingwhen drive is fully loaded.
