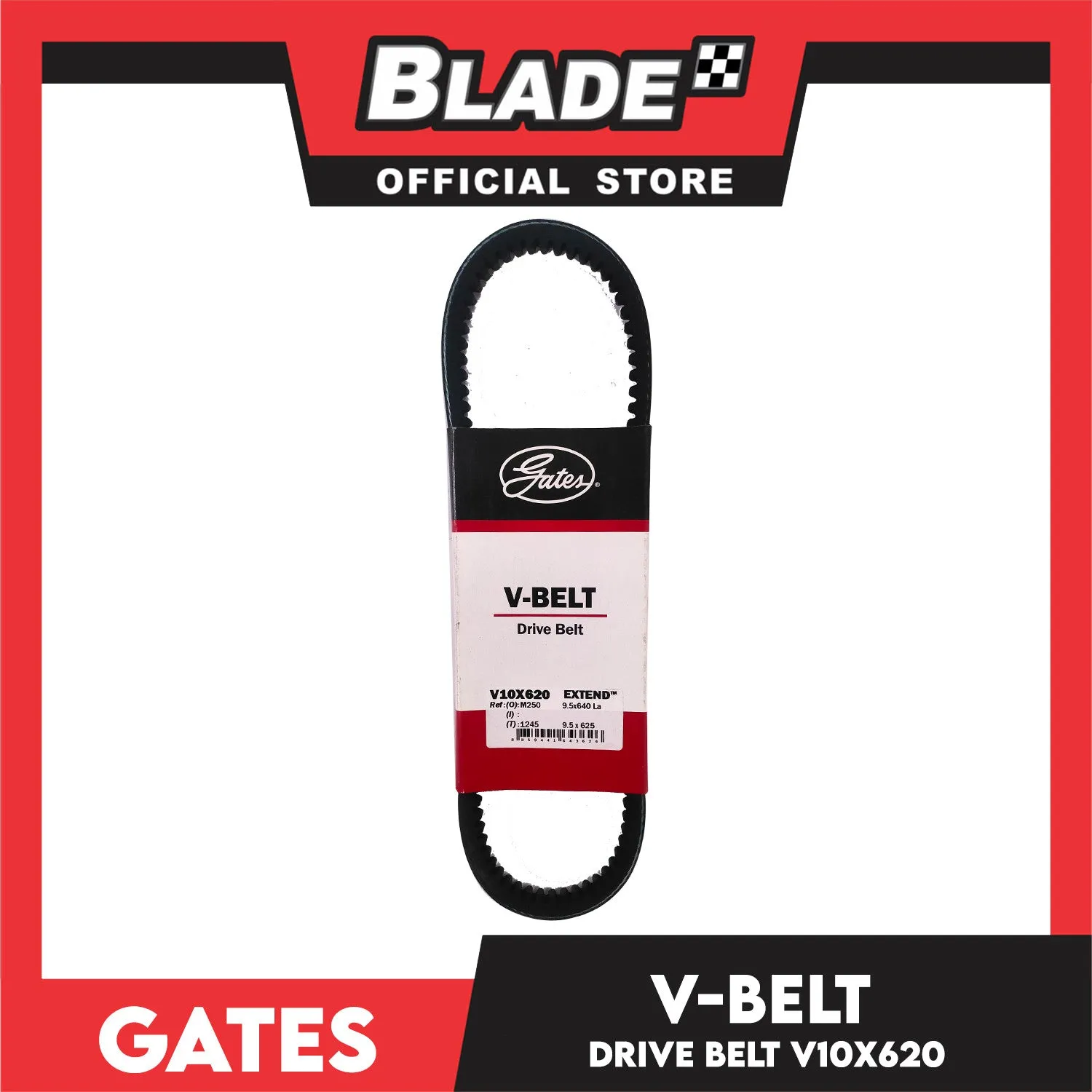

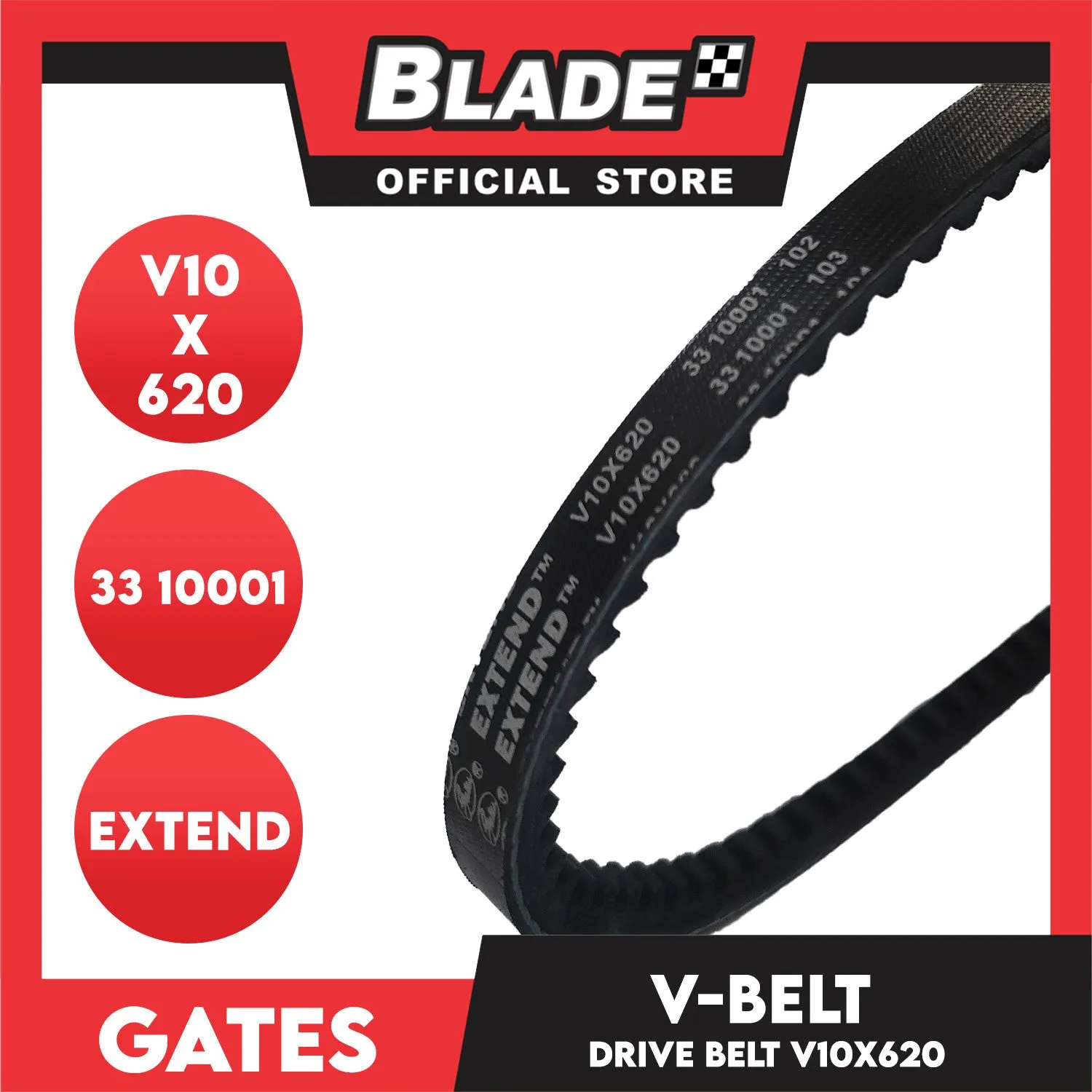

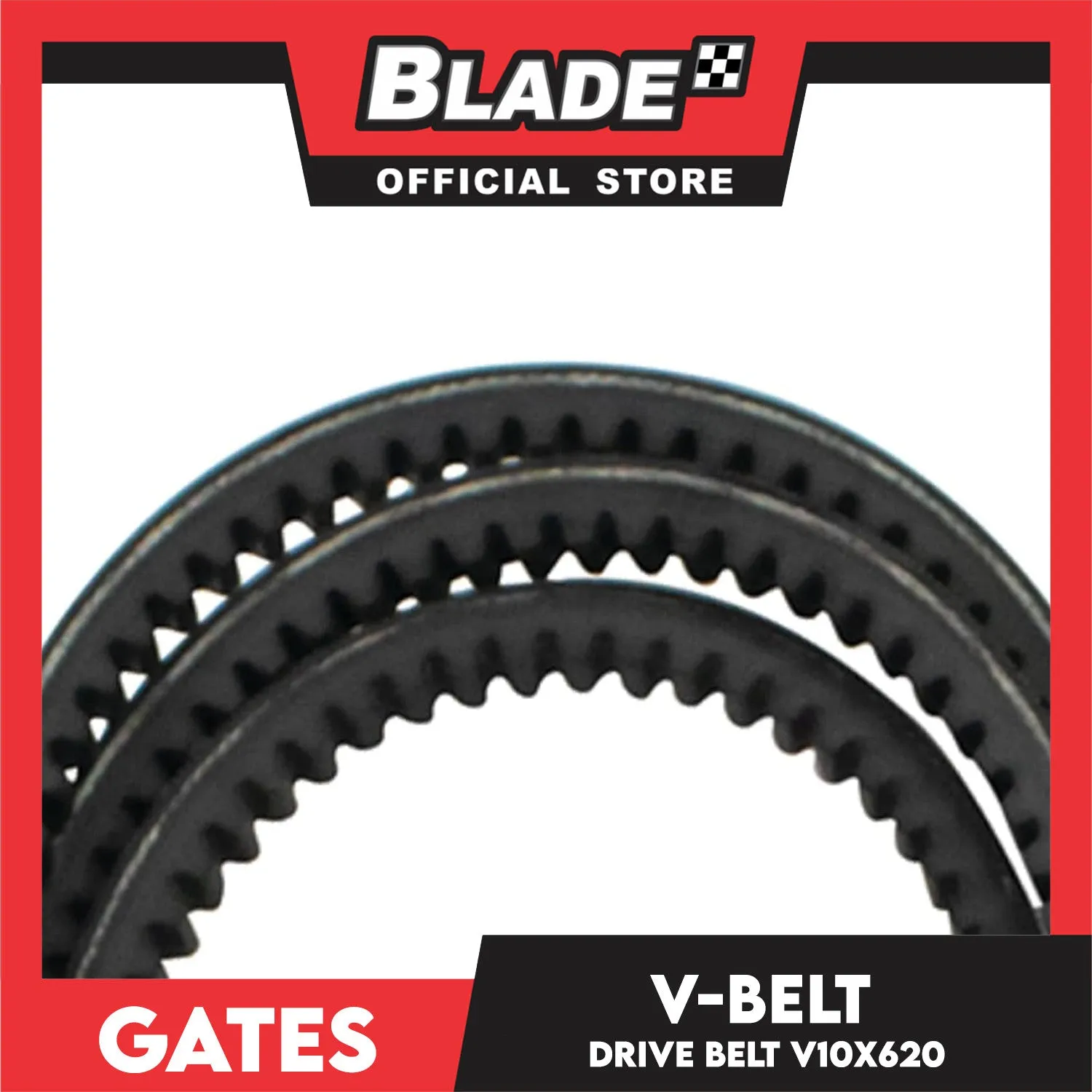

- V-Belt Extend
- Part No: V10X620
- Material: Polychloropren (neoprene)
- Colour: Black
- Width (mm): 10
- Length (mm): 620
- Outer Length (mm): 625
- Rotation angle (°): 36
- Qty: 1pc
- Fibre loaded rubber material provides excellent heat and wear resistance.
- Molded notch construction provides reduced bending stresses around small pulleys.
- Form grinding provides a smooth contact point between the belt surface and the pulleys.
- Caution:
- Before any service work on the belt is begun to be sure that the motor or engine is switched off and cannot be started.
- Important:
- Check for worn tensioners and idler pulleys. This is the best time to replace these part these parts if needed.
- Belt Removal:
- Loosen adjustment or pivot bolts.
- Move adjustment unit to minimum position.
- Remove belt.
- Belt Installation:
- Place new belt looseley on pulleys. Do not pry onto pulleys.
- Tension belt according to manufacturer's instruction.
- Run drive 5 minutes and retension. Belts must be tight enough to prevent slippingwhen drive is fully loaded.
- Reminders :
